| 制造商 | Cree |
| 描述 | Zero Recoverytm Rectifier. 600 Volt Schottky Rectifier |
| 页数 / 页 | 5 / 5 — CSD06060. Package Dimensions (Cont.). Package TO-263-2. Part Number. … |
| 文件格式/大小 | PDF / 217 Kb |
| 文件语言 | 英语 |
CSD06060. Package Dimensions (Cont.). Package TO-263-2. Part Number. Package. Marking
该数据表的模型线
文件文字版本

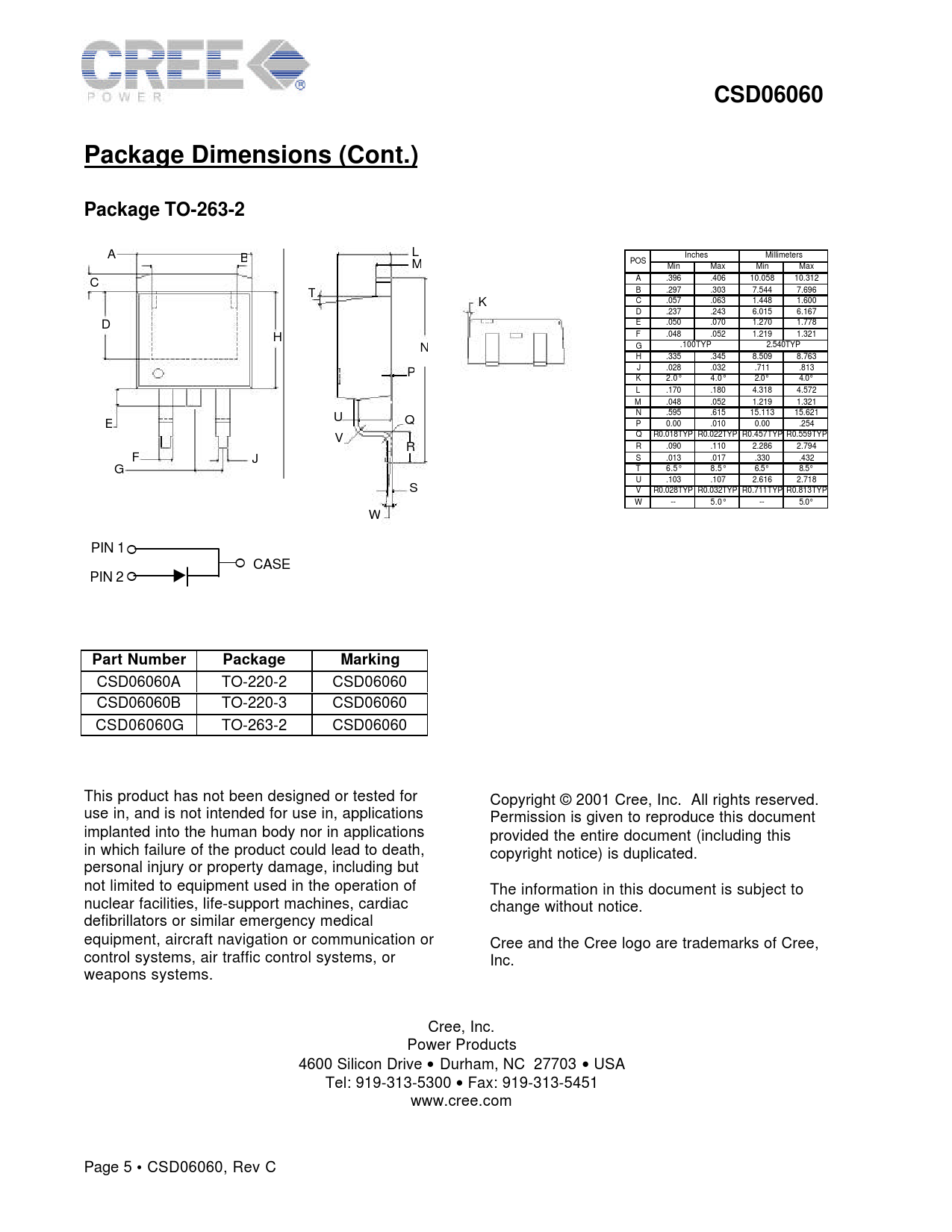

CSD06060 Package Dimensions (Cont.) Package TO-263-2
A B L Inches Millimeters M POS Min Max Min Max C A .396 .406 10.058 10.312 T B .297 .303 7.544 7.696 K C .057 .063 1.448 1.600 D .237 .243 6.015 6.167 D E .050 .070 1.270 1.778 H F .048 .052 1.219 1.321 N G .100TYP 2.540TYP H .335 .345 8.509 8.763 P J .028 .032 .711 .813 K 2.0° 4.0° 2.0° 4.0° L .170 .180 4.318 4.572 M .048 .052 1.219 1.321 U N .595 .615 15.113 15.621 E Q P 0.00 .010 0.00 .254 V Q R0.018TYP R0.022TYP R0.457TYP R0.559TYP R R .090 .110 2.286 2.794 F J S .013 .017 .330 .432 G T 6.5° 8.5° 6.5° 8.5° U .103 .107 2.616 2.718 S V R0.028TYP R0.032TYP R0.711TYP R0.813TYP W -- 5.0° -- 5.0° W PIN 1¡ ¡ CASE PIN 2 ¡
Part Number Package Marking
CSD06060A TO-220-2 CSD06060 CSD06060B TO-220-3 CSD06060 CSD06060G TO-263-2 CSD06060 This product has not been designed or tested for Copyright © 2001 Cree, Inc. All rights reserved. use in, and is not intended for use in, applications Permission is given to reproduce this document implanted into the human body nor in applications provided the entire document (including this in which failure of the product could lead to death, copyright notice) is duplicated. personal injury or property damage, including but not limited to equipment used in the operation of The information in this document is subject to nuclear facilities, life-support machines, cardiac change without notice. defibrillators or similar emergency medical equipment, aircraft navigation or communication or Cree and the Cree logo are trademarks of Cree, control systems, air traffic control systems, or Inc. weapons systems. Cree, Inc. Power Products 4600 Silicon Drive • Durham, NC 27703 • USA Tel: 919-313-5300 • Fax: 919-313-5451 www.cree.com Page 5 • CSD06060, Rev C
