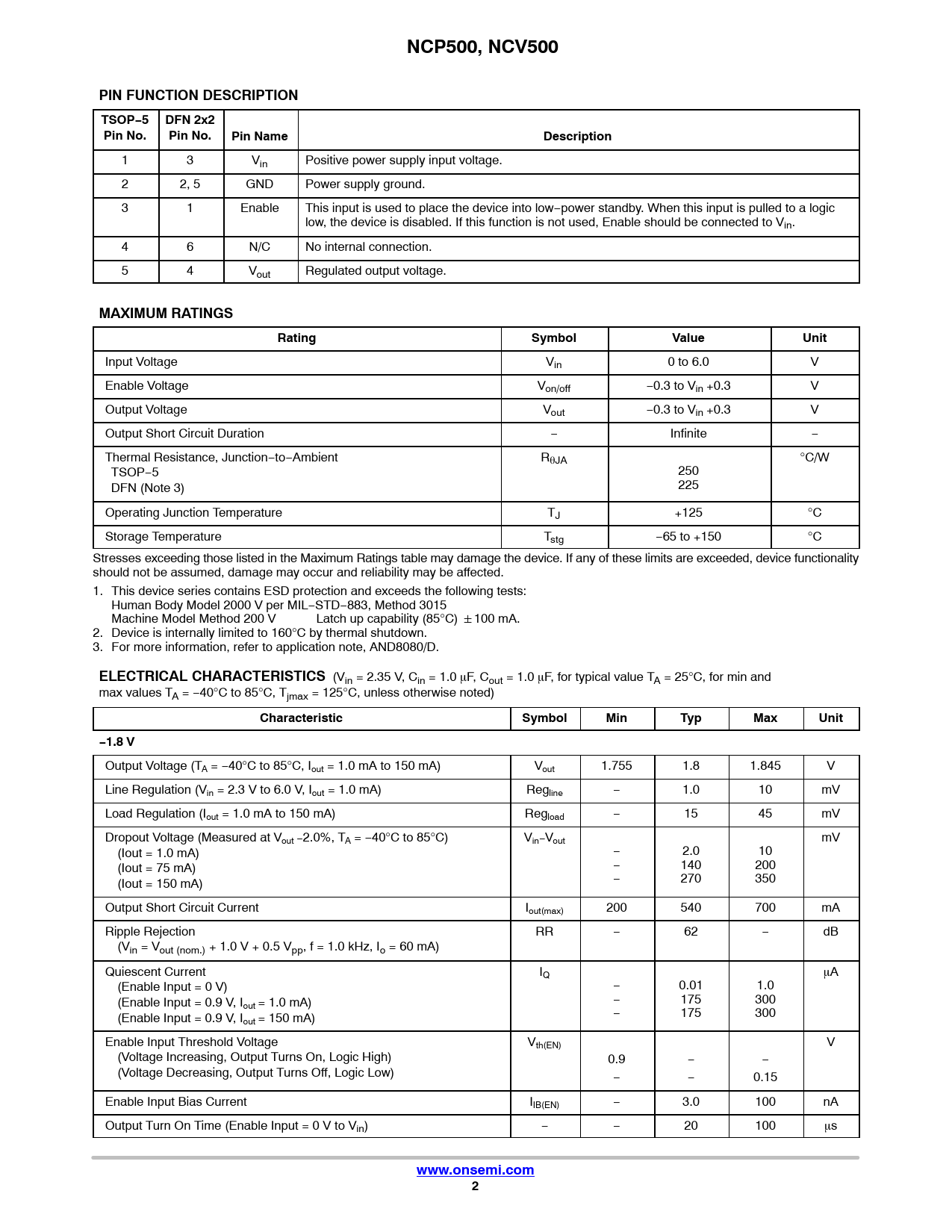

NCP500, NCV500 PIN FUNCTION DESCRIPTION
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁ
TSOP−5
ÁÁÁÁ
DFN 2x2
ÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Pin No. Pin No. Pin Name Description
ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ 1 3 Vin Positive power supply input voltage. ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁ 2 2, 5 GND Power supply ground. ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁ 3 1 Enable This input is used to place the device into low−power standby. When this input is pulled to a logic ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁ low, the device is disabled. If this function is not used, Enable should be connected to Vin. ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁ 4 6 N/C No internal connection. ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁ 5 4 Vout Regulated output voltage. ÁÁÁÁ ÁÁÁÁ ÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
MAXIMUM RATINGS Rating Symbol Value Unit
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ Input Voltage ÁÁÁÁÁÁ V ÁÁÁÁÁÁÁÁ in 0 to 6.0 ÁÁÁÁ V ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁ Enable Voltage ÁÁÁÁÁÁ V ÁÁÁÁÁÁÁÁ on/off −0.3 to Vin +0.3 V ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁ Output Voltage ÁÁÁÁÁÁ V ÁÁÁÁÁÁÁÁ out −0.3 to Vin +0.3 V ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁ Output Short Circuit Duration ÁÁÁÁÁÁ − ÁÁÁÁÁÁÁÁ Infinite − ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁ Thermal Resistance, Junction−to−Ambient RqJA °C/W TSOP−5 250 DFN (Note 3) 225 ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁ Operating Junction Temperature TJ +125 °C ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁ ÁÁÁÁ ÁÁÁÁÁÁÁÁ Storage Temperature Tstg −65 to +150 °C ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁ Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. This device series contains ESD protection and exceeds the following tests: Human Body Model 2000 V per MIL−STD−883, Method 3015 Machine Model Method 200 V Latch up capability (85°C) "100 mA. 2. Device is internally limited to 160°C by thermal shutdown. 3. For more information, refer to application note, AND8080/D.
ELECTRICAL CHARACTERISTICS
(Vin = 2.35 V, Cin = 1.0 mF, Cout = 1.0 mF, for typical value TA = 25°C, for min and max values TA = −40°C to 85°C, Tjmax = 125°C, unless otherwise noted)
Characteristic Symbol Min Typ Max Unit −1.8 V
Output Voltage (TA = −40°C to 85°C, Iout = 1.0 mA to 150 mA) Vout 1.755 1.8 1.845 V Line Regulation (Vin = 2.3 V to 6.0 V, Iout = 1.0 mA) Regline − 1.0 10 mV Load Regulation (Iout = 1.0 mA to 150 mA) Regload − 15 45 mV Dropout Voltage (Measured at Vout −2.0%, TA = −40°C to 85°C) Vin−Vout mV (Iout = 1.0 mA) − 2.0 10 (Iout = 75 mA) − 140 200 (Iout = 150 mA) − 270 350 Output Short Circuit Current Iout(max) 200 540 700 mA Ripple Rejection RR − 62 − dB (Vin = Vout (nom.) + 1.0 V + 0.5 Vpp, f = 1.0 kHz, Io = 60 mA) Quiescent Current IQ mA (Enable Input = 0 V) − 0.01 1.0 (Enable Input = 0.9 V, I − 175 300 out = 1.0 mA) (Enable Input = 0.9 V, I − 175 300 out = 150 mA) Enable Input Threshold Voltage Vth(EN) V (Voltage Increasing, Output Turns On, Logic High) 0.9 − − (Voltage Decreasing, Output Turns Off, Logic Low) − − 0.15 Enable Input Bias Current IIB(EN) − 3.0 100 nA Output Turn On Time (Enable Input = 0 V to Vin) − − 20 100 ms
www.onsemi.com 2
