Datasheet PMV20EN (Nexperia) - 2
| 制造商 | Nexperia |
| 描述 | 30 V, N-channel Trench MOSFET |
| 页数 / 页 | 15 / 2 — Nexperia. PMV20EN. 30 V, N-channel Trench MOSFET. 5. Pinning information. … |
| 修订版 | 05072018 |
| 文件格式/大小 | PDF / 324 Kb |
| 文件语言 | 英语 |
Nexperia. PMV20EN. 30 V, N-channel Trench MOSFET. 5. Pinning information. Table 2. Pinning information. Pin. Symbol Description
该数据表的模型线
文件文字版本
link to page 2

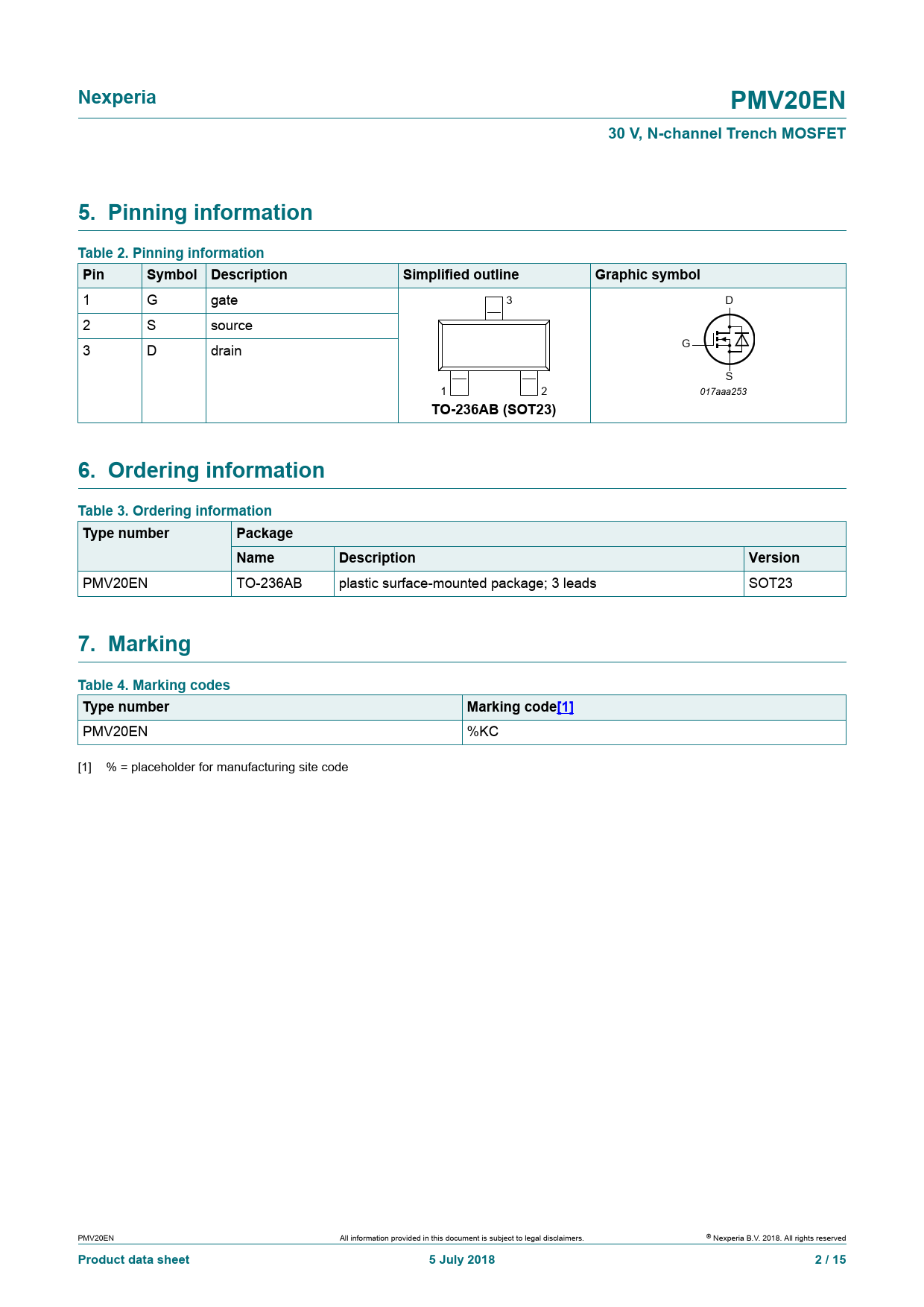

Nexperia PMV20EN 30 V, N-channel Trench MOSFET 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol
1 G gate 3 D 2 S source 3 D drain G S 1 2 017aaa253
TO-236AB (SOT23) 6. Ordering information Table 3. Ordering information Type number Package Name Description Version
PMV20EN TO-236AB plastic surface-mounted package; 3 leads SOT23
7. Marking Table 4. Marking codes Type number Marking code[1]
PMV20EN %KC [1] % = placeholder for manufacturing site code PMV20EN All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2018. Al rights reserved
Product data sheet 5 July 2018 2 / 15
Document Outline 1. General description 2. Features and benefits 3. Applications 4. Quick reference data 5. Pinning information 6. Ordering information 7. Marking 8. Limiting values 9. Thermal characteristics 10. Characteristics 11. Test information 12. Package outline 13. Soldering 14. Revision history 15. Legal information Contents
