Datasheet TSL257 (AustriaMicroSystems) - 7
| 制造商 | AustriaMicroSystems |
| 描述 | High-Sensitivity Light-to-Voltage Converter |
| 页数 / 页 | 17 / 7 — TSL257 −. Figure 8: Switching Characteristics at VDD = 5V, TA = 25°C, λp … |
| 文件格式/大小 | PDF / 344 Kb |
| 文件语言 | 英语 |

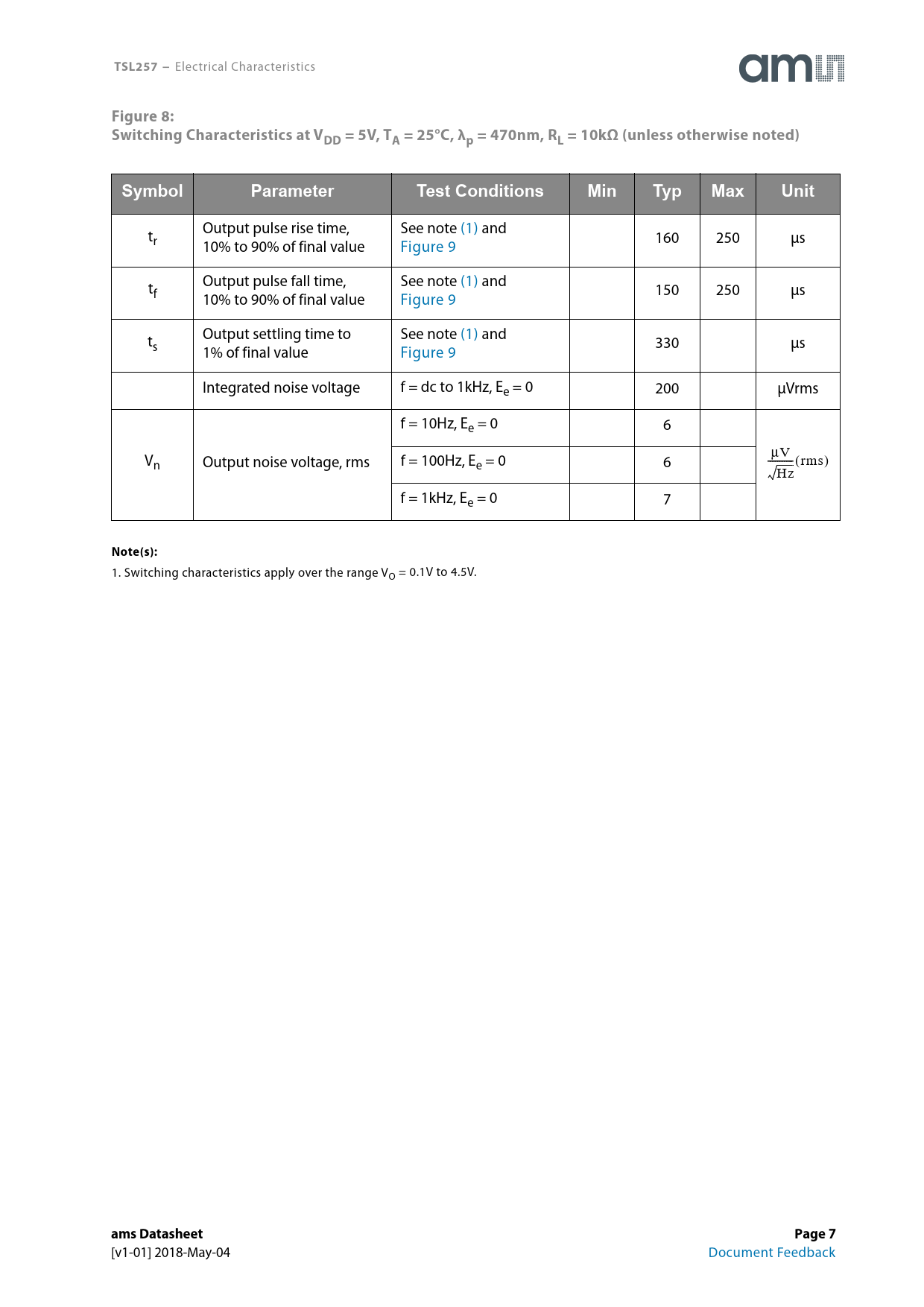

TSL257 −. Figure 8: Switching Characteristics at VDD = 5V, TA = 25°C, λp = 470nm, RL = 10kΩ (unless otherwise noted)
该数据表的模型线
文件文字版本
link to page 7 link to page 8 link to page 7 link to page 8 link to page 7 link to page 8
TSL257 −
Electrical Characteristics
Figure 8: Switching Characteristics at VDD = 5V, TA = 25°C, λp = 470nm, RL = 10kΩ (unless otherwise noted) Symbol Parameter Test Conditions Min Typ Max Unit
Output pulse rise time, See note (1) and tr 160 250 μs 10% to 90% of final value Figure 9 Output pulse fall time, See note (1) and tf 150 250 μs 10% to 90% of final value Figure 9 Output settling time to See note (1) and ts 330 μs 1% of final value Figure 9 Integrated noise voltage f = dc to 1kHz, Ee = 0 200 μVrms f = 10Hz, Ee = 0 6 μV V ------(rms n Output noise voltage, rms f = 100Hz, Ee = 0 6 ) Hz f = 1kHz, Ee = 0 7
Note(s):
1. Switching characteristics apply over the range VO = 0.1V to 4.5V.
ams Datasheet Page 7
