Datasheet PDS1040 (Diodes)

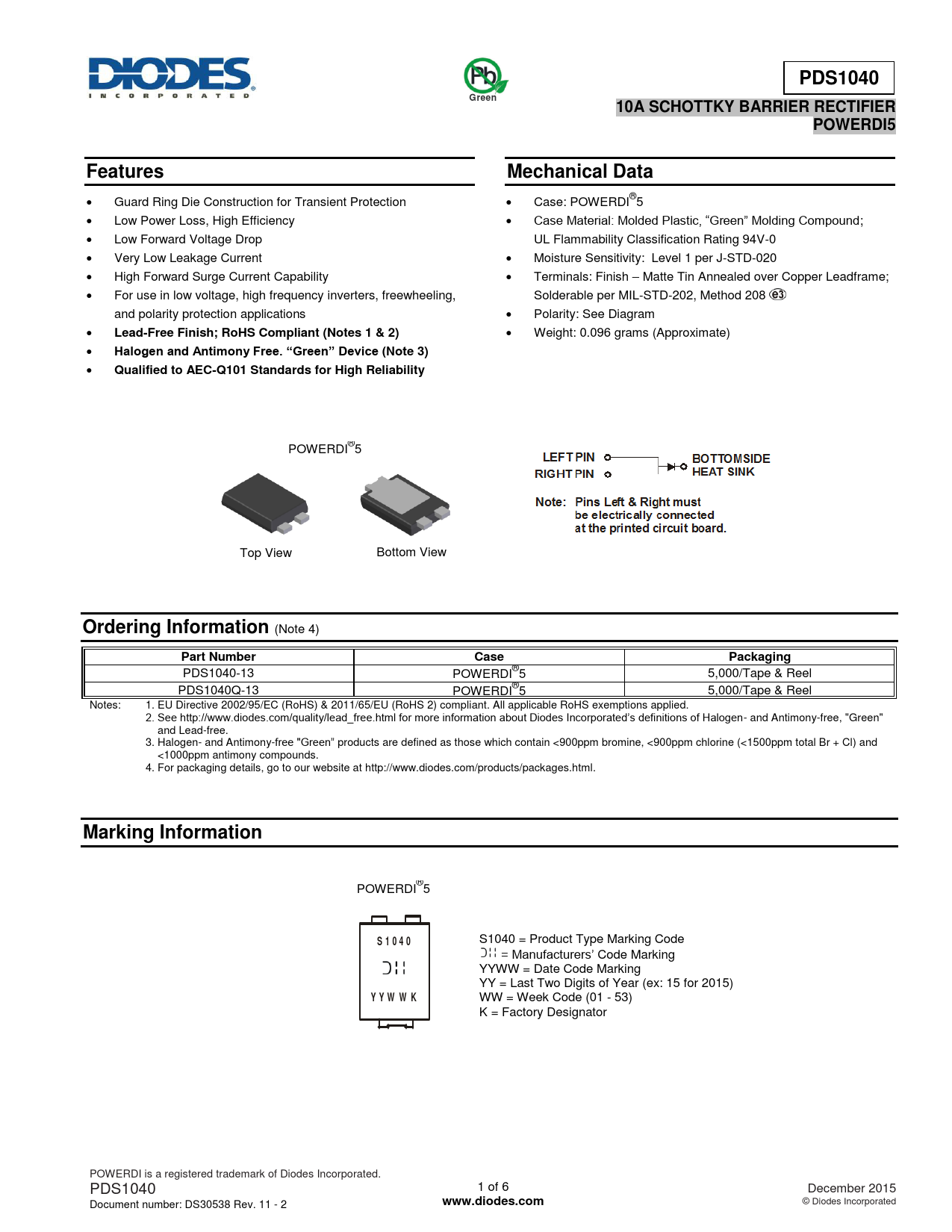

PDS1040 Green 10A SCHOTTKY BARRIER RECTIFIER POWERDI5 Features Mechanical Data
® Guard Ring Die Construction for Transient Protection Case: POWERDI 5 Low Power Loss, High Efficiency Case Material: Molded Plastic, “Green” Molding Compound; Low Forward Voltage Drop UL Flammability Classification Rating 94V-0 Very Low Leakage Current Moisture Sensitivity: Level 1 per J-STD-020 High Forward Surge Current Capability Terminals: Finish – Matte Tin Annealed over Copper Leadframe; For use in low voltage, high frequency inverters, freewheeling, Solderable per MIL-STD-202, Method 208 and polarity protection applications Polarity: See Diagram
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Weight: 0.096 grams (Approximate)
Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability
® POWERDI 5 Top View Bottom View
Ordering Information
(Note 4)
Part Number Case Packaging
PDS1040-13 ® POWERDI 5 5,000/Tape & Reel PDS1040Q-13 ® POWERDI 5 5,000/Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
® POWERDI 5
S 1 0 4 0
S1040 = Product Type Marking Code = Manufacturers’ Code Marking YYWW = Date Code Marking YY = Last Two Digits of Year (ex: 15 for 2015)
Y Y W W K
WW = Week Code (01 - 53) K = Factory Designator

POWERDI is a registered trademark of Diodes Incorporated. PDS1040 1 of 6 December 2015 Document number: DS30538 Rev. 11 - 2
www.diodes.com
© Diodes Incorporated
