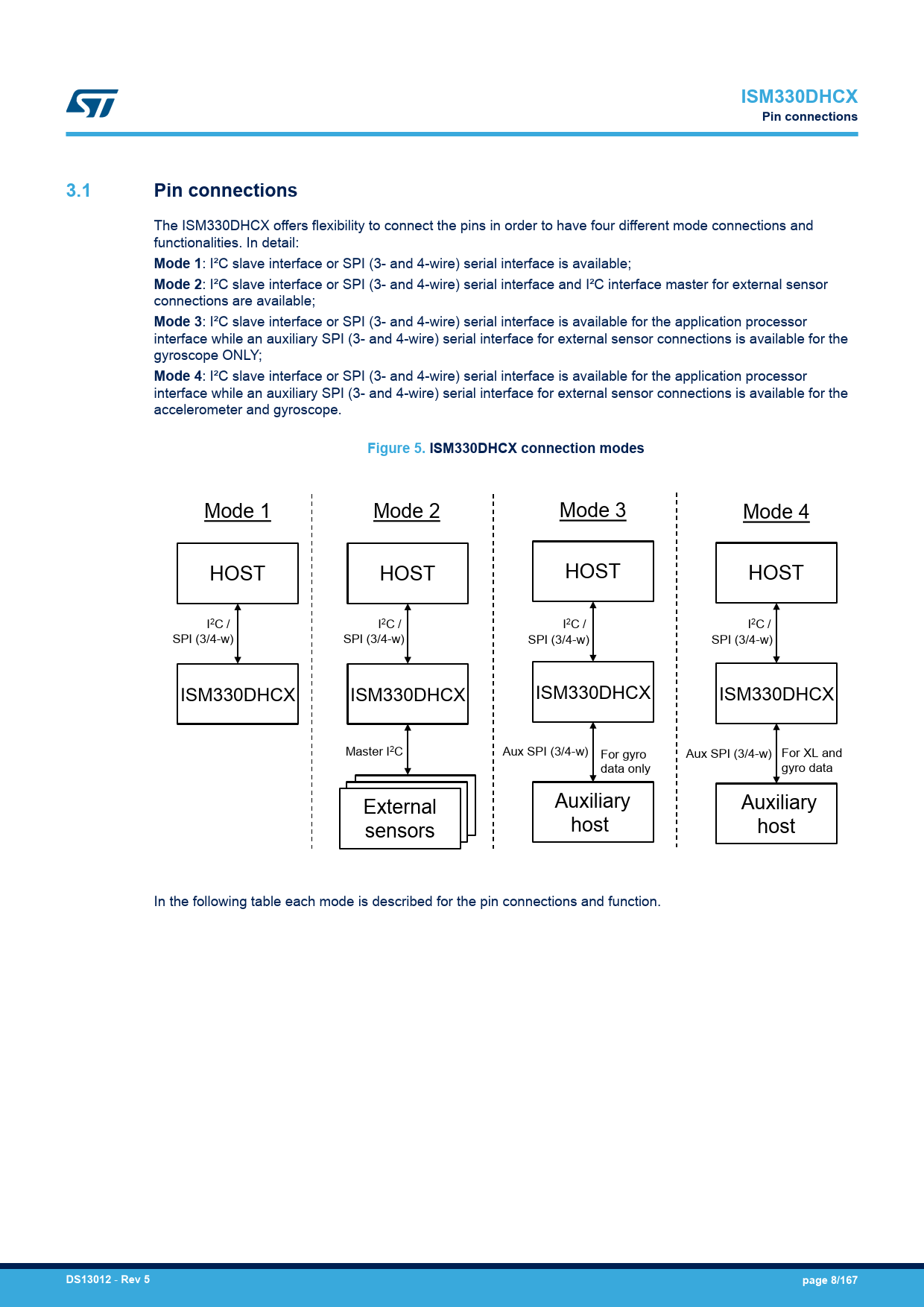

ISM330DHCX Pin connections 3.1 Pin connections
The ISM330DHCX offers flexibility to connect the pins in order to have four different mode connections and functionalities. In detail:
Mode 1
: I²C slave interface or SPI (3- and 4-wire) serial interface is available;
Mode 2
: I²C slave interface or SPI (3- and 4-wire) serial interface and I²C interface master for external sensor connections are available;
Mode 3
: I²C slave interface or SPI (3- and 4-wire) serial interface is available for the application processor interface while an auxiliary SPI (3- and 4-wire) serial interface for external sensor connections is available for the gyroscope ONLY;
Mode 4
: I²C slave interface or SPI (3- and 4-wire) serial interface is available for the application processor interface while an auxiliary SPI (3- and 4-wire) serial interface for external sensor connections is available for the accelerometer and gyroscope.
Figure 5. ISM330DHCX connection modes
Mode 1 Mode 2 Mode 3 Mode 4 HOST HOST HOST HOST I2C / I2C / I2C / I2C / SPI (3/4-w) SPI (3/4-w) SPI (3/4-w) SPI (3/4-w) ISM330DHCX ISM330DHCX ISM330DHCX ISM330DHCX Master I2C Aux SPI (3/4-w) For gyro Aux SPI (3/4-w) For XL and data only gyro data L ESM xte 6D rnaSM Auxiliary LSM6DSM l Auxiliary sensors host host In the following table each mode is described for the pin connections and function.
DS13012
-
Rev 5 page 8/167
