Datasheet ADT75 (Analog Devices)

制造商Analog Devices
描述±1°C Accurate, 12-Bit Digital Temperature Sensor
页数 / 页24 / 1 — ±1°C Accurate, 12-Bit Digital. Temperature Sensor. Data Sheet. ADT75. …
修订版B
文件格式/大小PDF / 353 Kb
文件语言英语

±1°C Accurate, 12-Bit Digital. Temperature Sensor. Data Sheet. ADT75. FEATURES. PRODUCT HIGHLIGHTS

Datasheet ADT75 Analog Devices, 修订版: B

该数据表的模型线

文件文字版本

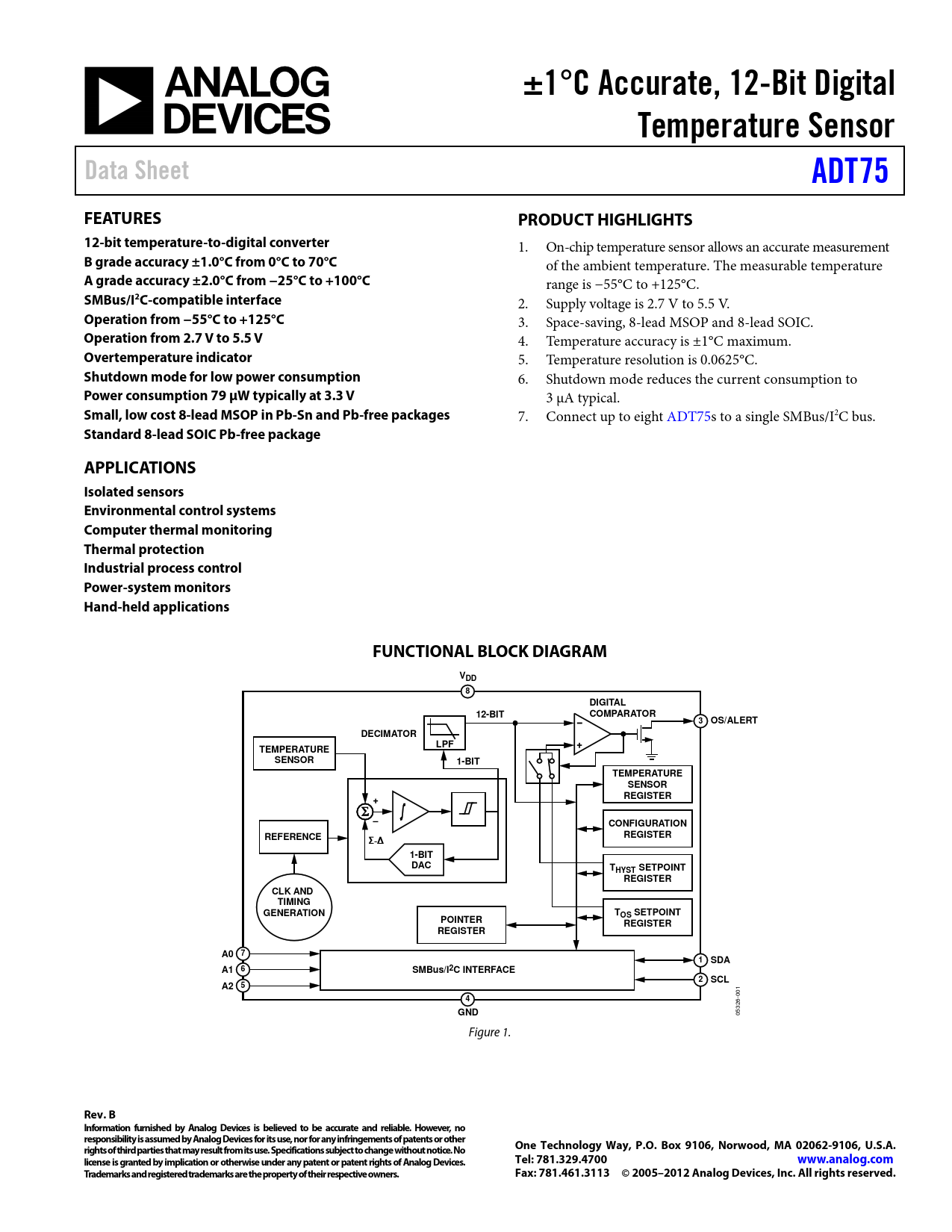

±1°C Accurate, 12-Bit Digital Temperature Sensor Data Sheet ADT75 FEATURES PRODUCT HIGHLIGHTS 12-bit temperature-to-digital converter
1. On-chip temperature sensor al ows an accurate measurement
B grade accuracy ±1.0°C from 0°C to 70°C
of the ambient temperature. The measurable temperature
A grade accuracy ±2.0°C from −25°C to +100°C
range is −55°C to +125°C.
SMBus/I2C-compatible interface
2. Supply voltage is 2.7 V to 5.5 V.
Operation from −55°C to +125°C
3. Space-saving, 8-lead MSOP and 8-lead SOIC.
Operation from 2.7 V to 5.5 V
4. Temperature accuracy is ±1°C maximum.
Overtemperature indicator
5. Temperature resolution is 0.0625°C.
Shutdown mode for low power consumption
6. Shutdown mode reduces the current consumption to
Power consumption 79 µW typically at 3.3 V
3 µA typical.
Small, low cost 8-lead MSOP in Pb-Sn and Pb-free packages
7. Connect up to eight ADT75s to a single SMBus/I2C bus.
Standard 8-lead SOIC Pb-free package APPLICATIONS Isolated sensors Environmental control systems Computer thermal monitoring Thermal protection Industrial process control Power-system monitors Hand-held applications FUNCTIONAL BLOCK DIAGRAM VDD 8 DIGITAL 12-BIT COMPARATOR 3 OS/ALERT DECIMATOR LPF TEMPERATURE SENSOR 1-BIT TEMPERATURE SENSOR REGISTER + CONFIGURATION REFERENCE Σ-Δ REGISTER 1-BIT DAC THYST SETPOINT REGISTER CLK AND TIMING GENERATION TOS SETPOINT POINTER REGISTER REGISTER A0 7 1 SDA A1 6 SMBus/I2C INTERFACE 2 SCL A2 5
001
4 GND
05326- Figure 1.
Rev. B Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 © 2005–2012 Analog Devices, Inc. All rights reserved.
Document Outline Features Applications Product Highlights Functional Block Diagram Table of Contents Revision History General Description Specifications A Grade B Grade Timing Specifications and Diagram Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Circuit Information Converter Details Functional Description Temperature Data Format Temperature Conversion Formulas One-Shot Mode Fault Queue Registers Address Pointer Register Temperature Value Register Configuration Register THYST Setpoint Register TOS Setpoint Register Serial Interface Serial Bus Address Writing Data Writing to the Address Pointer Register for a Subsequent Read Writing Data to a Register Reading Data OS/Alert Output OverTemperature Modes Comparator Mode Interrupt Mode SMBus Alert Applications Information Thermal Response Time Self-Heating Effects Supply Decoupling Temperature Monitoring Outline Dimensions Ordering Guide
