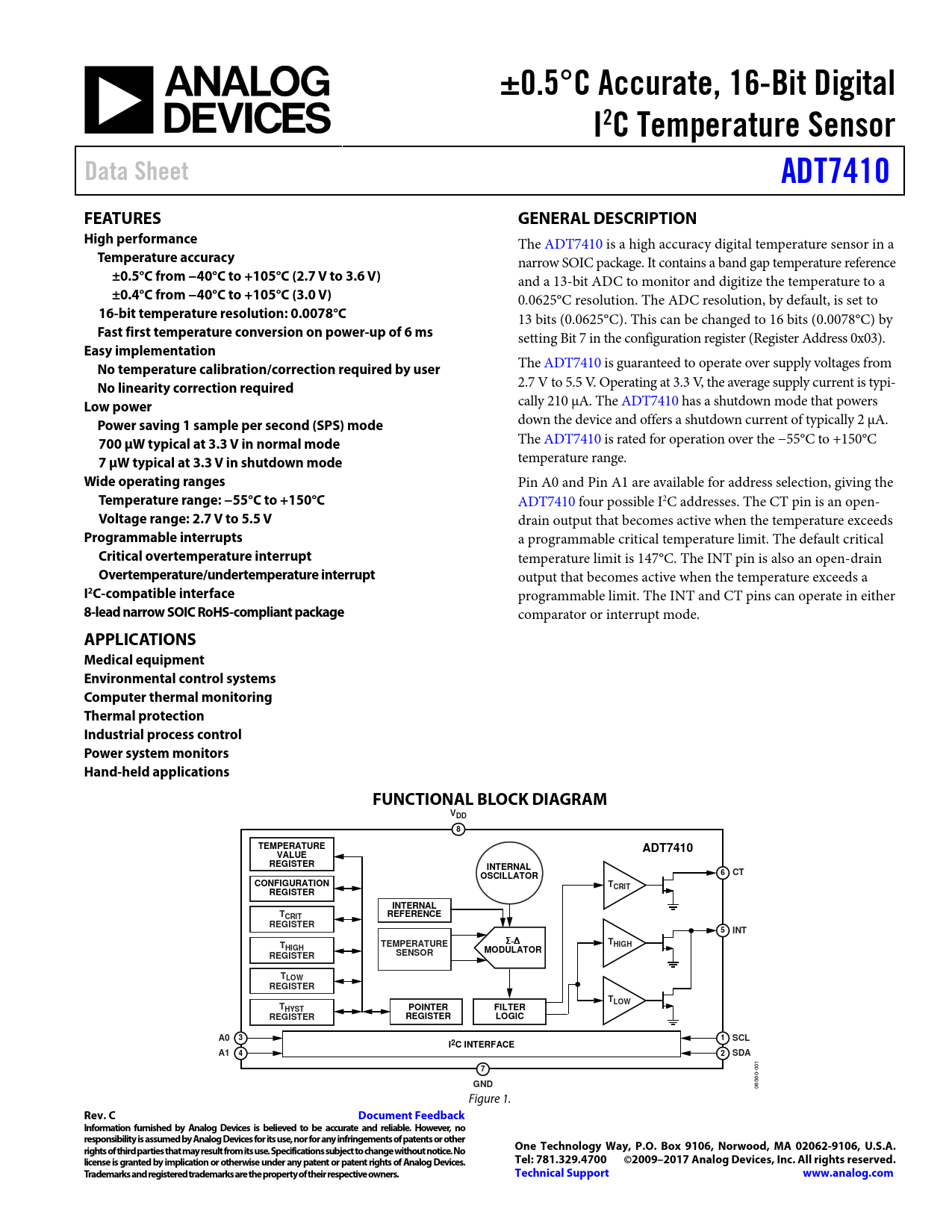

±0.5°C Accurate, 16-Bit Digital I2C Temperature Sensor Data Sheet ADT7410 FEATURES GENERAL DESCRIPTION High performance
The ADT7410 is a high accuracy digital temperature sensor in a
Temperature accuracy
narrow SOIC package. It contains a band gap temperature reference
±0.5°C from −40°C to +105°C (2.7 V to 3.6 V)
and a 13-bit ADC to monitor and digitize the temperature to a
±0.4°C from −40°C to +105°C (3.0 V)
0.0625°C resolution. The ADC resolution, by default, is set to
16-bit temperature resolution: 0.0078°C
13 bits (0.0625°C). This can be changed to 16 bits (0.0078°C) by
Fast first temperature conversion on power-up of 6 ms
setting Bit 7 in the configuration register (Register Address 0x03).
Easy implementation No temperature calibration/correction required by user
The ADT7410 is guaranteed to operate over supply voltages from
No linearity correction required
2.7 V to 5.5 V. Operating at 3.3 V, the average supply current is typi-
Low power
cal y 210 μA. The ADT7410 has a shutdown mode that powers
Power saving 1 sample per second (SPS) mode
down the device and offers a shutdown current of typical y 2 μA.
700 µW typical at 3.3 V in normal mode
The ADT7410 is rated for operation over the −55°C to +150°C
7 µW typical at 3.3 V in shutdown mode
temperature range.
Wide operating ranges
Pin A0 and Pin A1 are available for address selection, giving the
Temperature range: −55°C to +150°C
ADT7410 four possible I2C addresses. The CT pin is an open-
Voltage range: 2.7 V to 5.5 V
drain output that becomes active when the temperature exceeds
Programmable interrupts
a programmable critical temperature limit. The default critical
Critical overtemperature interrupt
temperature limit is 147°C. The INT pin is also an open-drain
Overtemperature/undertemperature interrupt
output that becomes active when the temperature exceeds a
I2C-compatible interface
programmable limit. The INT and CT pins can operate in either
8-lead narrow SOIC RoHS-compliant package
comparator or interrupt mode.
APPLICATIONS Medical equipment Environmental control systems Computer thermal monitoring Thermal protection Industrial process control Power system monitors Hand-held applications FUNCTIONAL BLOCK DIAGRAM VDD 8 TEMPERATURE ADT7410 VALUE REGISTER INTERNAL OSCILLATOR 6 CT CONFIGURATION TCRIT REGISTER INTERNAL TCRIT REFERENCE REGISTER 5 INT Σ-Δ T TEMPERATURE T HIGH HIGH MODULATOR REGISTER SENSOR TLOW REGISTER TLOW THYST POINTER FILTER REGISTER REGISTER LOGIC A0 3 1 SCL I2C INTERFACE A1 4 2 SDA 7
001
GND
06560- Figure 1.
