TYPICAL PERFORMANCE CHARACTERISTICS. Transient Response; 300mA. (Burst Mode Operation) to 1.3A. Transient. to 1.3A Transient
文件文字版本
LT8645S-2

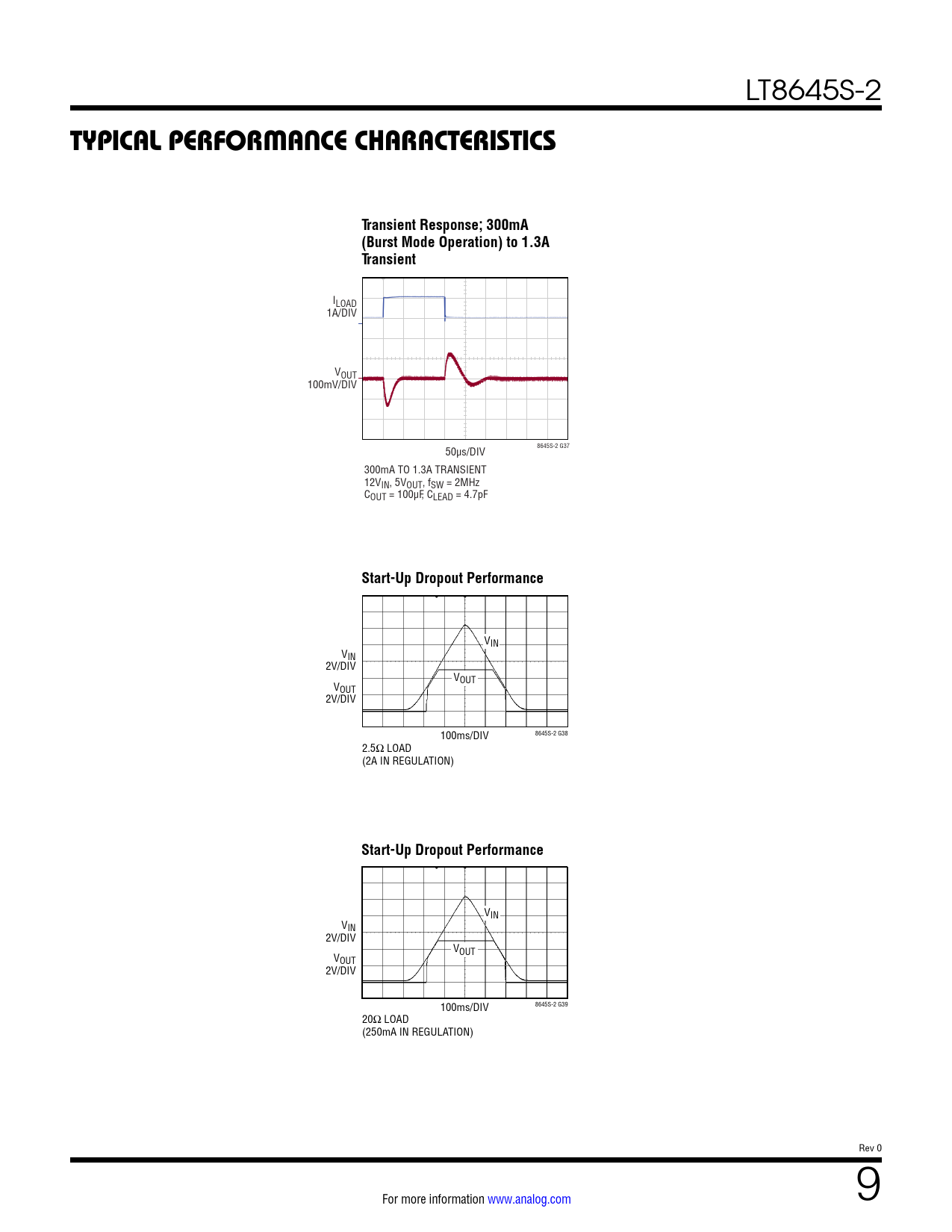

TYPICAL PERFORMANCE CHARACTERISTICS Transient Response; 300mA (Burst Mode Operation) to 1.3A Transient to 1.3A Transient
ILOAD 1A/DIV VOUT 100mV/DIV 50µs/DIV 8645S-2 G37 300mA TO 1.3A TRANSIENT 12VIN, 5VOUT, fSW = 2MHz COUT = 100µF, CLEAD = 4.7pF
Start-Up Dropout Performance
VIN VIN 2V/DIV V V OUT OUT 2V/DIV 100ms/DIV 8645S-2 G38 2.5Ω LOAD (2A IN REGULATION)
Start-Up Dropout Performance
VIN VIN 2V/DIV V V OUT OUT 2V/DIV 100ms/DIV 8645S-2 G39 20Ω LOAD (250mA IN REGULATION) Rev 0 For more information www.analog.com 9 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Typical Applications Related Parts
