IR 888 OptiMOS™ IPOL. 25 A single-voltage synchronous Buck regulator. Typical application diagram
该数据表的模型线
文件文字版本
IR 888 OptiMOS™ IPOL 25 A single-voltage synchronous Buck regulator Typical application diagram 3 Typical application diagram
4.3V<Vin< 17V Enable Enable Vin PVin Boot Vcc/LDO Vo SW Cff NC PGood Fb PGood IR3888 RFB1 RFB2 SS/Latch VSENM TON/MODE RFB2 ILIM VSNS AGnd RFB1 PGnd

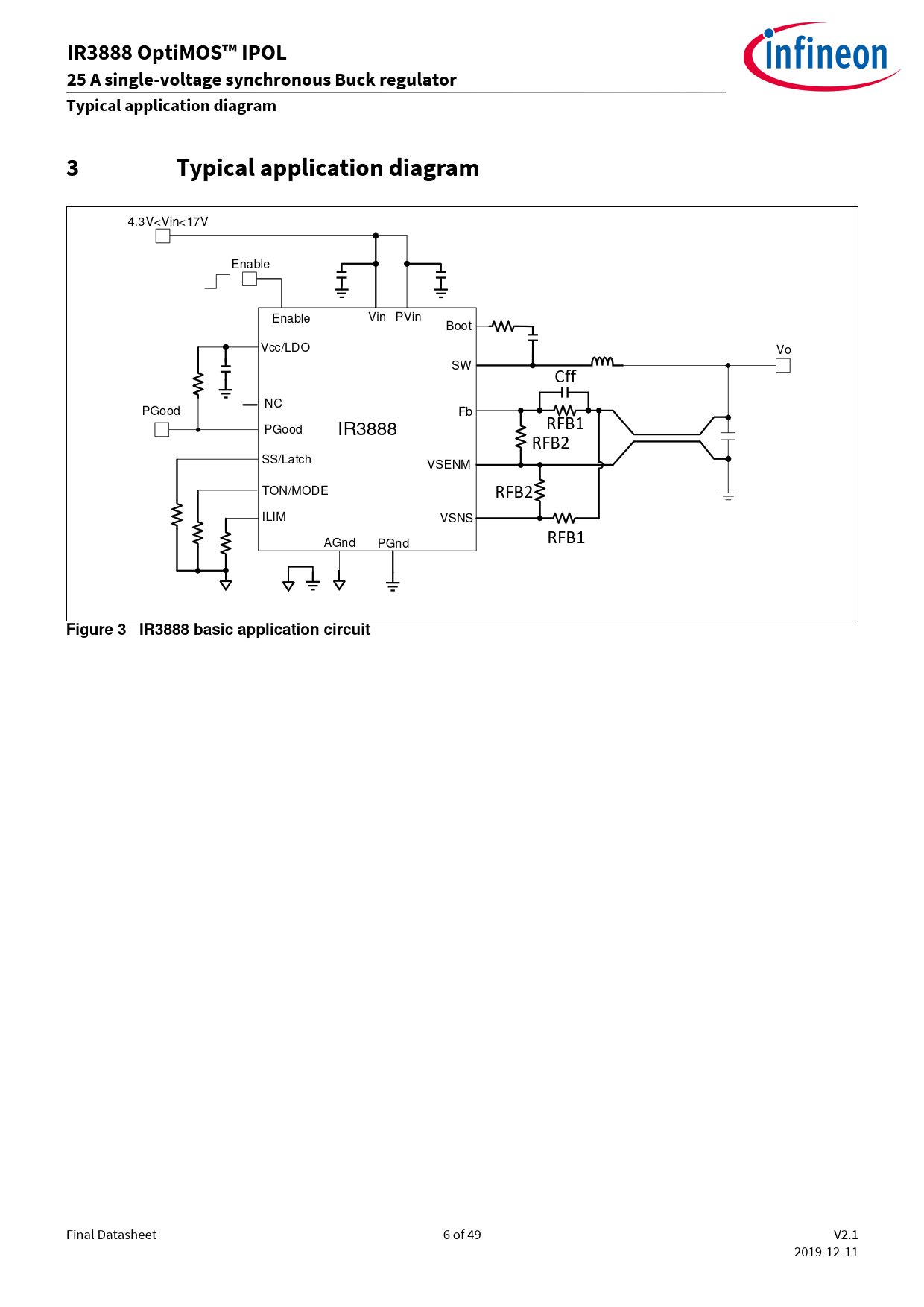

Figure 3 IR3888 basic application circuit
