| 描述 | Very-Low-Power Two-Output PCIe Clock Buffer With On-Chip Termination |
| 页数 / 页 | 20 / 1 — Lead-free Green. PI6CB33201. Very-Low-Power Two-Output PCIe Clock Buffer … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
Lead-free Green. PI6CB33201. Very-Low-Power Two-Output PCIe Clock Buffer With On-Chip Termination. Features. Description
该数据表的模型线
文件文字版本
A product Line of
b P
Diodes Incorporated

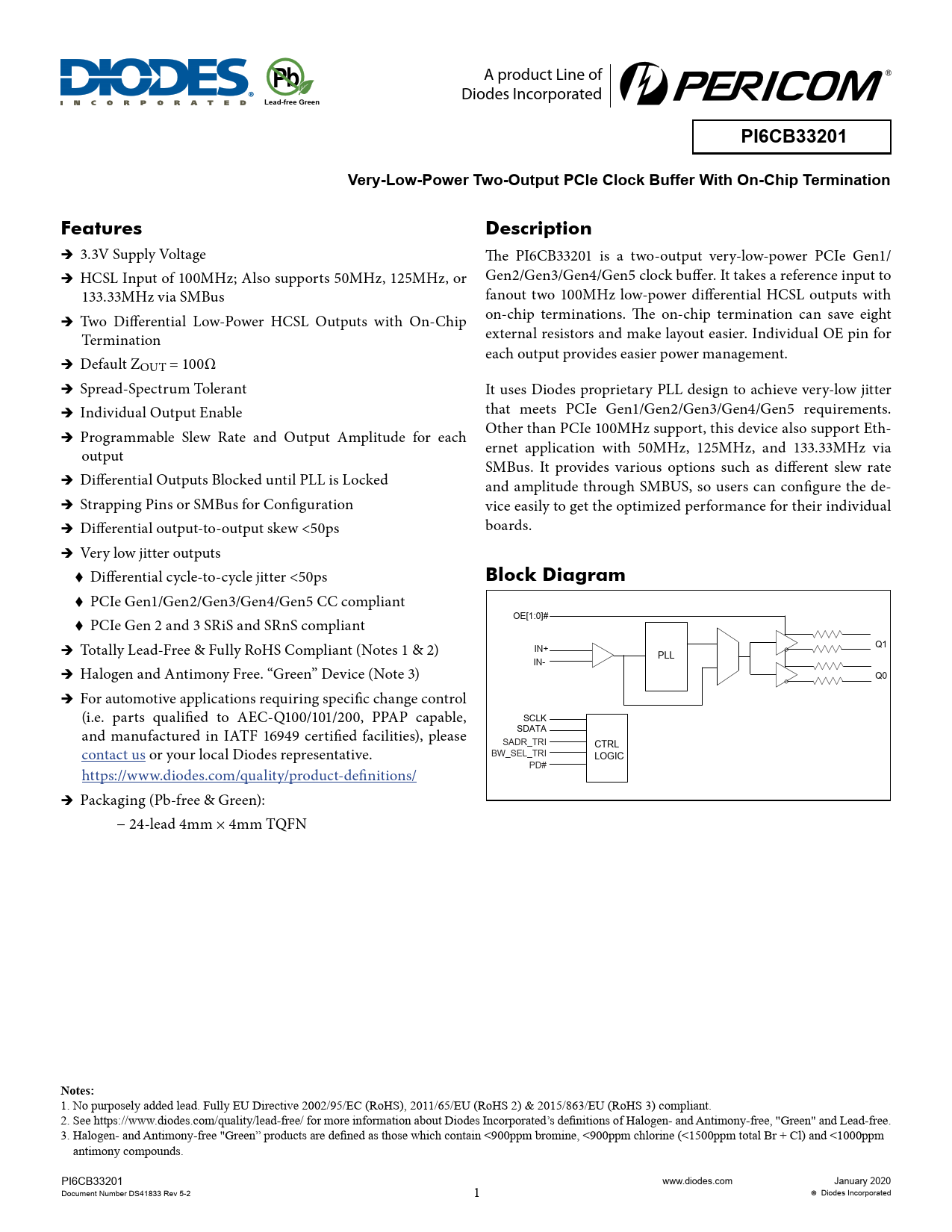

Lead-free Green PI6CB33201 Very-Low-Power Two-Output PCIe Clock Buffer With On-Chip Termination Features Description
Î Î 3.3V Supply Voltage The PI6CB33201 is a two-output very-low-power PCIe Gen1/ Î Î HCSL Input of 100MHz; Also supports 50MHz, 125MHz, or Gen2/Gen3/Gen4/Gen5 clock buffer. It takes a reference input to 133.33MHz via SMBus fanout two 100MHz low-power differential HCSL outputs with on-chip terminations. The on-chip termination can save eight Î Î Two Differential Low-Power HCSL Outputs with On-Chip Termination external resistors and make layout easier. Individual OE pin for each output provides easier power management. Î Î Default ZOUT = 100Ω Î Î Spread-Spectrum Tolerant It uses Diodes proprietary PLL design to achieve very-low jitter Î Î Individual Output Enable that meets PCIe Gen1/Gen2/Gen3/Gen4/Gen5 requirements. Other than PCIe 100MHz support, this device also support Eth- Î Î Programmable Slew Rate and Output Amplitude for each output ernet application with 50MHz, 125MHz, and 133.33MHz via SMBus. It provides various options such as different slew rate Î Î Differential Outputs Blocked until PLL is Locked and amplitude through SMBUS, so users can configure the de- Î Î Strapping Pins or SMBus for Configuration vice easily to get the optimized performance for their individual Î Î Differential output-to-output skew <50ps boards. Î Î Very low jitter outputs Î Differential cycle-to-cycle jitter <50ps
Block Diagram
Î PCIe Gen1/Gen2/Gen3/Gen4/Gen5 CC compliant OE[1:0]# Î PCIe Gen 2 and 3 SRiS and SRnS compliant Î Î Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) IN+ Q1 PLL IN- Î Î Halogen and Antimony Free. “Green” Device (Note 3) Q0 Î Î For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, SCLK and manufactured in IATF 16949 certified facilities), please SDATA SADR_TRI contact us or your local Diodes representative. CTRL BW_SEL_TRI LOGIC https://www.diodes.com/quality/product-definitions/ PD# Î Î Packaging (Pb-free & Green): − 24-lead 4mm × 4mm TQFN
