Forced Frequency Resonant Flyback controller Functional Description
VVCC(t)
Initial startup and normal operation
VVCCon = 20.5 V

VCC brown-in window

VVCCSS VVCCBI = 9.1 V

VCC self supply takes over VVCCoffOP = 7.2 V

t VHV(t)

ca. 1.2ms internal boot sequence VVACpeak

VAC brown-in condition fulfil ed

t I

VCC(t) Start of GD0 switching IVCCop

IVCCop1 = 7.5 mA

IVCCUVOFF = 30 µA t

TYPICAL STARTUP SEQUENCE

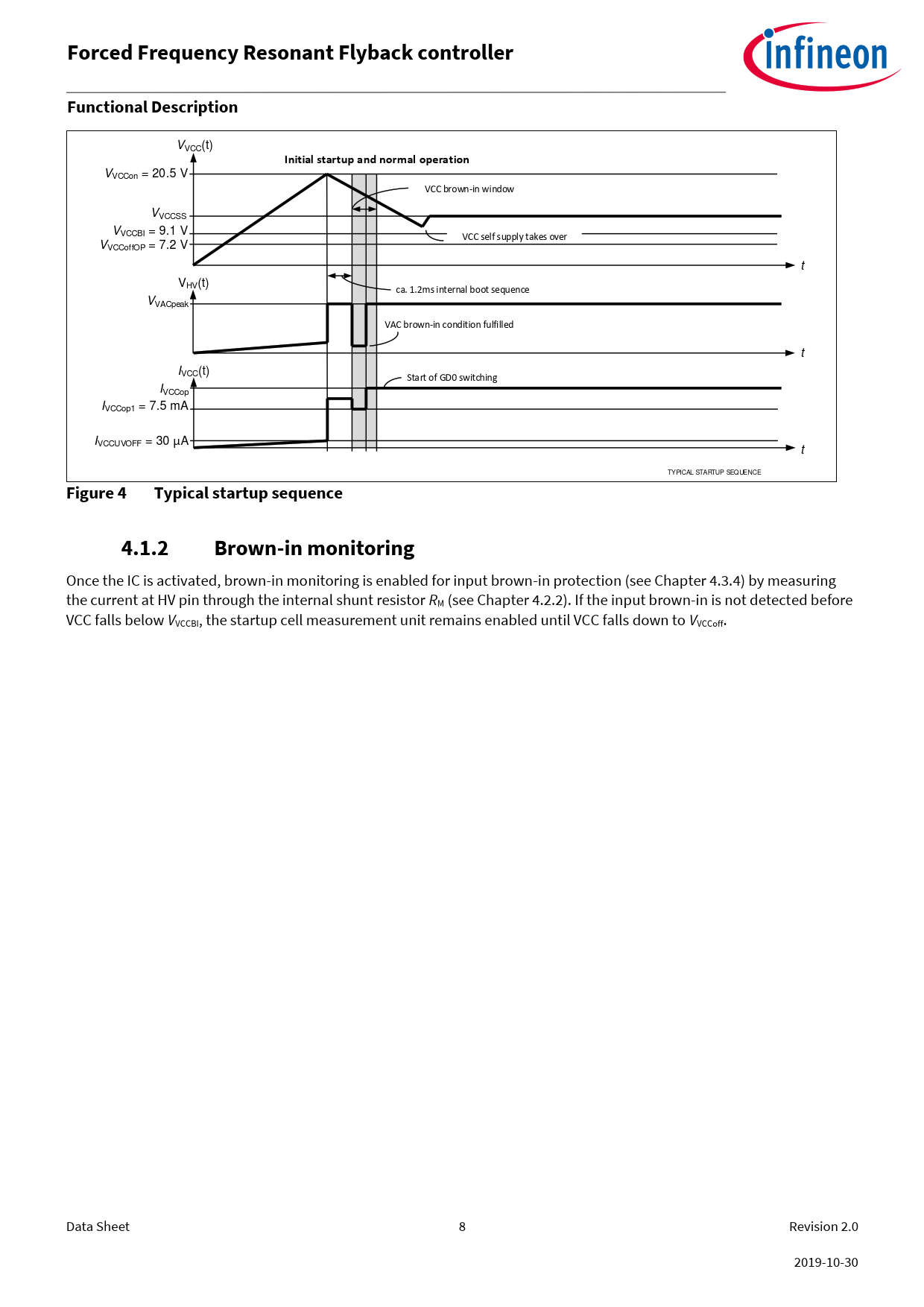

Figure 4 Typical startup sequence 4.1.2 Brown-in monitoring
Once the IC is activated, brown-in monitoring is enabled for input brown-in protection (see Chapter 4.3.4) by measuring the current at HV pin through the internal shunt resistor RM (see Chapter 4.2.2). If the input brown-in is not detected before VCC falls below VVCCBI, the startup cell measurement unit remains enabled until VCC falls down to VVCCoff. Data Sheet 8 Revision 2.0 2019-10-30
