PT7C4563BQ. 2. Control and Status Register. a) Alarm Interrupt. AIE:. AF:. b) SQW Control. SQWE:. RS1, RS0:. www.diodes.com
该数据表的模型线
文件文字版本

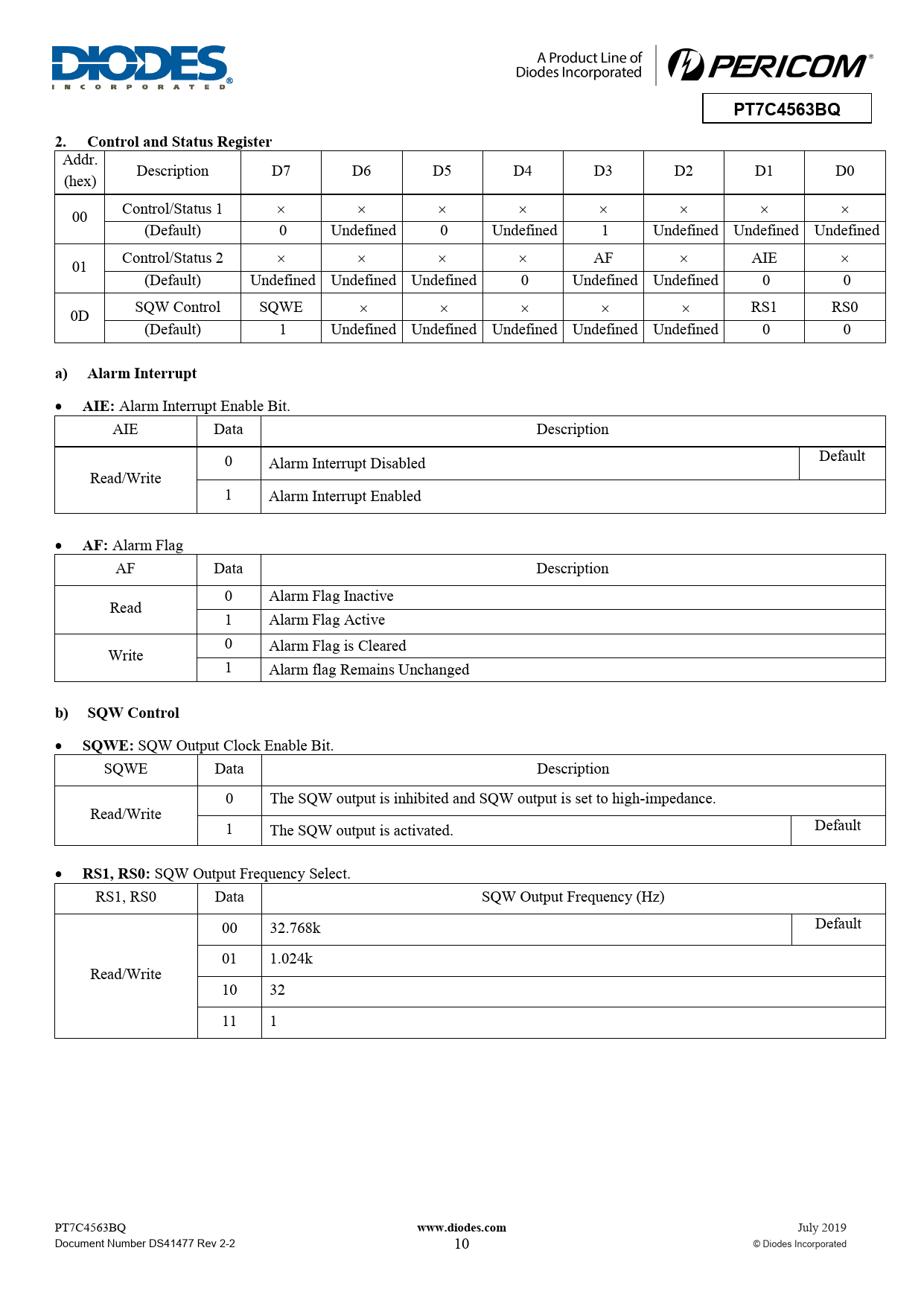

PT7C4563BQ 2. Control and Status Register
Addr. Description D7 D6 D5 D4 D3 D2 D1 D0 (hex) 00 Control/Status 1 × × × × × × × × (Default) 0 Undefined 0 Undefined 1 Undefined Undefined Undefined 01 Control/Status 2 × × × × AF × AIE × (Default) Undefined Undefined Undefined 0 Undefined Undefined 0 0 0D SQW Control SQWE × × × × × RS1 RS0 (Default) 1 Undefined Undefined Undefined Undefined Undefined 0 0
a) Alarm Interrupt
•
AIE:
Alarm Interrupt Enable Bit. AIE Data Description 0 Alarm Interrupt Disabled Default Read/Write 1 Alarm Interrupt Enabled
•
AF:
Alarm Flag AF Data Description 0 Alarm Flag Inactive Read 1 Alarm Flag Active 0 Alarm Flag is Cleared Write 1 Alarm flag Remains Unchanged
b) SQW Control
•
SQWE:
SQW Output Clock Enable Bit. SQWE Data Description 0 The SQW output is inhibited and SQW output is set to high-impedance. Read/Write 1 The SQW output is activated. Default •
RS1, RS0:
SQW Output Frequency Select. RS1, RS0 Data SQW Output Frequency (Hz) 00 32.768k Default 01 1.024k Read/Write 10 32 11 1 PT7C4563BQ
www.diodes.com
July 2019 Document Number DS41477 Rev 2-2 10
