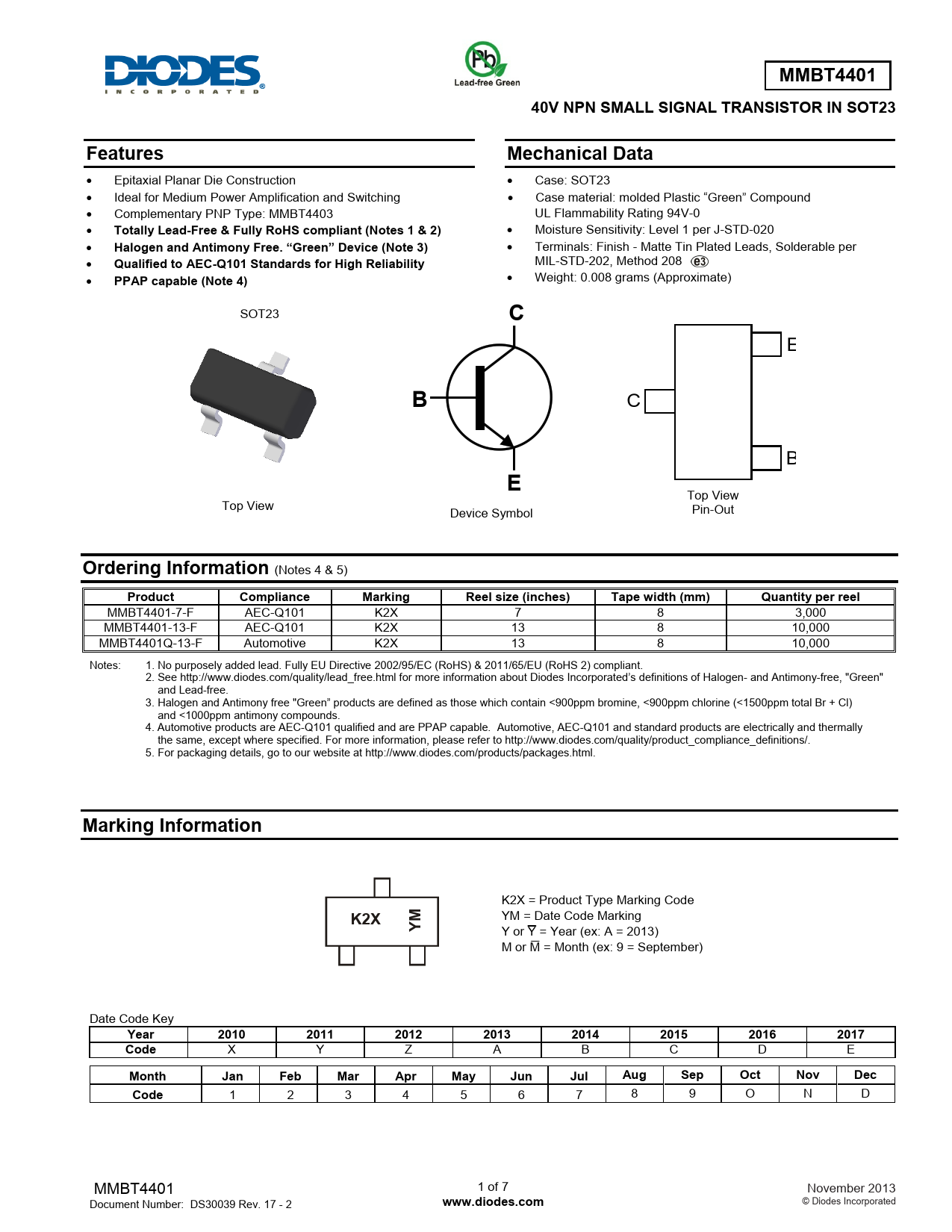

MMBT440140V NPN SMALL SIGNAL TRANSISTOR IN SOT23FeaturesMechanical Data Epitaxial Planar Die Construction Case: SOT23 Ideal for Medium Power Amplification and Switching Case material: molded Plastic “Green” Compound Complementary PNP Type: MMBT4403 UL Flammability Rating 94V-0 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) Moisture Sensitivity: Level 1 per J-STD-020 Halogen and Antimony Free. “Green” Device (Note 3) Terminals: Finish - Matte Tin Plated Leads, Solderable per Qualified to AEC-Q101 Standards for High Reliability MIL-STD-202, Method 208 PPAP capable (Note 4) Weight: 0.008 grams (Approximate)
SOT23 C E B C
B E Top View
Top View Device Symbol Pin-Out Ordering Information (Notes 4 & 5) ProductComplianceMarkingReel size (inches)Tape width (mm)Quantity per reel MMBT4401-7-F AEC-Q101 K2X 7 8 3,000 MMBT4401-13-F AEC-Q101 K2X 13 8 10,000 MMBT4401Q-13-F Automotive K2X 13 8 10,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/. 5. For packaging details, go to our website at http://www.diodes.com/products/packages.html. Marking Information K2X = Product Type Marking Code K2X YM = Date Code Marking YM Y or Y = Year (ex: A = 2013) M or M = Month (ex: 9 = September) Date Code Key Year20102011201220132014201520162017Code X Y Z A B C D E MonthJanFebMarAprMayJunJulAugSepOctNovDecCode 1 2 3 4 5 6 7 8 9 O N D
