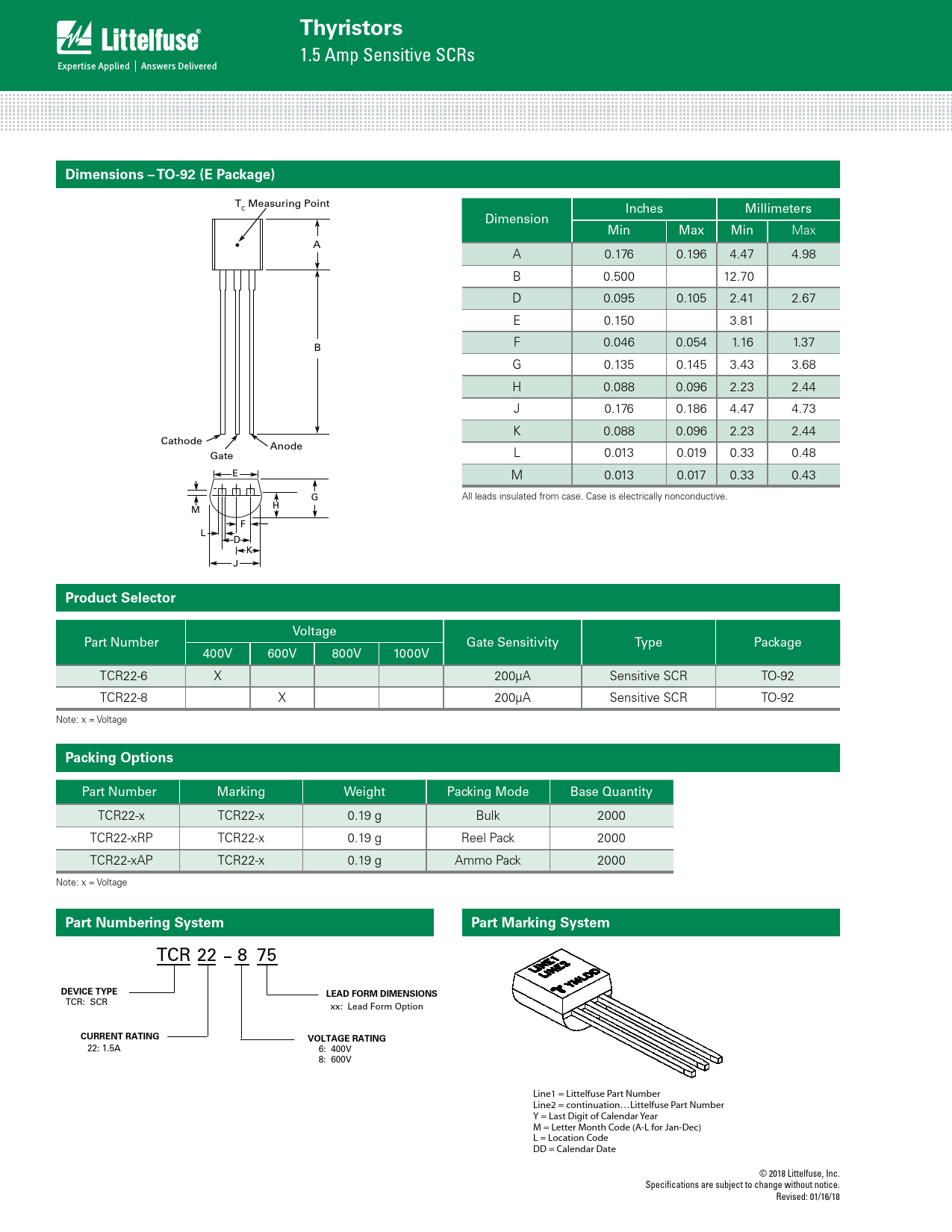

Thyristors
1.5 Amp Sensitive SCRs
Dimensions – TO-92 (E Package)
T Measuring Point C Inches Millimeters Dimension Min Max Min Max A A 0.176 0.196 4.47 4.98 B 0.500 12.70 D 0.095 0.105 2.41 2.67 E 0.150 3.81 F 0.046 0.054 1.16 1.37 B G 0.135 0.145 3.43 3.68 H 0.088 0.096 2.23 2.44 J 0.176 0.186 4.47 4.73 K 0.088 0.096 2.23 2.44 Cathode Anode Gate L 0.013 0.019 0.33 0.48 E M 0.013 0.017 0.33 0.43 G All leads insulated from case. Case is electrically nonconductive. H M F L D K J
Product Selector
Voltage Part Number Gate Sensitivity Type Package 400V 600V 800V 1000V TCR22-6 X 200µA Sensitive SCR TO-92 TCR22-8 X 200µA Sensitive SCR TO-92 Note: x = Voltage
Packing Options
Part Number Marking Weight Packing Mode Base Quantity TCR22-x TCR22-x 0.19 g Bulk 2000 TCR22-xRP TCR22-x 0.19 g Reel Pack 2000 TCR22-xAP TCR22-x 0.19 g Ammo Pack 2000 Note: x = Voltage
Part Numbering System Part Marking System
TCR 22 8 75
DEVICE TYPE LEAD FORM DIMENSIONS
TCR: SCR xx: Lead Form Option
CURRENT RATING VOLTAGE RATING
22: 1.5A 6: 400V 8: 600V Line1 = Littelfuse Part Number Line2 = continuation…Littelfuse Part Number Y = Last Digit of Calendar Year M = Letter Month Code (A-L for Jan-Dec) L = Location Code DD = Calendar Date © 2018 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 01/16/18
1.5 Amp Sensitive SCRs
Dimensions – TO-92 (E Package)
T Measuring Point C Inches Millimeters Dimension Min Max Min Max A A 0.176 0.196 4.47 4.98 B 0.500 12.70 D 0.095 0.105 2.41 2.67 E 0.150 3.81 F 0.046 0.054 1.16 1.37 B G 0.135 0.145 3.43 3.68 H 0.088 0.096 2.23 2.44 J 0.176 0.186 4.47 4.73 K 0.088 0.096 2.23 2.44 Cathode Anode Gate L 0.013 0.019 0.33 0.48 E M 0.013 0.017 0.33 0.43 G All leads insulated from case. Case is electrically nonconductive. H M F L D K J
Product Selector
Voltage Part Number Gate Sensitivity Type Package 400V 600V 800V 1000V TCR22-6 X 200µA Sensitive SCR TO-92 TCR22-8 X 200µA Sensitive SCR TO-92 Note: x = Voltage
Packing Options
Part Number Marking Weight Packing Mode Base Quantity TCR22-x TCR22-x 0.19 g Bulk 2000 TCR22-xRP TCR22-x 0.19 g Reel Pack 2000 TCR22-xAP TCR22-x 0.19 g Ammo Pack 2000 Note: x = Voltage
Part Numbering System Part Marking System
TCR 22 8 75
DEVICE TYPE LEAD FORM DIMENSIONS
TCR: SCR xx: Lead Form Option
CURRENT RATING VOLTAGE RATING
22: 1.5A 6: 400V 8: 600V Line1 = Littelfuse Part Number Line2 = continuation…Littelfuse Part Number Y = Last Digit of Calendar Year M = Letter Month Code (A-L for Jan-Dec) L = Location Code DD = Calendar Date © 2018 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 01/16/18
