Product Brief PIC16(L)F184XX (Microchip) - 6
| 制造商 | Microchip |
| 描述 | Full-Featured, Low Pin Count Microcontrollers with XLP |
| 页数 / 页 | 18 / 6 — PIC16(L)F184XX. UQFN. Packages. PDIP. SOIC. SSOP. TSSOP. (4x4). Note: . … |
| 文件格式/大小 | PDF / 244 Kb |
| 文件语言 | 英语 |
PIC16(L)F184XX. UQFN. Packages. PDIP. SOIC. SSOP. TSSOP. (4x4). Note: . Important: . Pin Diagrams. 14/16-Pin Diagrams
文件文字版本
link to page 9
PIC16(L)F184XX UQFN Packages PDIP SOIC SSOP TSSOP (4x4)
PIC16(L)F18445 ● ● ● ● PIC16(L)F18446 ● ● ● ● PIC16(L)F18455 ● ● ● ● PIC16(L)F18456 ● ● ● ●
Note:
Pin details are subject to change.
Important:
For other small form-factor package availability and marking information, visit www.microchip.com/ packaging or contact your local sales office.

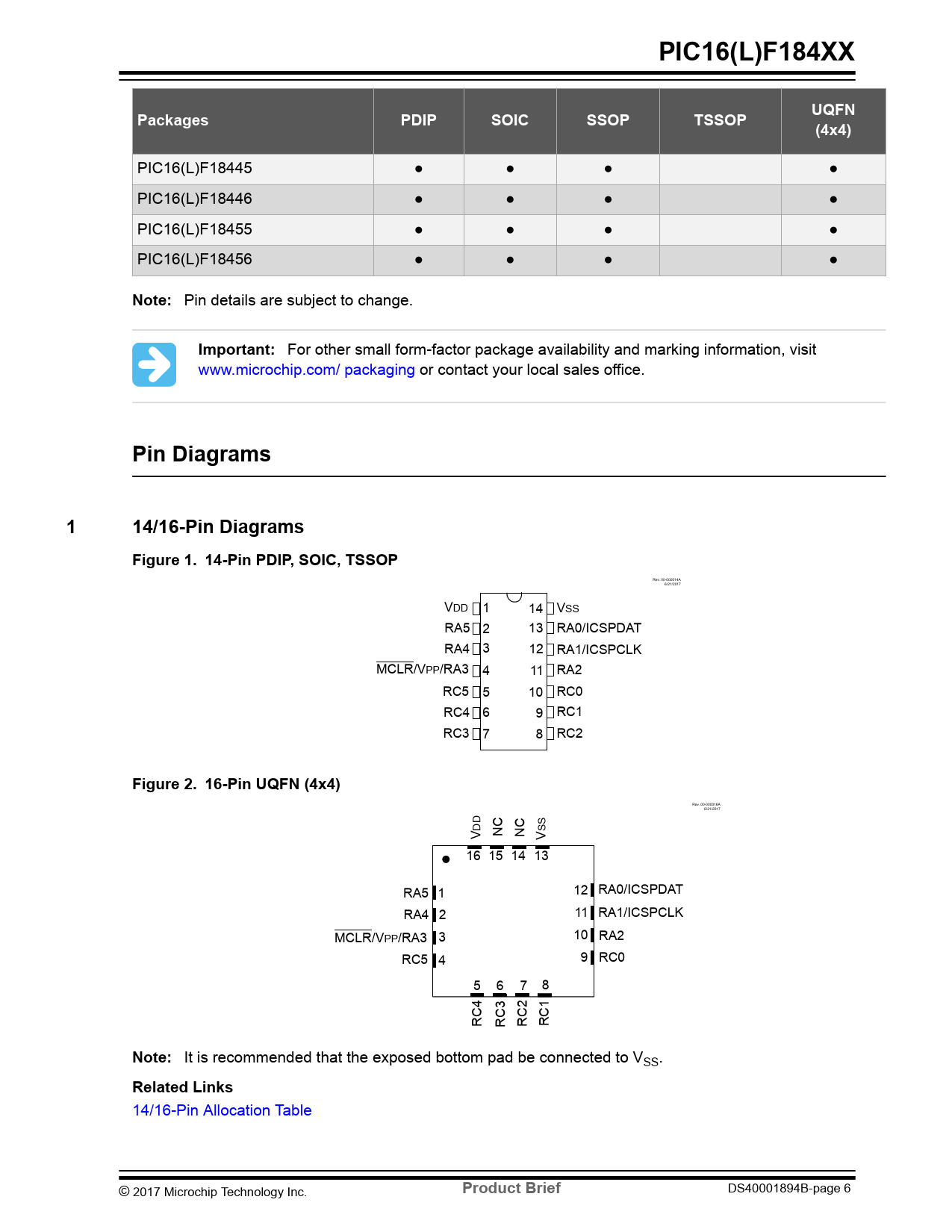

Pin Diagrams 1 14/16-Pin Diagrams Figure 1. 14-Pin PDIP, SOIC, TSSOP
Rev. 00-000014A 6/21/2017 VDD 1 14 VSS RA5 2 13 RA0/ICSPDAT RA4 3 12 RA1/ICSPCLK MCLR/VPP/RA3 4 11 RA2 RC5 5 10 RC0 RC4 6 9 RC1 RC3 7 8 RC2
Figure 2. 16-Pin UQFN (4x4)
Rev. 00-000016A 6/21/2017 D S D NC V NC S V 16 15 14 13 RA5 1 12 RA0/ICSPDAT RA4 2 11 RA1/ICSPCLK MCLR/VPP/RA3 3 10 RA2 RC5 4 9 RC0 5 6 7 8 3 2 C4 C1 R RC RC R
Note:
It is recommended that the exposed bottom pad be connected to VSS.
Related Links
14/16-Pin Allocation Table © 2017 Microchip Technology Inc.
Product Brief
