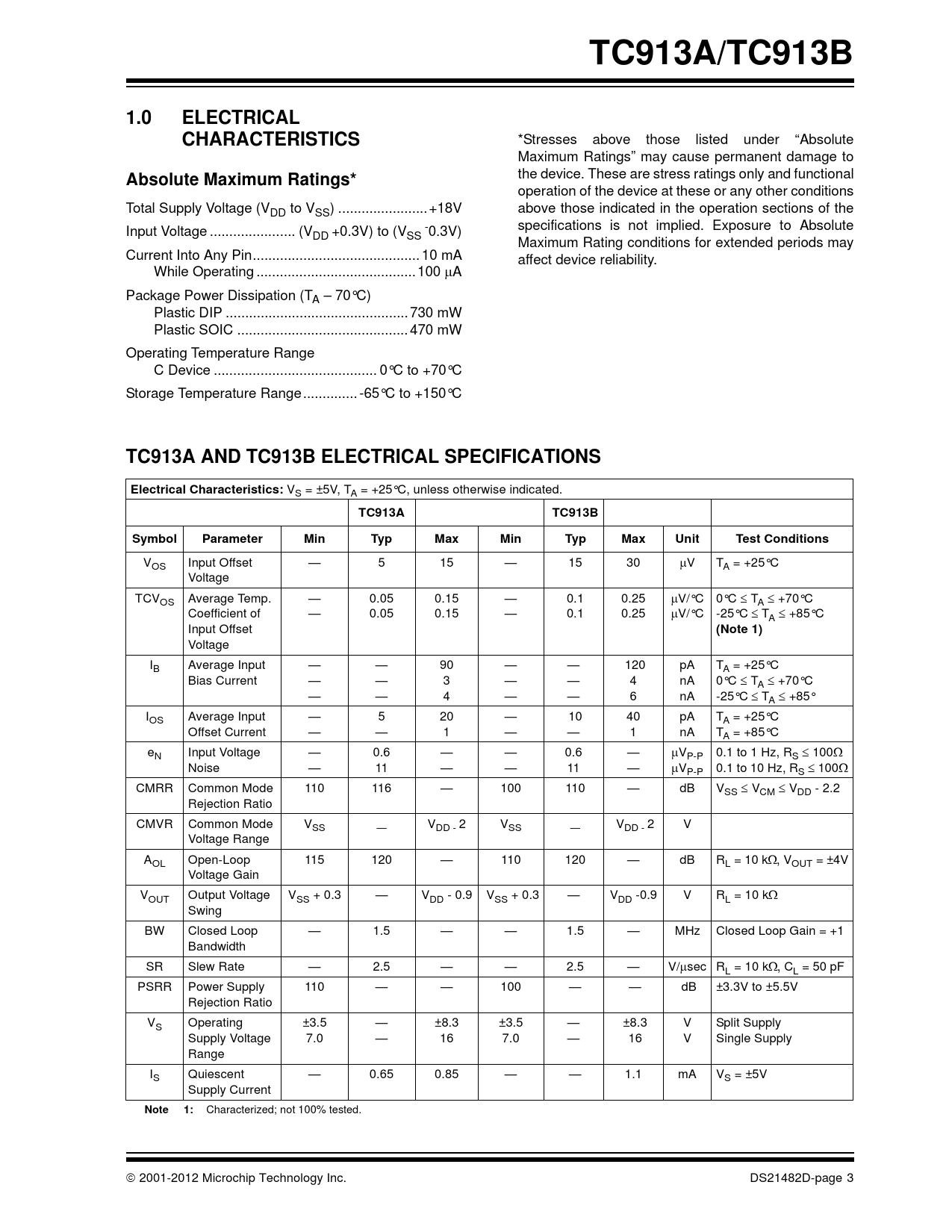

TC913A/TC913B 1.0 ELECTRICAL CHARACTERISTICS
*Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to
Absolute Maximum Ratings*
the device. These are stress ratings only and functional operation of the device at these or any other conditions Total Supply Voltage (VDD to VSS) ...+18V above those indicated in the operation sections of the Input Voltage .. (V - specifications is not implied. Exposure to Absolute DD +0.3V) to (VSS 0.3V) Maximum Rating conditions for extended periods may Current Into Any Pin... 10 mA affect device reliability. While Operating ... 100 A Package Power Dissipation (TA – 70°C) Plastic DIP ... 730 mW Plastic SOIC .. 470 mW Operating Temperature Range C Device .. 0°C to +70°C Storage Temperature Range .. -65°C to +150°C
TC913A AND TC913B ELECTRICAL SPECIFICATIONS Electrical Characteristics:
VS = ±5V, TA = +25°C, unless otherwise indicated.
TC913A TC913B Symbol Parameter Min Typ Max Min Typ Max Unit Test Conditions
VOS Input Offset — 5 15 — 15 30 V TA = +25°C Voltage TCV  OS Average Temp. — 0.05 0.15 — 0.1 0.25 V/°C 0°C  TA  +70°C Coefficient of — 0.05 0.15 — 0.1 0.25 V/°C -25°C  TA  +85°C Input Offset
(Note 1)
Voltage IB Average Input — — 90 — — 120 pA TA = +25°C Bias Current — — 3 — — 4 nA 0°C  TA  +70°C — — 4 — — 6 nA -25°C  TA  +85° IOS Average Input — 5 20 — 10 40 pA TA = +25°C Offset Current — — 1 — — 1 nA TA = +85°C e  N Input Voltage — 0.6 — — 0.6 — VP-P 0.1 to 1 Hz, RS  100 Noise — 11 — — 11 — VP-P 0.1 to 10 Hz, RS  100 CMRR Common Mode 110 116 — 100 110 — dB VSS  VCM  VDD - 2.2 Rejection Ratio CMVR Common Mode VSS — VDD - 2 VSS — VDD - 2 V Voltage Range AOL Open-Loop 115 120 — 110 120 — dB RL = 10 k, VOUT = ±4V Voltage Gain VOUT Output Voltage VSS + 0.3 — VDD - 0.9 VSS + 0.3 — VDD -0.9 V RL = 10 k Swing BW Closed Loop — 1.5 — — 1.5 — MHz Closed Loop Gain = +1 Bandwidth SR Slew Rate — 2.5 — — 2.5 — V/sec RL = 10 k, CL = 50 pF PSRR Power Supply 110 — — 100 — — dB ±3.3V to ±5.5V Rejection Ratio VS Operating ±3.5 — ±8.3 ±3.5 — ±8.3 V Split Supply Supply Voltage 7.0 — 16 7.0 — 16 V Single Supply Range IS Quiescent — 0.65 0.85 — — 1.1 mA VS = ±5V Supply Current
Note 1:
Characterized; not 100% tested.  2001-2012 Microchip Technology Inc. DS21482D-page 3 Document Outline TC913A/TC913B Features: Applications: Device Selection Table Package Type General Description: Functional Block Diagram 1.0 Electrical characteristics Absolute Maximum Ratings* tc913a and tc913b electrical specifications Note 1: Characterized; not 100% tested. 2.0 Pin Descriptions TABLE 2-1: Pin Function Table 3.0 Detailed Description 3.1 Theory of Operation 3.2 Pin Compatibility 3.3 Overload Recovery 3.4 Avoiding Latch-up 4.0 Typical Characteristics 5.0 packaging information 5.1 Package Marking Information 5.2 Taping Form 5.3 Package Dimensions 6.0 Revision History Notes: Dual Auto-Zeroed Operational Amplifiers The Microchip Web Site Customer Change Notification Service Customer Support Reader Response Corporate Office Atlanta Boston Chicago Cleveland Fax: 216-447-0643 Dallas Detroit Indianapolis Toronto Fax: 852-2401-3431 Australia - Sydney China - Beijing China - Shanghai India - Bangalore Korea - Daegu Korea - Seoul Singapore Taiwan - Taipei Fax: 43-7242-2244-393 Denmark - Copenhagen France - Paris Germany - Munich Italy - Milan Spain - Madrid UK - Wokingham Worldwide Sales and Service
