Datasheet BCV61 (Nexperia) - 4
| 制造商 | Nexperia |
| 描述 | NPN general-purpose double transistors |
| 页数 / 页 | 14 / 4 — NXP Semiconductors. BCV61. NPN general-purpose double transistors. … |
| 修订版 | 21012010 |
| 文件格式/大小 | PDF / 262 Kb |
| 文件语言 | 英语 |
NXP Semiconductors. BCV61. NPN general-purpose double transistors. Thermal characteristics. Table 6. Symbol. Parameter. Conditions. Min
该数据表的模型线
文件文字版本
link to page 5 link to page 4 link to page 5 link to page 5 link to page 5

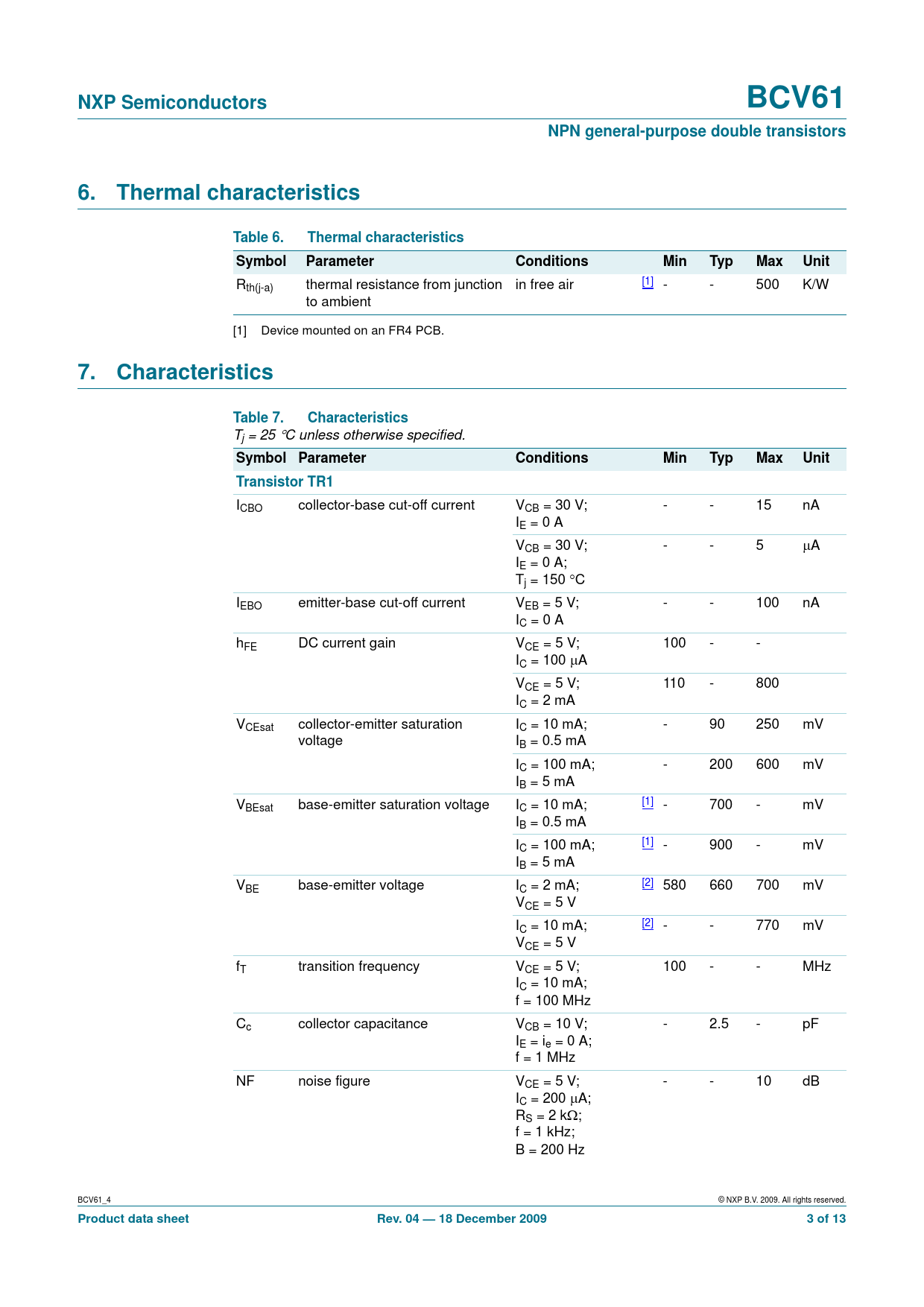

NXP Semiconductors BCV61 NPN general-purpose double transistors 6. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance from junction in free air [1] - - 500 K/W to ambient [1] Device mounted on an FR4 PCB.
7. Characteristics Table 7. Characteristics
Tj = 25 °C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit Transistor TR1
ICBO collector-base cut-off current VCB = 30 V; - - 15 nA IE = 0 A VCB = 30 V; - - 5 μA IE = 0 A; Tj = 150 °C IEBO emitter-base cut-off current VEB = 5 V; - - 100 nA IC = 0 A hFE DC current gain VCE = 5 V; 100 - - IC = 100 μA VCE = 5 V; 110 - 800 IC = 2 mA VCEsat collector-emitter saturation IC = 10 mA; - 90 250 mV voltage IB = 0.5 mA IC = 100 mA; - 200 600 mV IB = 5 mA V [1] BEsat base-emitter saturation voltage IC = 10 mA; - 700 - mV IB = 0.5 mA I [1] C = 100 mA; - 900 - mV IB = 5 mA V [2] BE base-emitter voltage IC = 2 mA; 580 660 700 mV VCE = 5 V I [2] C = 10 mA; - - 770 mV VCE = 5 V fT transition frequency VCE = 5 V; 100 - - MHz IC = 10 mA; f = 100 MHz Cc collector capacitance VCB = 10 V; - 2.5 - pF IE = ie = 0 A; f = 1 MHz NF noise figure VCE = 5 V; - - 10 dB IC = 200 μA; RS = 2 kΩ; f = 1 kHz; B = 200 Hz BCV61_4 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 04 — 18 December 2009 3 of 13
