描述60V N-Channel AlphaSGT
页数 / 页6 / 1 — AOTL66608. 60V N-Channel AlphaSGT TM. General Description. Product …
文件格式/大小PDF / 365 Kb
文件语言英语

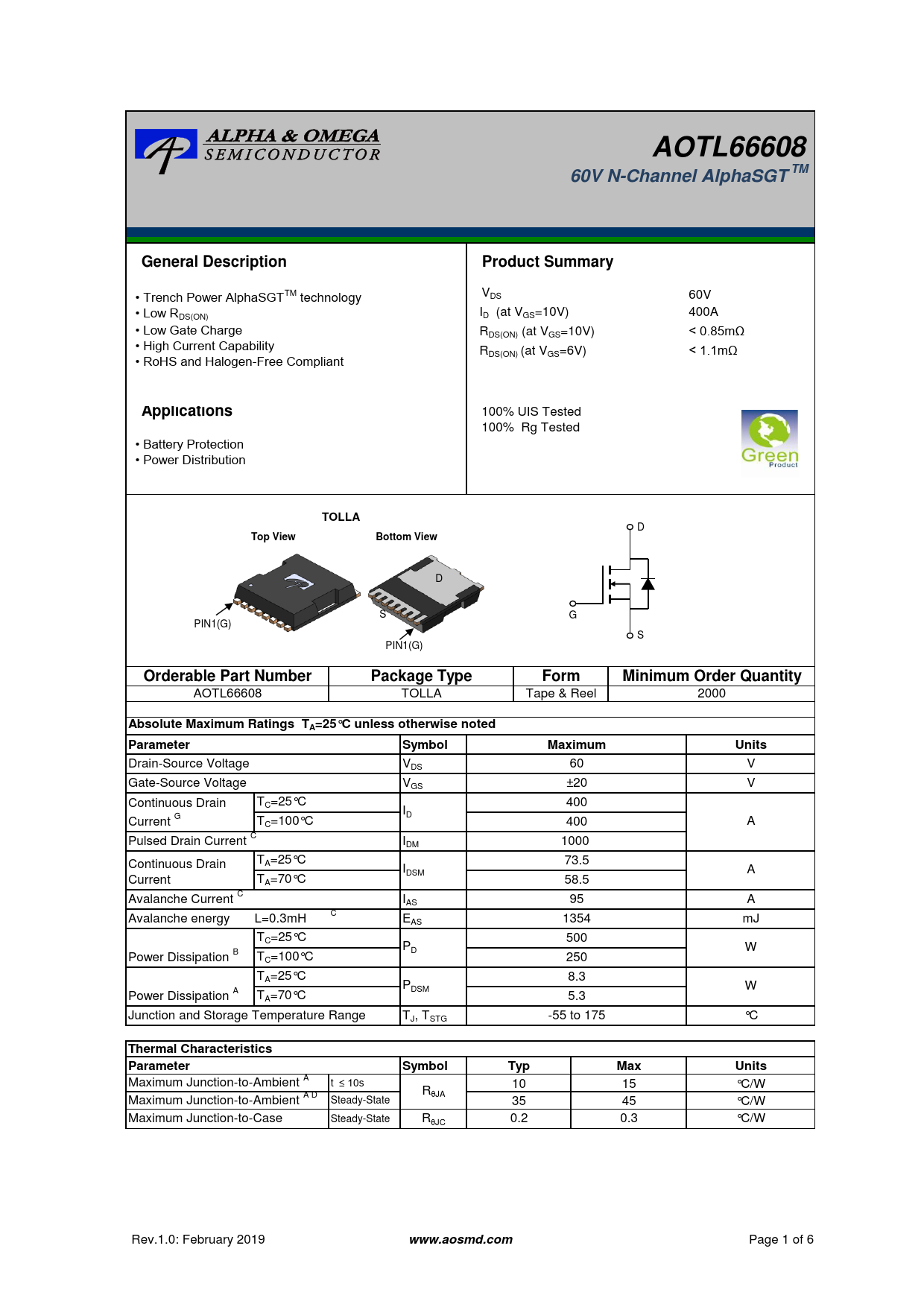

AOTL66608. 60V N-Channel AlphaSGT TM. General Description. Product Summary. Applications. TOLLA. Top View. Bottom View

Datasheet AOTL66608 Alpha & Omega

该数据表的模型线

文件文字版本

AOTL66608 60V N-Channel AlphaSGT TM General Description Product Summary
VDS 60V • Trench Power AlphaSGTTM technology • Low R I DS(ON) D (at VGS=10V) 400A • Low Gate Charge RDS(ON) (at VGS=10V) < 0.85mΩ • High Current Capability RDS(ON) (at VGS=6V) < 1.1mΩ • RoHS and Halogen-Free Compliant
Applications
100% UIS Tested 100% Rg Tested • Battery Protection • Power Distribution
TOLLA
D
Top View Bottom View
D S G PIN1(G) S PIN1(G)
Orderable Part Number Package Type Form Minimum Order Quantity
AOTL66608 TOLLA Tape & Reel 2000
Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Maximum Units
Drain-Source Voltage VDS 60 V Gate-Source Voltage VGS ±20 V Continuous Drain TC=25°C 400 ID Current G TC=100°C 400 A Pulsed Drain Current C IDM 1000 TA=25°C 73.5 Continuous Drain IDSM A Current TA=70°C 58.5 Avalanche Current C IAS 95 A Avalanche energy L=0.3mH C EAS 1354 mJ TC=25°C 500 PD W Power Dissipation B TC=100°C 250 TA=25°C 8.3 PDSM W Power Dissipation A TA=70°C 5.3 Junction and Storage Temperature Range TJ, TSTG -55 to 175 °C
Thermal Characteristics Parameter Symbol Typ Max Units
Maximum Junction-to-Ambient A t ≤ 10s 10 15 °C/W Rq Maximum Junction-to-Ambient A D JA Steady-State 35 45 °C/W Maximum Junction-to-Case Steady-State RqJC 0.2 0.3 °C/W Rev.1.0: February 2019
