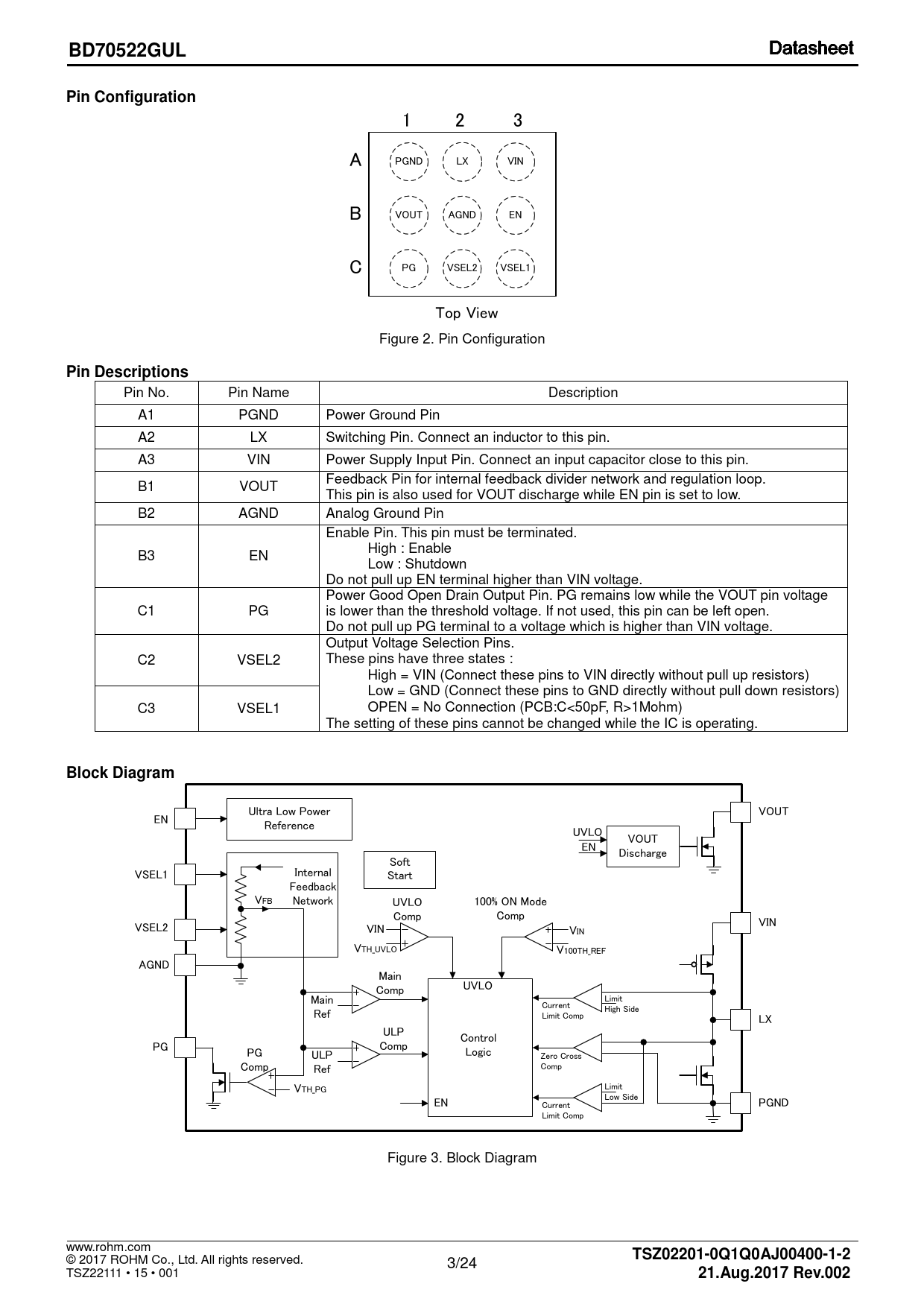

BD70522GUL Pin Configuration
1 2 3 A PGND LX VIN B VOUT AGND EN C PG VSEL2 VSEL1 Top View Figure 2. Pin Configuration
Pin Descriptions
Pin No. Pin Name Description A1 PGND Power Ground Pin A2 LX Switching Pin. Connect an inductor to this pin. A3 VIN Power Supply Input Pin. Connect an input capacitor close to this pin. Feedback Pin for internal feedback divider network and regulation loop. B1 VOUT This pin is also used for VOUT discharge while EN pin is set to low. B2 AGND Analog Ground Pin Enable Pin. This pin must be terminated. High : Enable B3 EN Low : Shutdown Do not pull up EN terminal higher than VIN voltage. Power Good Open Drain Output Pin. PG remains low while the VOUT pin voltage C1 PG is lower than the threshold voltage. If not used, this pin can be left open. Do not pull up PG terminal to a voltage which is higher than VIN voltage. Output Voltage Selection Pins. C2 VSEL2 These pins have three states : High = VIN (Connect these pins to VIN directly without pull up resistors) Low = GND (Connect these pins to GND directly without pull down resistors) C3 VSEL1 OPEN = No Connection (PCB:C<50pF, R>1Mohm) The setting of these pins cannot be changed while the IC is operating.
Block Diagram
Ultra Low Power VOUT EN Reference UVLO VOUT EN Discharge Soft VSEL1 Internal Start Feedback VFB Network UVLO 100% ON Mode Comp Comp VIN VSEL2 VIN VIN VTH_UVLO V100TH_REF AGND Main UVLO Comp Main Limit Current Ref High Side Limit Comp LX ULP Control PG Comp PG ULP Logic Zero Cross Comp Ref Comp Limit VTH_PG EN Low Side Current PGND Limit Comp Figure 3. Block Diagram www.rohm.com
TSZ02201-0Q1Q0AJ00400-1-2
© 2017 ROHM Co., Ltd. All rights reserved. 3/24 TSZ22111 • 15 • 001
21.Aug.2017 Rev.002
