Power Inductors. Electrical Specifications. DCR. Isat (A) - max. Irms (A). Part Number. Inductance. (μH ±20%. (mΩ) Max. @0A

Power Inductors Electrical Specifications DCR Isat (A) - max Irms (A) Part Number Inductance (μH ±20% (mΩ) Max @0A

该数据表的模型线

文件文字版本

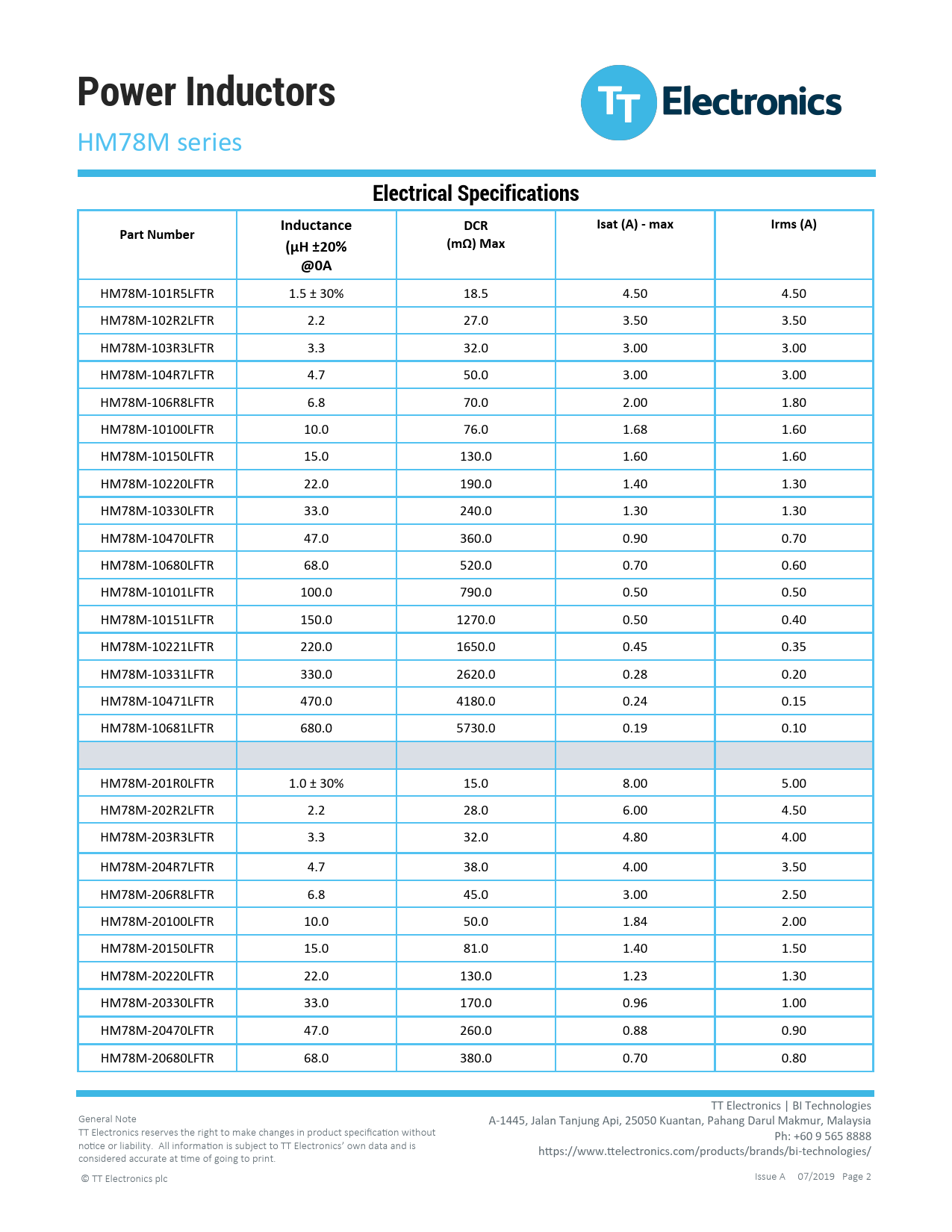

Power Inductors
HM78M series
Electrical Specifications DCR Isat (A) - max Irms (A) Part Number Inductance (μH ±20% (mΩ) Max @0A
HM78M-101R5LFTR 1.5 ± 30% 18.5 4.50 4.50 HM78M-102R2LFTR 2.2 27.0 3.50 3.50 HM78M-103R3LFTR 3.3 32.0 3.00 3.00 HM78M-104R7LFTR 4.7 50.0 3.00 3.00 HM78M-106R8LFTR 6.8 70.0 2.00 1.80 HM78M-10100LFTR 10.0 76.0 1.68 1.60 HM78M-10150LFTR 15.0 130.0 1.60 1.60 HM78M-10220LFTR 22.0 190.0 1.40 1.30 HM78M-10330LFTR 33.0 240.0 1.30 1.30 HM78M-10470LFTR 47.0 360.0 0.90 0.70 HM78M-10680LFTR 68.0 520.0 0.70 0.60 HM78M-10101LFTR 100.0 790.0 0.50 0.50 HM78M-10151LFTR 150.0 1270.0 0.50 0.40 HM78M-10221LFTR 220.0 1650.0 0.45 0.35 HM78M-10331LFTR 330.0 2620.0 0.28 0.20 HM78M-10471LFTR 470.0 4180.0 0.24 0.15 HM78M-10681LFTR 680.0 5730.0 0.19 0.10 HM78M-201R0LFTR 1.0 ± 30% 15.0 8.00 5.00 HM78M-202R2LFTR 2.2 28.0 6.00 4.50 HM78M-203R3LFTR 3.3 32.0 4.80 4.00 HM78M-204R7LFTR 4.7 38.0 4.00 3.50 HM78M-206R8LFTR 6.8 45.0 3.00 2.50 HM78M-20100LFTR 10.0 50.0 1.84 2.00 HM78M-20150LFTR 15.0 81.0 1.40 1.50 HM78M-20220LFTR 22.0 130.0 1.23 1.30 HM78M-20330LFTR 33.0 170.0 0.96 1.00 HM78M-20470LFTR 47.0 260.0 0.88 0.90 HM78M-20680LFTR 68.0 380.0 0.70 0.80 TT Electronics | BI Technologies General Note A-1445, Jalan Tanjung Api, 25050 Kuantan, Pahang Darul Makmur, Malaysia TT Electronics reserves the right to make changes in product specification without Ph: +60 9 565 8888 notice or liability. All information is subject to TT Electronics’ own data and is https://www.ttelectronics.com/products/brands/bi-technologies/ considered accurate at time of going to print. © TT Electronics plc Issue A 07/2019 Page 2
