Datasheet RX65N, RX651 Groups (Renesas) - 210
| 制造商 | Renesas |
| 描述 | 120-MHz 32-bit RX MCU, on-chip FPU, 240 DMIPS, up to 2-MB flash memory |
| 页数 / 页 | 246 / 210 — Figure 5.59. RMII Reception Timing (Error Occurrence). Figure 5.60. WOL … |
| 文件格式/大小 | PDF / 2.8 Mb |
| 文件语言 | 英语 |

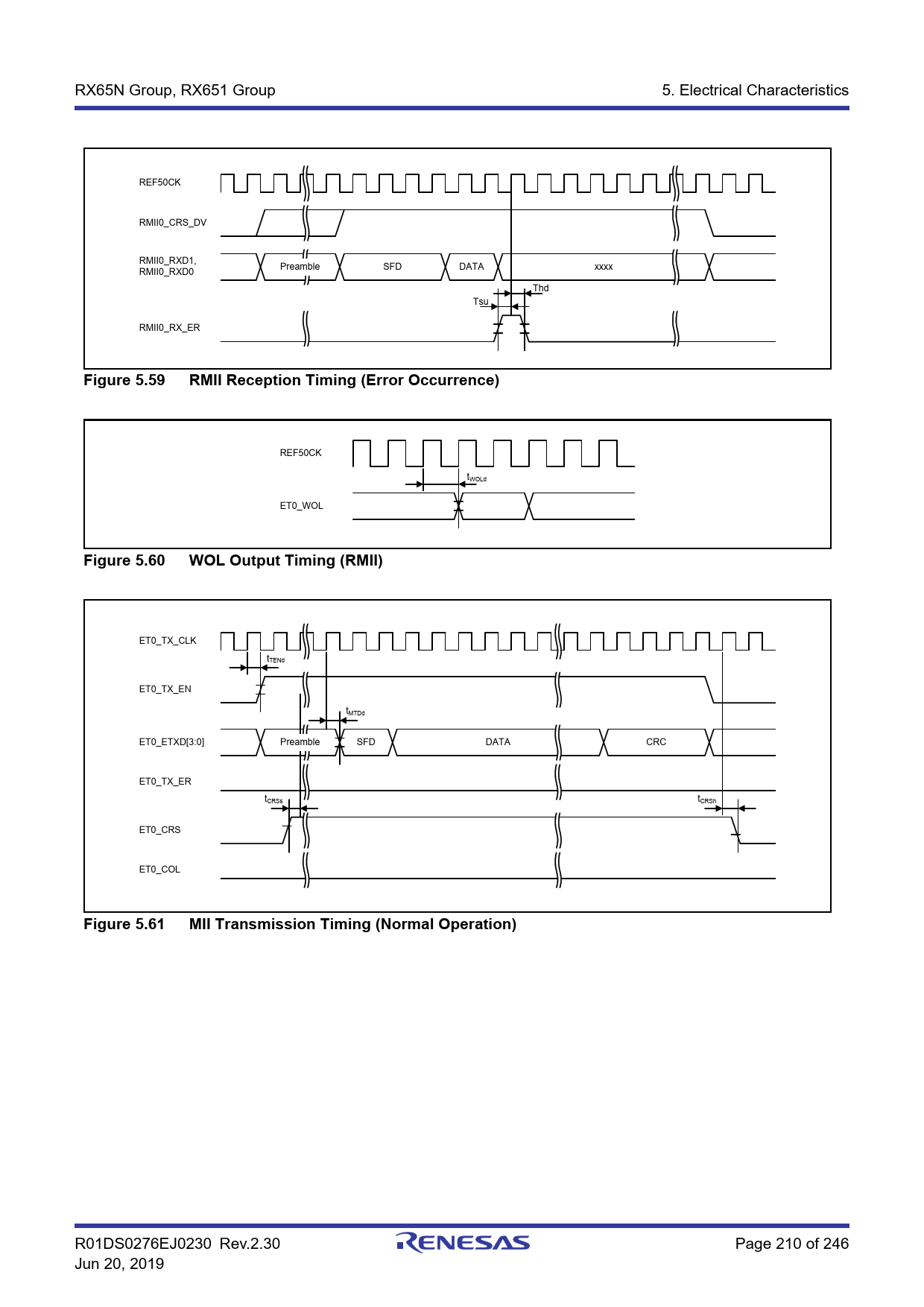

Figure 5.59. RMII Reception Timing (Error Occurrence). Figure 5.60. WOL Output Timing (RMII). Figure 5.61
该数据表的模型线
文件文字版本
RX65N Group, RX651 Group 5. Electrical Characteristics REF50CK RMII0_CRS_DV RMII0_RXD1, Preamble SFD DATA xxxx RMII0_RXD0 Thd Tsu RMII0_RX_ER
Figure 5.59 RMII Reception Timing (Error Occurrence)
REF50CK tWOLd ET0_WOL
Figure 5.60 WOL Output Timing (RMII)
ET0_TX_CLK tTENd ET0_TX_EN tMTDd ET0_ETXD[3:0] Preamble SFD DATA CRC ET0_TX_ER tCRSs tCRSh ET0_CRS ET0_COL
Figure 5.61 MII Transmission Timing (Normal Operation)
