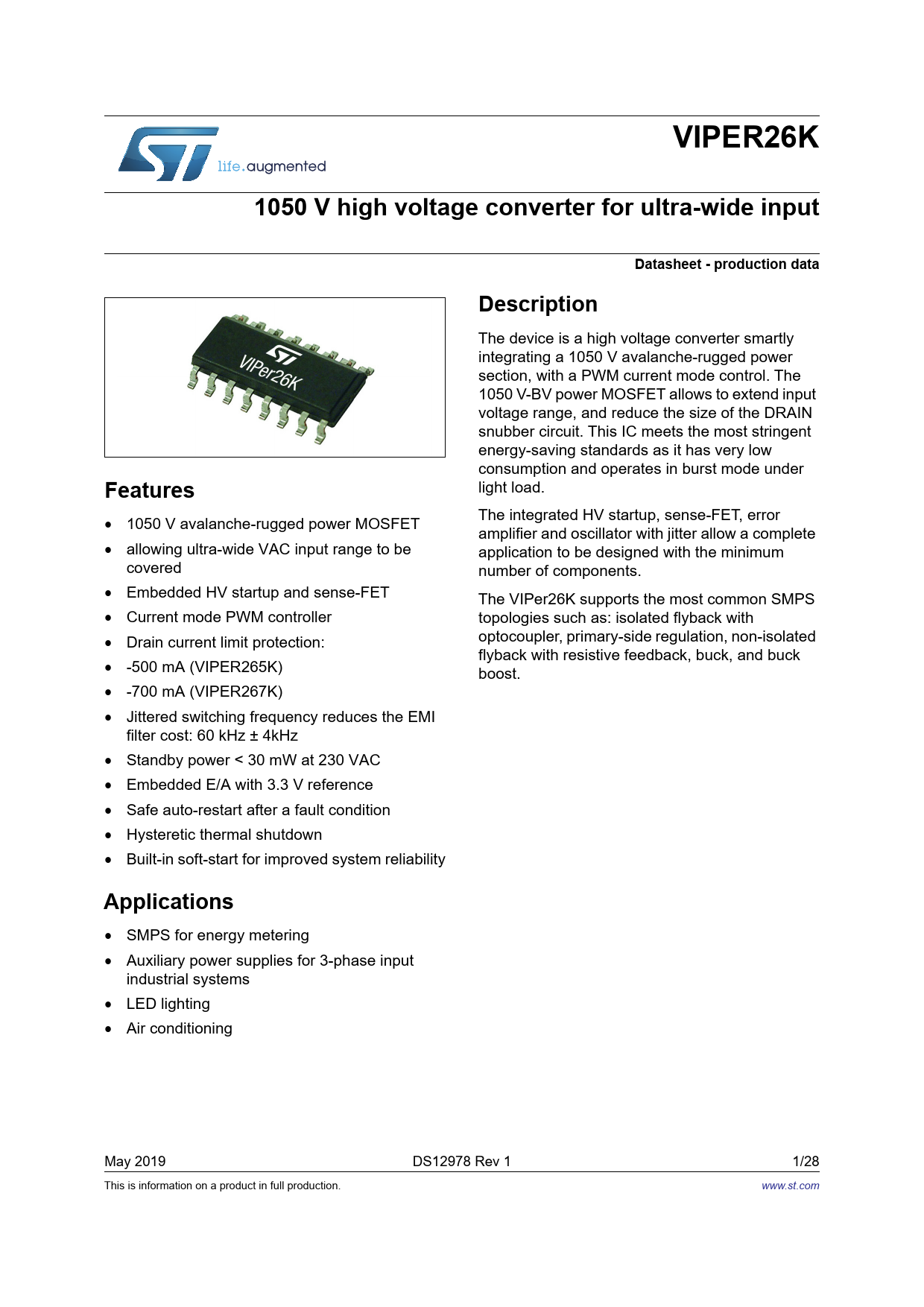

VIPER26K 1050 V high voltage converter for ultra-wide input Datasheet - production data Description
The device is a high voltage converter smartly integrating a 1050 V avalanche-rugged power section, with a PWM current mode control. The 1050 V-BV power MOSFET allows to extend input voltage range, and reduce the size of the DRAIN snubber circuit. This IC meets the most stringent energy-saving standards as it has very low consumption and operates in burst mode under
Features
light load. The integrated HV startup, sense-FET, error 1050 V avalanche-rugged power MOSFET amplifier and oscillator with jitter allow a complete allowing ultra-wide VAC input range to be application to be designed with the minimum covered number of components. Embedded HV startup and sense-FET The VIPer26K supports the most common SMPS Current mode PWM controller topologies such as: isolated flyback with Drain current limit protection: optocoupler, primary-side regulation, non-isolated flyback with resistive feedback, buck, and buck -500 mA (VIPER265K) boost. -700 mA (VIPER267K) Jittered switching frequency reduces the EMI filter cost: 60 kHz ± 4kHz Standby power < 30 mW at 230 VAC Embedded E/A with 3.3 V reference Safe auto-restart after a fault condition Hysteretic thermal shutdown Built-in soft-start for improved system reliability
Applications
SMPS for energy metering Auxiliary power supplies for 3-phase input industrial systems LED lighting Air conditioning May 2019 DS12978 Rev 1 1/28 This is information on a product in full production. www.st.com Document Outline Figure 1. Basic application schematic 1 Pin setting Figure 2. Connection diagram Table 1. Pin description 2 Electrical and thermal ratings Table 2. Absolute maximum ratings Table 3. Thermal data Figure 3. RthJA Table 4. Avalanche characteristics 3 Electrical characteristics Table 5. Power section Table 6. Supply section Table 7. Controller section 3.1 Typical electrical characteristics Figure 4. IDLIM vs. Tj Figure 5. FOSC vs. Tj Figure 6. VHV_START vs. Tj Figure 7. VREF_FB vs. Tj Figure 8. IDD0 vs. Tj Figure 9. IDD1 vs. Tj Figure 10. GM vs. Tj Figure 11. HCOMP vs. Tj Figure 12. ICOMP(source/sink) vs. Tj Figure 13. ICOMP(max source) vs. Tj Figure 14. Power MOSFET capacitances variation vs. VDS @ VGS=0, f=1MHz Figure 15. VBVDSS vs. TJ .. Figure 16. RDS(on) vs. Tj Figure 17. Maximum avalanche energy vs. Tj Figure 18. SOA SSOP10 package 4 General description 4.1 Block diagram Figure 19. Block diagram 4.2 Typical power capability Table 8. Typical power 4.3 Primary MOSFET 4.4 High voltage startup Figure 20. Timing diagram: normal power-up and power-down sequences 4.5 Oscillator 4.6 Soft-start 4.7 Current limit set point 4.8 FB pin and COMP pin Figure 21. Feedback circuit Figure 22. COMP pin vs. IDLIM 4.9 Burst mode Figure 23. Load-dependent operating modes: timing diagram 4.10 Automatic auto restart after overload or short-circuit Figure 24. Timing diagram: OLP sequence 4.11 Open loop failure protection 4.12 Thermal shutdown Figure 25. Timing diagram: OLP sequence 5 Application information Figure 26. Typical isolated flyback configuration with secondary regulation Figure 27. Typical isolated flyback configuration with primary regulation Figure 28. Typical non isolated flyback configuration Figure 29. Ultra wide range Buck configuration 5.1 Layout guidelines and design recommendations Figure 30. Recommended routing for flyback converter Figure 31. Recommended routing for Buck converter 6 Package information 6.1 SO16N package information Figure 32. SO16N package outline Table 9. SO16N mechanical data 7 Order code Table 10. Order codes 8 Revision history Table 11. Document history
