Datasheet BC846, BC847, BC848, BC849, BC550 (Infineon) - 4
| 制造商 | Infineon |
| 描述 | NPN Silicon AF Transistors |
| 页数 / 页 | 19 / 4 — BC846...-BC850... Thermal Resistance. Parameter. Symbol. Value. Unit |
| 文件格式/大小 | PDF / 187 Kb |
| 文件语言 | 英语 |
BC846...-BC850... Thermal Resistance. Parameter. Symbol. Value. Unit
该数据表的模型线
文件文字版本

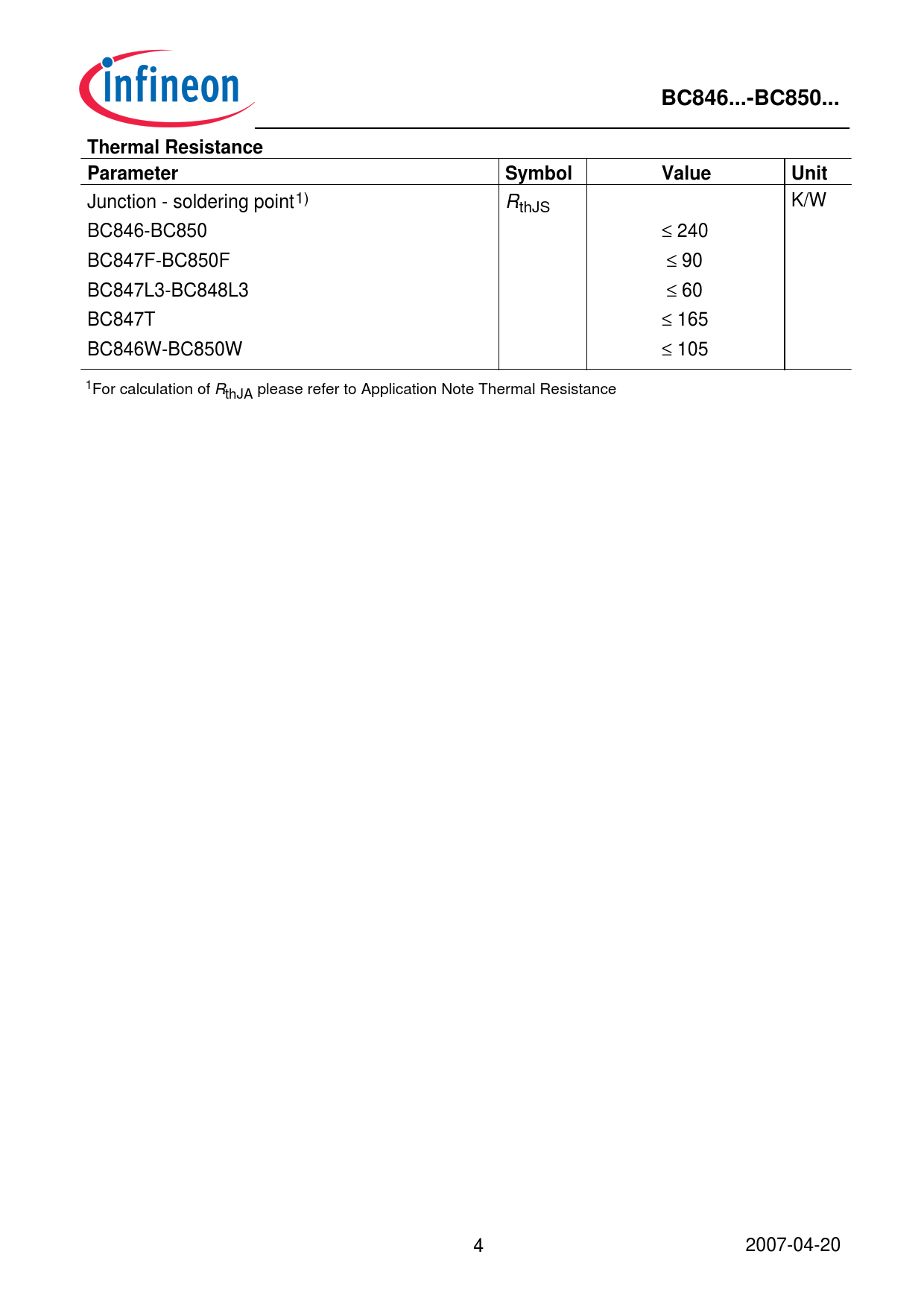

BC846...-BC850... Thermal Resistance Parameter Symbol Value Unit
Junction - soldering point1) RthJS K/W BC846-BC850 ≤ 240 BC847F-BC850F ≤ 90 BC847L3-BC848L3 ≤ 60 BC847T ≤ 165 BC846W-BC850W ≤ 105 1For calculation of RthJA please refer to Application Note Thermal Resistance 4 2007-04-20
Junction - soldering point1) RthJS K/W BC846-BC850 ≤ 240 BC847F-BC850F ≤ 90 BC847L3-BC848L3 ≤ 60 BC847T ≤ 165 BC846W-BC850W ≤ 105 1For calculation of RthJA please refer to Application Note Thermal Resistance 4 2007-04-20
