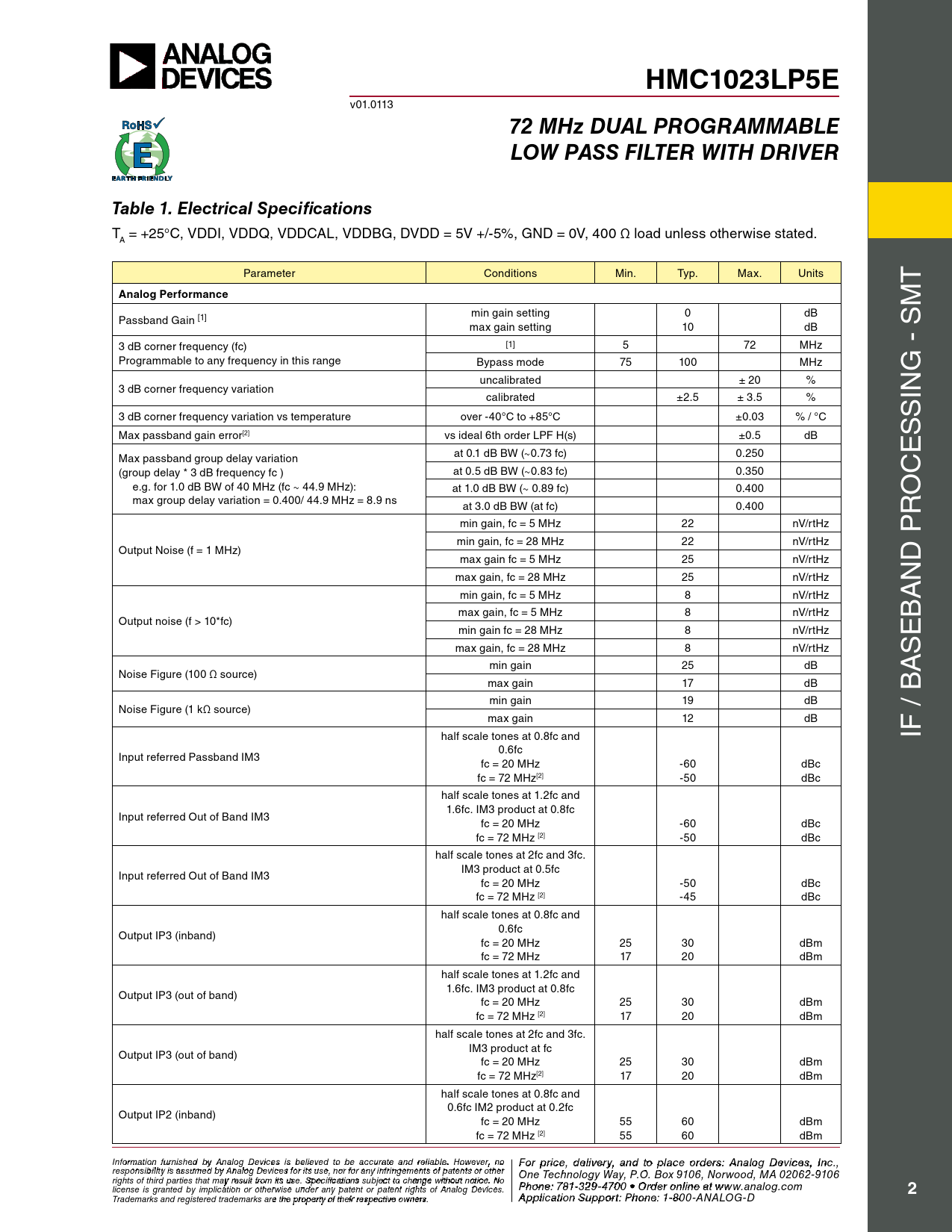

HMC1023LP5E. 72 MHz DUAL PROGRAMMABLE. LOW PASS FILTER WITH DRIVER. Table 1. Electrical Specifications. Analog Performance

HMC1023LP5E 72 MHz DUAL PROGRAMMABLE LOW PASS FILTER WITH DRIVER Table 1 Electrical Specifications Analog Performance

该数据表的模型线

文件文字版本

HMC1023LP5E
v01.0113
72 MHz DUAL PROGRAMMABLE LOW PASS FILTER WITH DRIVER Table 1. Electrical Specifications
T = +25°C, VDDI, VDDQ, VDDCAL, VDDBG, DVDD = 5V +/-5%, GND = 0V, 400 Ω load unless otherwise stated. A Parameter Conditions Min. Typ. Max. Units T
Analog Performance
M 0 dB Passband Gain [1] min gain setting max gain setting 10 dB 3 dB corner frequency (fc) [1] 5 72 MHz Programmable to any frequency in this range Bypass mode 75 100 MHz G - S uncalibrated ± 20 % 3 dB corner frequency variation calibrated ±2.5 ± 3.5 % IN 3 dB corner frequency variation vs temperature over -40°C to +85°C ±0.03 % / °C S Max passband gain error[2] vs ideal 6th order LPF H(s) ±0.5 dB S at 0.1 dB BW (~0.73 fc) 0.250 E Max passband group delay variation (group delay * 3 dB frequency fc ) at 0.5 dB BW (~0.83 fc) 0.350 C e.g. for 1.0 dB BW of 40 MHz (fc ~ 44.9 MHz): at 1.0 dB BW (~ 0.89 fc) 0.400 O max group delay variation = 0.400/ 44.9 MHz = 8.9 ns at 3.0 dB BW (at fc) 0.400 R min gain, fc = 5 MHz 22 nV/rtHz min gain, fc = 28 MHz 22 nV/rtHz Output Noise (f = 1 MHz) max gain fc = 5 MHz 25 nV/rtHz D P max gain, fc = 28 MHz 25 nV/rtHz N min gain, fc = 5 MHz 8 nV/rtHz A max gain, fc = 5 MHz 8 nV/rtHz B Output noise (f > 10*fc) min gain fc = 28 MHz 8 nV/rtHz E max gain, fc = 28 MHz 8 nV/rtHz S min gain 25 dB Noise Figure (100 Ω source) A max gain 17 dB min gain 19 dB Noise Figure (1 kΩ source) max gain 12 dB half scale tones at 0.8fc and IF / B 0.6fc Input referred Passband IM3 fc = 20 MHz -60 dBc fc = 72 MHz[2] -50 dBc half scale tones at 1.2fc and 1.6fc. IM3 product at 0.8fc Input referred Out of Band IM3 fc = 20 MHz -60 dBc fc = 72 MHz [2] -50 dBc half scale tones at 2fc and 3fc. IM3 product at 0.5fc Input referred Out of Band IM3 fc = 20 MHz -50 dBc fc = 72 MHz [2] -45 dBc half scale tones at 0.8fc and 0.6fc Output IP3 (inband) fc = 20 MHz 25 30 dBm fc = 72 MHz 17 20 dBm half scale tones at 1.2fc and 1.6fc. IM3 product at 0.8fc Output IP3 (out of band) fc = 20 MHz 25 30 dBm fc = 72 MHz [2] 17 20 dBm half scale tones at 2fc and 3fc. IM3 product at fc Output IP3 (out of band) fc = 20 MHz 25 30 dBm fc = 72 MHz[2] 17 20 dBm half scale tones at 0.8fc and 0.6fc IM2 product at 0.2fc Output IP2 (inband) fc = 20 MHz 55 60 dBm fc = 72 MHz [2] 55 60 dBm Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com
2
