Datasheet AD7655-EP (Analog Devices) - 12
| 制造商 | Analog Devices |
| 描述 | Low Cost, 4-Channel, 16-Bit, 500 kSPS PulSAR ADC |
| 页数 / 页 | 12 / 12 — AD7655-EP. Enhanced Product. ORDERING GUIDE Model1. Temperature Range … |
| 修订版 | B |
| 文件格式/大小 | PDF / 268 Kb |
| 文件语言 | 英语 |
AD7655-EP. Enhanced Product. ORDERING GUIDE Model1. Temperature Range Package Description. Package Option
该数据表的模型线
文件文字版本

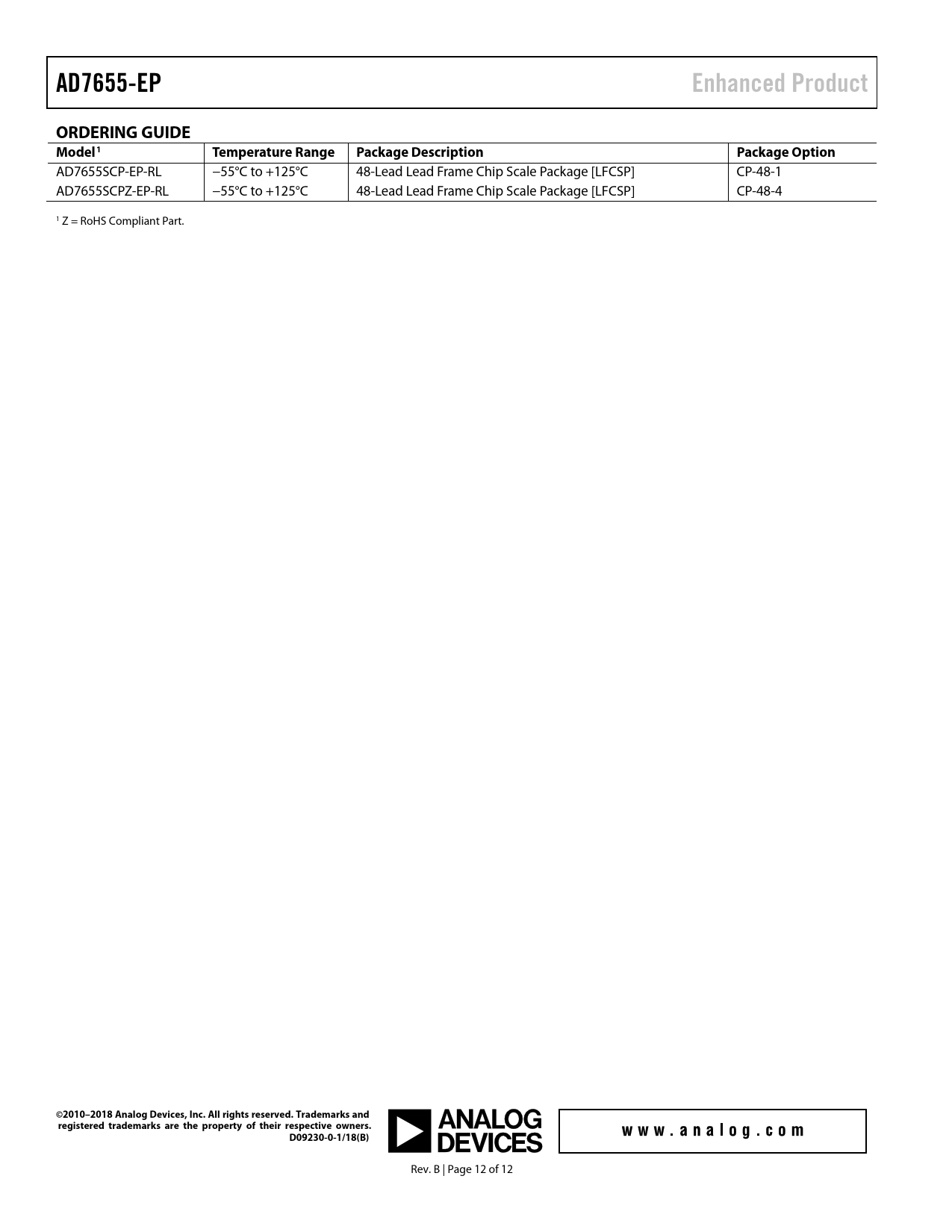

AD7655-EP Enhanced Product ORDERING GUIDE Model1 Temperature Range Package Description Package Option
AD7655SCP-EP-RL −55°C to +125°C 48-Lead Lead Frame Chip Scale Package [LFCSP] CP-48-1 AD7655SCPZ-EP-RL −55°C to +125°C 48-Lead Lead Frame Chip Scale Package [LFCSP] CP-48-4 1 Z = RoHS Compliant Part.
©2010–2018 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D09230-0-1/18(B)
Rev. B | Page 12 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS ORDERING GUIDE
