Datasheet LZ1-00NW05 (LedEngin) - 8
| 制造商 | LedEngin |
| 描述 | High Luminous Efficacy 5W Neutral White LED |
| 页数 / 页 | 13 / 8 — Led |
| 文件格式/大小 | PDF / 280 Kb |
| 文件语言 | 英语 |
Led
该数据表的模型线
文件文字版本

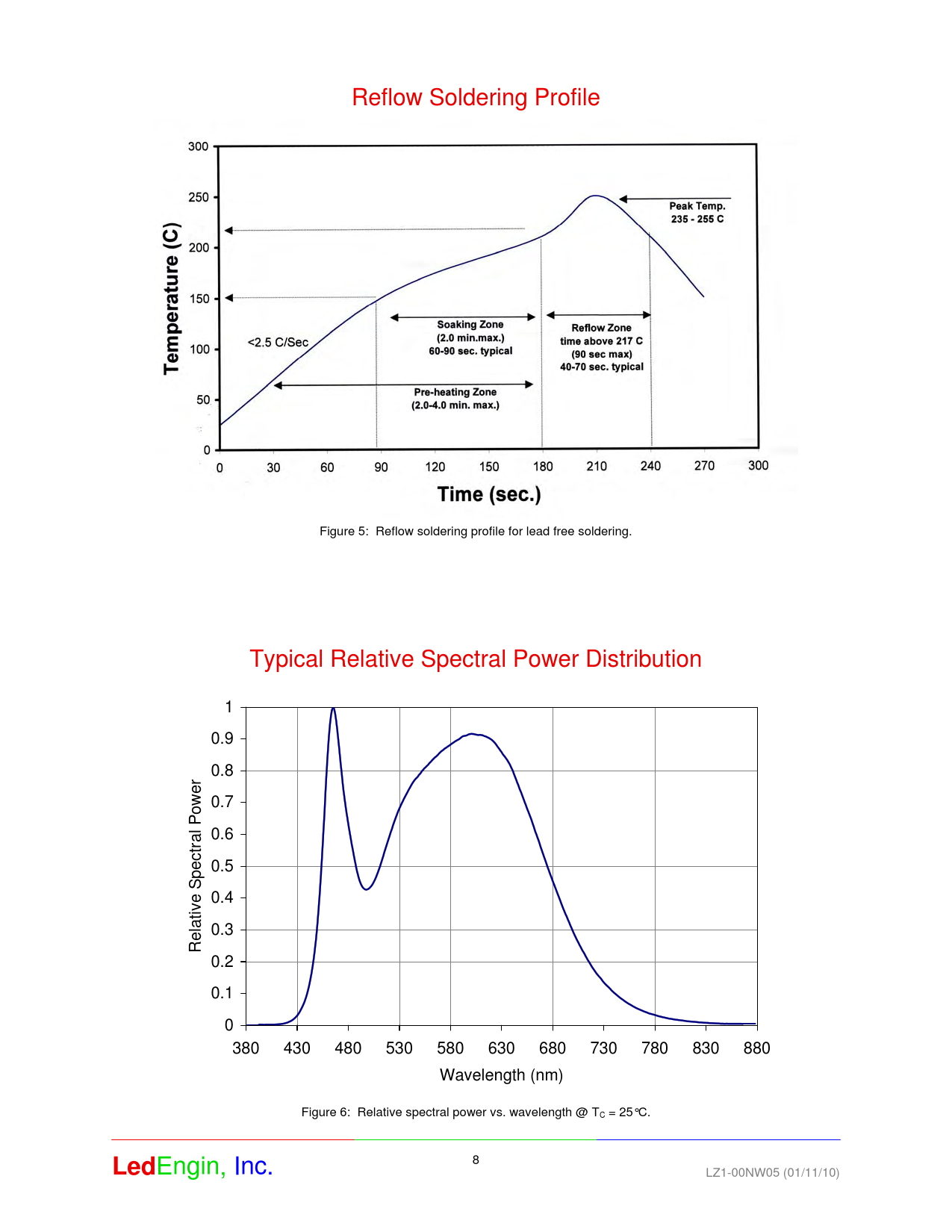

Reflow Soldering Profile Figure 5: Reflow soldering profile for lead free soldering. Typical Relative Spectral Power Distribution 1 0.9 0.8 0.7 0.6 tral Power 0.5 0.4 0.3 Relative Spec 0.2 0.1 0 380 430 480 530 580 630 680 730 780 830 880 Wavelength (nm) Figure 6: Relative spectral power vs. wavelength @ TC = 25°C.
Led
Engin, Inc. 8 LZ1-00NW05 (01/11/10)
Led
Engin, Inc. 8 LZ1-00NW05 (01/11/10)
