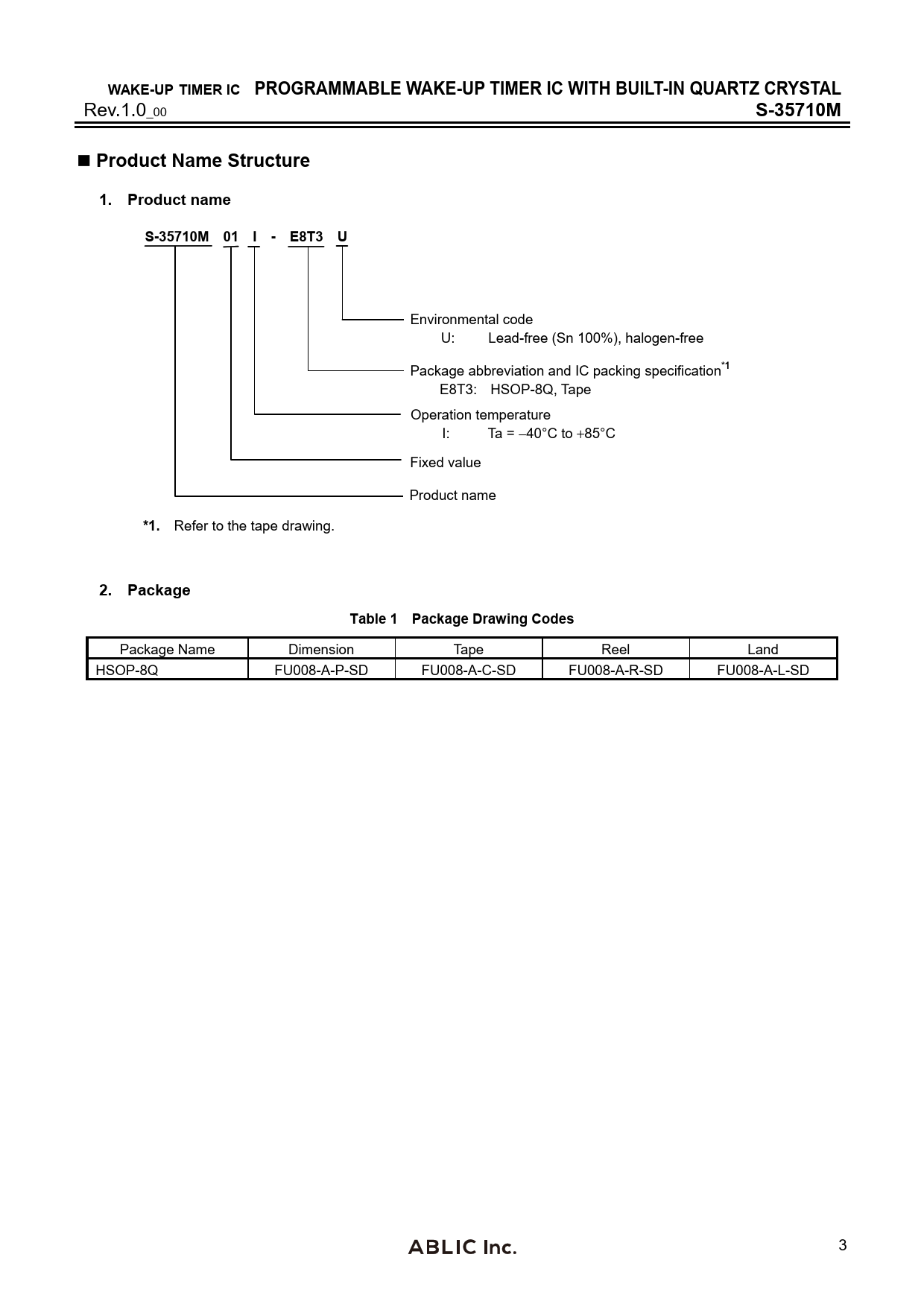

WAKE-UP TIMER IC PROGRAMMABLE WAKE-UP TIMER IC WITH BUILT-IN QUARTZ CRYSTAL
Rev.1.0_00
S-35710M Product Name Structure 1. Product name S-35710M 01 I - E8T3 U
Environmental code U: Lead-free (Sn 100%), halogen-free Package abbreviation and IC packing specification
*1
E8T3: HSOP-8Q, Tape Operation temperature I: Ta = −40°C to +85°C Fixed value Product name
*1.
Refer to the tape drawing.
2. Package Table 1 Package Drawing Codes
Package Name Dimension Tape Reel Land HSOP-8Q FU008-A-P-SD FU008-A-C-SD FU008-A-R-SD FU008-A-L-SD 3
