Datasheet BZX84 (Nexperia) - 12
| 制造商 | Nexperia |
| 描述 | Voltage regulator diodes |
| 页数 / 页 | 16 / 12 — Nexperia. BZX84 series. Voltage regulator diodes. 11. Soldering. Fig 9. … |
| 修订版 | 07082018 |
| 文件格式/大小 | PDF / 1.0 Mb |
| 文件语言 | 英语 |

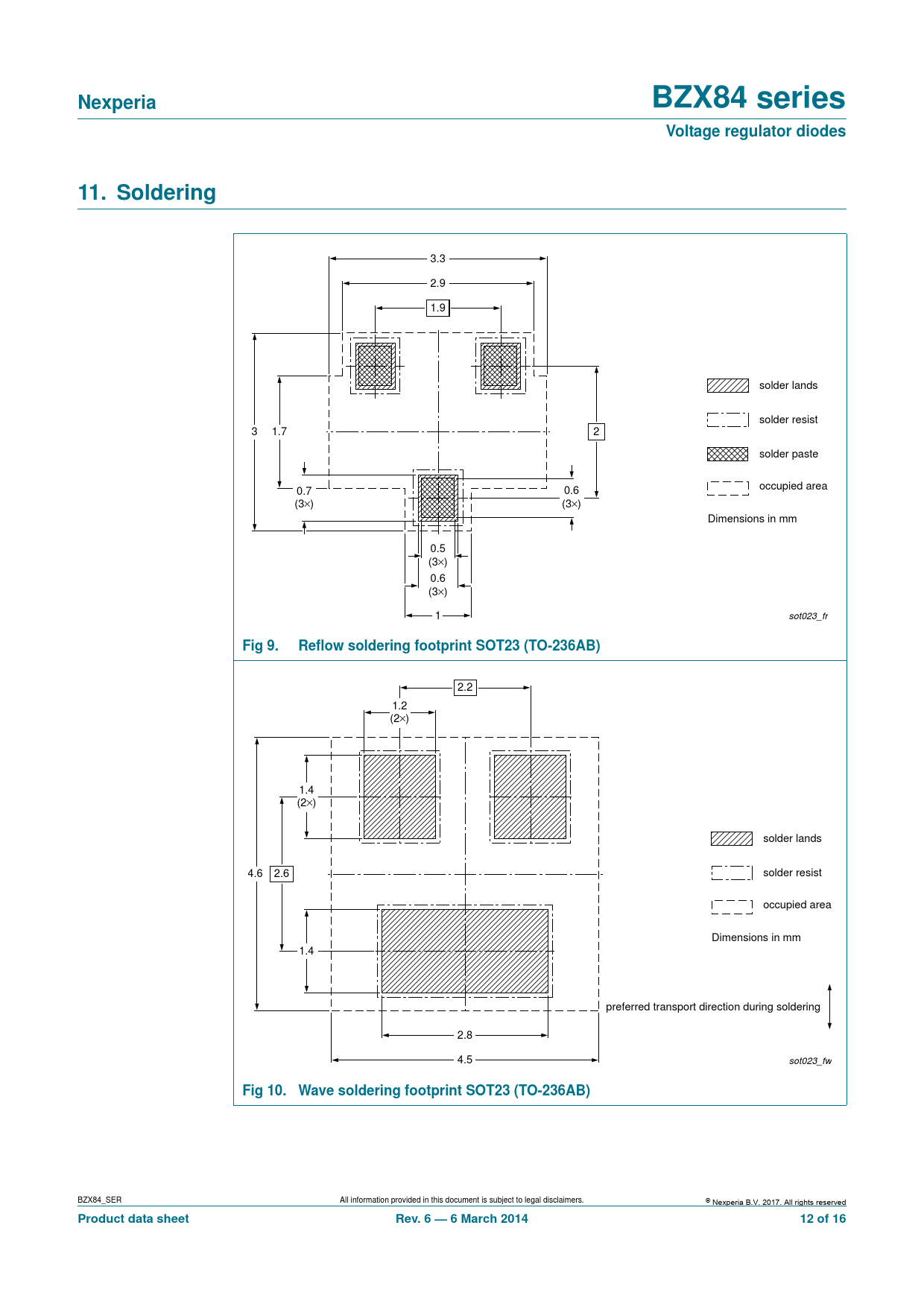

Nexperia. BZX84 series. Voltage regulator diodes. 11. Soldering. Fig 9. Reflow soldering footprint SOT23 (TO-236AB)
该数据表的模型线
- BZX84-A10,215 BZX84-A11,215 BZX84-A12,215 BZX84-A13,215 BZX84-A15,215 BZX84-A16,215 BZX84-A20,215 BZX84-A22,215 BZX84-A22,235 BZX84-A24,215 BZX84-A27,215 BZX84-A2V4,215 BZX84-A2V4,235 BZX84-A2V7,215 BZX84-A30,215 BZX84-A33,215 BZX84-A36,215 BZX84-A39,215 BZX84-A3V0,215 BZX84-A3V3,215 BZX84-A3V6,215 BZX84-A3V9,215 BZX84-A43,215 BZX84-A4V3,215 BZX84-A4V7,215 BZX84-A51,215 BZX84-A5V1,215 BZX84-A5V1,235 BZX84-A5V6,215 BZX84-A6V2,215 BZX84-A6V8,215 BZX84-A75,215 BZX84-A7V5,215 BZX84-A8V2,215 BZX84-A9V1,215 BZX84-B10,215 BZX84-B10,235 BZX84-B11,215 BZX84-B11,235 BZX84-B12,215 BZX84-B13,215 BZX84-B13,235 BZX84-B15,215 BZX84-B15,235 BZX84-B16,215 BZX84-B18,215 BZX84-B18,235 BZX84-B20,215 BZX84-B20,235 BZX84-B22,215 BZX84-B22,235 BZX84-B24,215 BZX84-B27,215 BZX84-B27,235 BZX84-B2V4,215 BZX84-B2V7,215 BZX84-B30,215 BZX84-B33,215 BZX84-B36,215 BZX84-B39,215 BZX84-B3V0,215 BZX84-B3V0,235 BZX84-B3V3,215 BZX84-B3V6,215 BZX84-B3V6VL BZX84-B3V9,215 BZX84-B43,215 BZX84-B47,215 BZX84-B4V3,215 BZX84-B4V3,235 BZX84-B4V7,215 BZX84-B51,215 BZX84-B56,215 BZX84-B5V1,215 BZX84-B5V1,235 BZX84-B5V6,215 BZX84-B5V6,235 BZX84-B62,215 BZX84-B68,215 BZX84-B6V2,215 BZX84-B6V8,215 BZX84-B75,215 BZX84-B7V5,215 BZX84-B7V5,235 BZX84-B8V2,215 BZX84-B8V2,235 BZX84-B9V1,215 BZX84-C10,215 BZX84-C10,235 BZX84-C11,215 BZX84-C11,235 BZX84-C12,215 BZX84-C12,235 BZX84-C13,215 BZX84-C13,235 BZX84-C15,215 BZX84-C15,235 BZX84-C15/CH,235 BZX84-C15/DG,215 BZX84-C16,215 BZX84-C16,235 BZX84-C18,215 BZX84-C18,235 BZX84-C20,215 BZX84-C20,235 BZX84-C22,215 BZX84-C22,235 BZX84-C24,215 BZX84-C24,235 BZX84-C27,215 BZX84-C27,235 BZX84-C2V4,215 BZX84-C2V4,235 BZX84-C2V7,215 BZX84-C2V7,235 BZX84-C30,215 BZX84-C30,235 BZX84-C33,215 BZX84-C33,235 BZX84-C36,215 BZX84-C36,235 BZX84-C39,215 BZX84-C39,235 BZX84-C3V0,215 BZX84-C3V0,235 BZX84-C3V3,215 BZX84-C3V3,235 BZX84-C3V6,215 BZX84-C3V6,235 BZX84-C3V9,215 BZX84-C3V9,235 BZX84-C43,215 BZX84-C47,215 BZX84-C47,235 BZX84-C4V3,215 BZX84-C4V3,235 BZX84-C4V7,215 BZX84-C4V7,235 BZX84-C51,215 BZX84-C51,235 BZX84-C56,215 BZX84-C5V1,215 BZX84-C5V1,235 BZX84-C5V1/DG,215 BZX84-C5V6,215 BZX84-C5V6,235 BZX84-C5V6/CH,235 BZX84-C5V6/DG,215 BZX84-C62,215 BZX84-C62,235 BZX84-C68,215 BZX84-C68,235 BZX84-C6V2,215 BZX84-C6V2,235 BZX84-C6V8,215 BZX84-C6V8,235 BZX84-C75,215 BZX84-C75,235 BZX84-C7V5,215 BZX84-C7V5,235 BZX84-C8V2,215 BZX84-C8V2,235 BZX84-C9V1,215 BZX84-C9V1,235
文件文字版本
Nexperia BZX84 series Voltage regulator diodes 11. Soldering
3.3 2.9 1.9 solder lands solder resist 3 1.7 2 solder paste occupied area 0.7 0.6 (3×) (3×) Dimensions in mm 0.5 (3×) 0.6 (3×) 1 sot023_fr
Fig 9. Reflow soldering footprint SOT23 (TO-236AB)
2.2 1.2 (2×) 1.4 (2×) solder lands 4.6 2.6 solder resist occupied area Dimensions in mm 1.4 preferred transport direction during soldering 2.8 4.5 sot023_fw
Fig 10. Wave soldering footprint SOT23 (TO-236AB)
