MLX90641 16x12 IR array. 1. Features and Benefits. 2. Application Examples. 3. Description

Datasheet MLX90641 Melexis

该数据表的模型线

文件文字版本

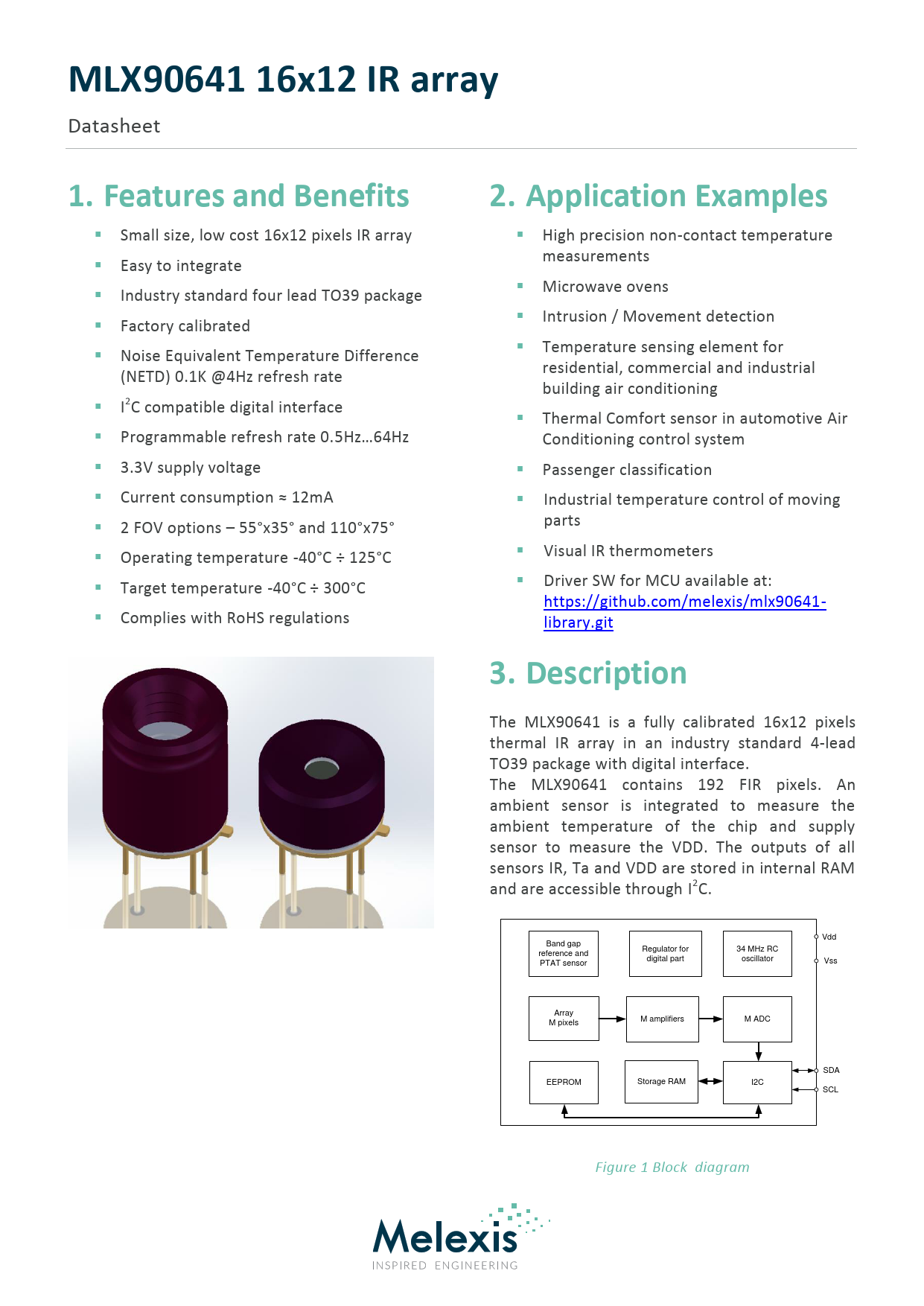

MLX90641 16x12 IR array
Datasheet
1. Features and Benefits 2. Application Examples
 Small size, low cost 16x12 pixels IR array  High precision non-contact temperature  measurements Easy to integrate   Microwave ovens Industry standard four lead TO39 package   Intrusion / Movement detection Factory calibrated   Temperature sensing element for Noise Equivalent Temperature Difference residential, commercial and industrial (NETD) 0.1K @4Hz refresh rate building air conditioning  I2C compatible digital interface  Thermal Comfort sensor in automotive Air  Programmable refresh rate 0.5Hz…64Hz Conditioning control system  3.3V supply voltage  Passenger classification  Current consumption ≈ 12mA  Industrial temperature control of moving  2 FOV options – 55°x35° and 110°x75° parts   Operating temperature -40°C ÷ 125°C Visual IR thermometers   Target temperature -40°C ÷ 300°C Driver SW for MCU available at: https://github.com/melexis/mlx90641-  Complies with RoHS regulations library.git
3. Description
The MLX90641 is a fully calibrated 16x12 pixels thermal IR array in an industry standard 4-lead TO39 package with digital interface. The MLX90641 contains 192 FIR pixels. An ambient sensor is integrated to measure the ambient temperature of the chip and supply sensor to measure the VDD. The outputs of all sensors IR, Ta and VDD are stored in internal RAM and are accessible through I2C. Vdd Band gap Regulator for 34 MHz RC reference and digital part oscillator PTAT sensor Vss Array M amplifiers M ADC M pixels SDA EEPROM Storage RAM I2C SCL Figure 1 Block diagram
