Datasheet ADL5611 (Analog Devices) - 4

制造商Analog Devices
描述30 MHz to 6 GHz RF/IF Gain Block
页数 / 页16 / 4 — ADL5611. Data Sheet. Parameter. Test Conditions/Comments. Min. Typ. Max. …
修订版B
文件格式/大小PDF / 503 Kb
文件语言英语

ADL5611. Data Sheet. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit

ADL5611 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit

该数据表的模型线

文件文字版本

link to page 5 link to page 5 link to page 5 link to page 5 link to page 5
ADL5611 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit

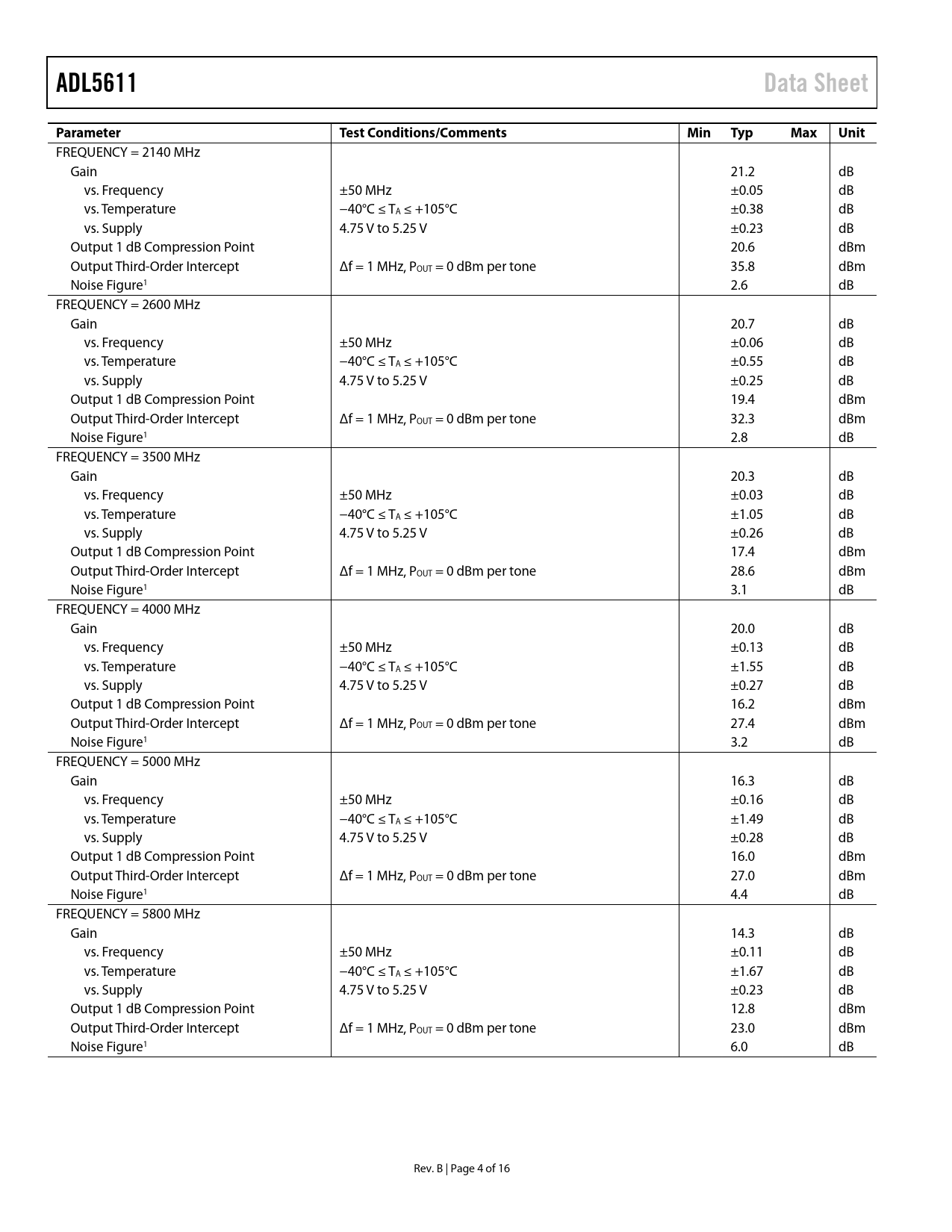

FREQUENCY = 2140 MHz Gain 21.2 dB vs. Frequency ±50 MHz ±0.05 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±0.38 dB vs. Supply 4.75 V to 5.25 V ±0.23 dB Output 1 dB Compression Point 20.6 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 0 dBm per tone 35.8 dBm Noise Figure1 2.6 dB FREQUENCY = 2600 MHz Gain 20.7 dB vs. Frequency ±50 MHz ±0.06 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±0.55 dB vs. Supply 4.75 V to 5.25 V ±0.25 dB Output 1 dB Compression Point 19.4 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 0 dBm per tone 32.3 dBm Noise Figure1 2.8 dB FREQUENCY = 3500 MHz Gain 20.3 dB vs. Frequency ±50 MHz ±0.03 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±1.05 dB vs. Supply 4.75 V to 5.25 V ±0.26 dB Output 1 dB Compression Point 17.4 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 0 dBm per tone 28.6 dBm Noise Figure1 3.1 dB FREQUENCY = 4000 MHz Gain 20.0 dB vs. Frequency ±50 MHz ±0.13 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±1.55 dB vs. Supply 4.75 V to 5.25 V ±0.27 dB Output 1 dB Compression Point 16.2 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 0 dBm per tone 27.4 dBm Noise Figure1 3.2 dB FREQUENCY = 5000 MHz Gain 16.3 dB vs. Frequency ±50 MHz ±0.16 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±1.49 dB vs. Supply 4.75 V to 5.25 V ±0.28 dB Output 1 dB Compression Point 16.0 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 0 dBm per tone 27.0 dBm Noise Figure1 4.4 dB FREQUENCY = 5800 MHz Gain 14.3 dB vs. Frequency ±50 MHz ±0.11 dB vs. Temperature −40°C ≤ TA ≤ +105°C ±1.67 dB vs. Supply 4.75 V to 5.25 V ±0.23 dB Output 1 dB Compression Point 12.8 dBm Output Third-Order Intercept Δf = 1 MHz, POUT = 0 dBm per tone 23.0 dBm Noise Figure1 6.0 dB Rev. B | Page 4 of 16 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS (S-PARAMETERS) ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS 500 MHz TO 6 GHz FREQUENCY BAND 30 MHz TO 500 MHz FREQUENCY BAND GENERAL APPLICATIONS INFORMATION BASIC CONNECTIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN W-CDMA ACPR PERFORMANCE EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
