Datasheet 7UL1G08FS (Toshiba)

制造商Toshiba
描述Single 2-Input AND Gate. L-MOS LVP series
页数 / 页8 / 1 — 7UL1G08FS. CMOS. Digital. Integrated. Circuits. Silicon. Monolithic. …
文件格式/大小PDF / 155 Kb
文件语言英语

7UL1G08FS. CMOS. Digital. Integrated. Circuits. Silicon. Monolithic. 7UL1G08FS. 1. Functional. Description. •. 2-Input. AND. Gate. 2. Features. (1). High

Datasheet 7UL1G08FS Toshiba

该数据表的模型线

7UL1G

文件文字版本

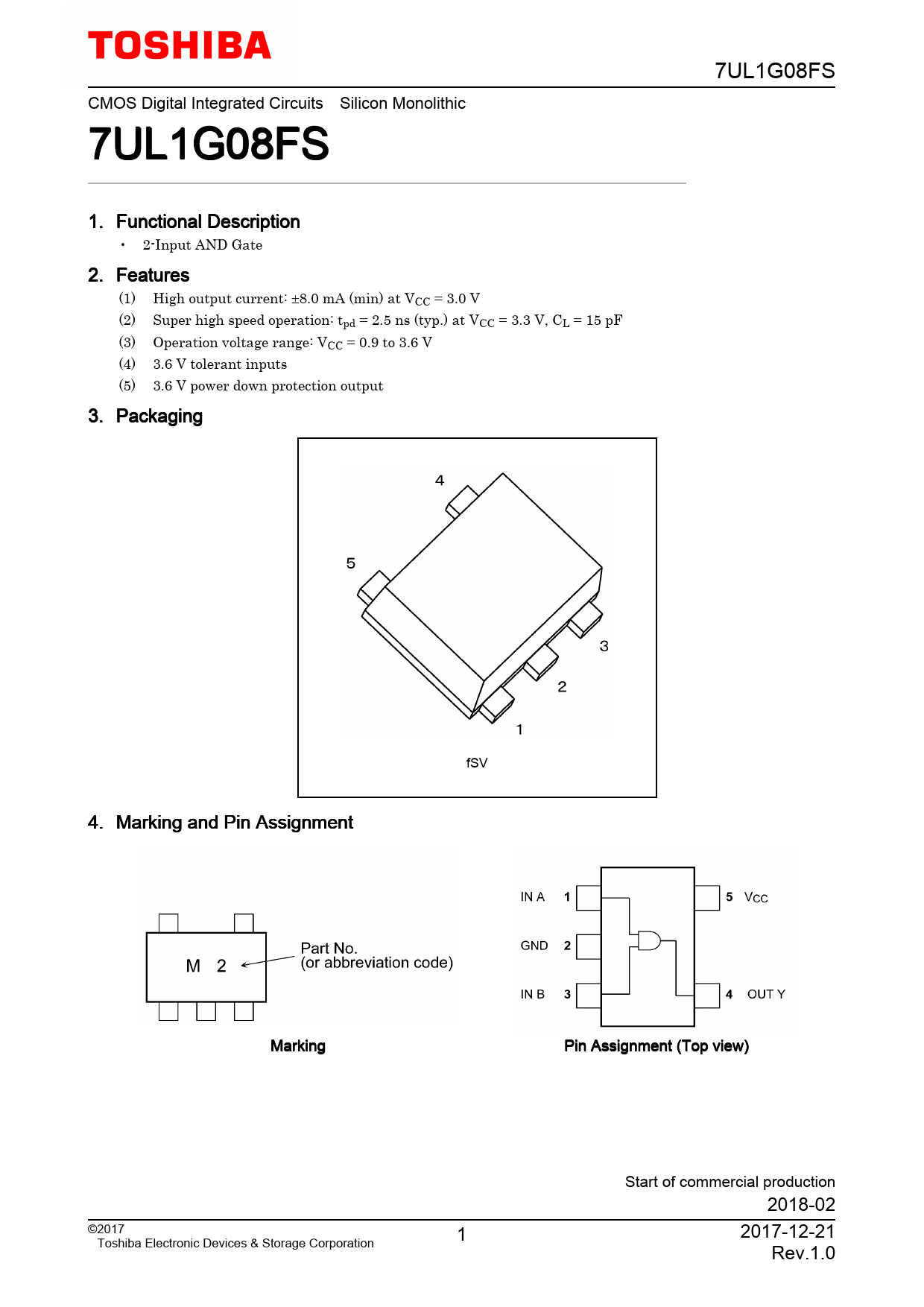

7UL1G08FS CMOS Digital Integrated Circuits Silicon Monolithic 7UL1G08FS 1. Functional Description • 2-Input AND Gate 2. Features (1) High output current: ±8.0 mA (min) at VCC = 3.0 V (2) Super high speed operation: tpd = 2.5 ns (typ.) at VCC = 3.3 V, CL = 15 pF (3) Operation voltage range: VCC = 0.9 to 3.6 V (4) 3.6 V tolerant inputs (5) 3.6 V power down protection output 3. Packaging fSV 4. Marking and Pin Assignment Marking Pin Assignment (Top view) Start of commercial production 2018-02 ©2017 1 2017-12-21 Toshiba Electronic Devices & Storage Corporation Rev.1.0
