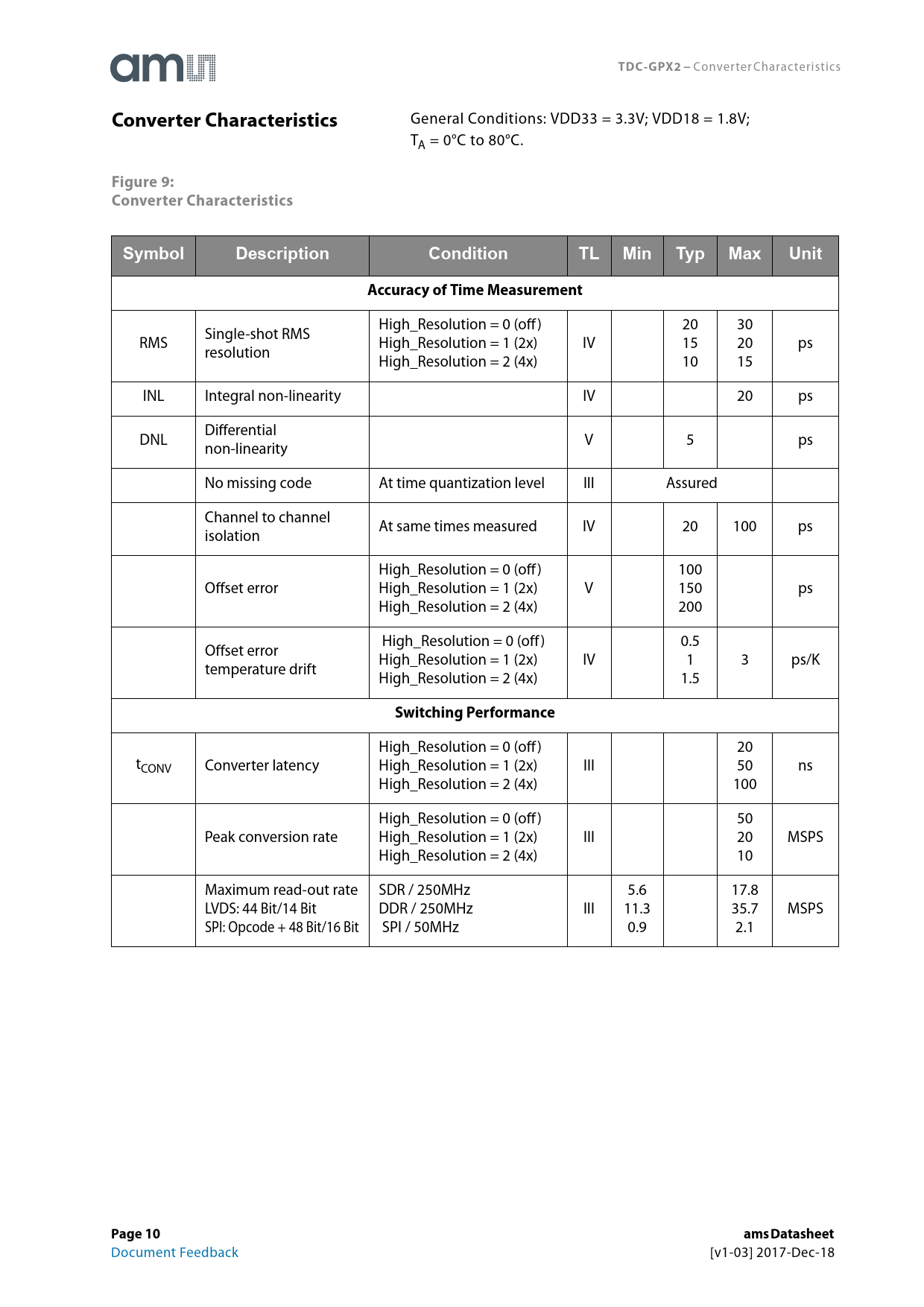

TDC-GPX2 −. Converter Characteristics. Figure 9: Converter Characteristics. Symbol. Description. Condition. Min. Typ. Max. Unit

TDC-GPX2 − Converter Characteristics Figure 9: Converter Characteristics Symbol Description Condition Min Typ Max Unit

该数据表的模型线

文件文字版本

TDC-GPX2 −
Conver ter Characteristics General Conditions: VDD33 = 3.3V; VDD18 = 1.8V;
Converter Characteristics
TA = 0°C to 80°C.
Figure 9: Converter Characteristics Symbol Description Condition TL Min Typ Max Unit Accuracy of Time Measurement
High_Resolution = 0 (off ) 20 30 Single-shot RMS RMS High_Resolution = 1 (2x) IV 15 20 ps resolution High_Resolution = 2 (4x) 10 15 INL Integral non-linearity IV 20 ps Differential DNL V 5 ps non-linearity No missing code At time quantization level III Assured Channel to channel At same times measured IV 20 100 ps isolation High_Resolution = 0 (off ) 100 Offset error High_Resolution = 1 (2x) V 150 ps High_Resolution = 2 (4x) 200 High_Resolution = 0 (off ) 0.5 Offset error High_Resolution = 1 (2x) IV 1 3 ps/K temperature drift High_Resolution = 2 (4x) 1.5
Switching Performance
High_Resolution = 0 (off ) 20 tCONV Converter latency High_Resolution = 1 (2x) III 50 ns High_Resolution = 2 (4x) 100 High_Resolution = 0 (off ) 50 Peak conversion rate High_Resolution = 1 (2x) III 20 MSPS High_Resolution = 2 (4x) 10 Maximum read-out rate SDR / 250MHz 5.6 17.8 LVDS: 44 Bit/14 Bit DDR / 250MHz III 11.3 35.7 MSPS SPI: Opcode + 48 Bit/16 Bit SPI / 50MHz 0.9 2.1
