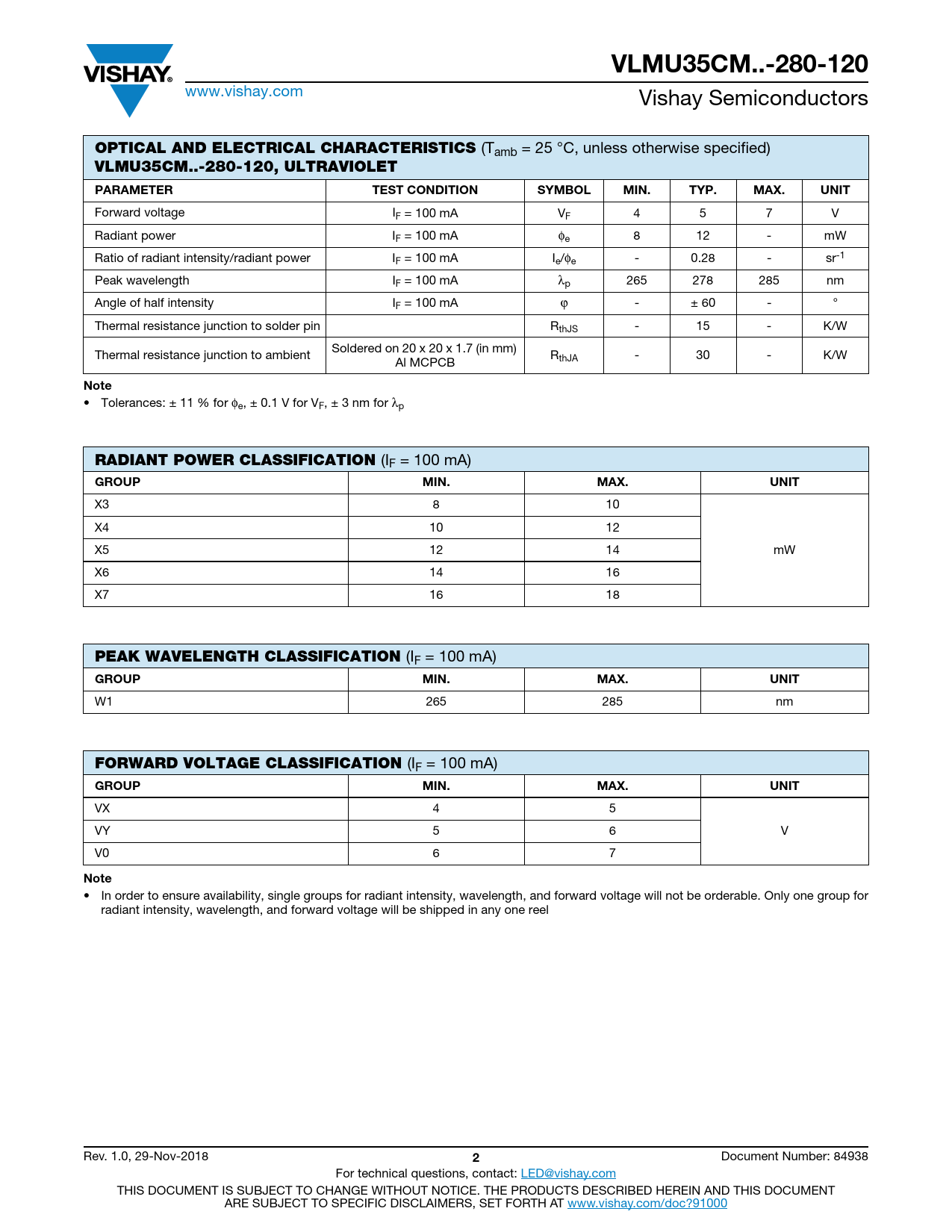

VLMU35CM..-280-120
www.vishay.com Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMU35CM..-280-120, ULTRAVIOLET PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Forward voltage IF = 100 mA VF 4 5 7 V Radiant power IF = 100 mA φe 8 12 - mW Ratio of radiant intensity/radiant power IF = 100 mA Ie/φe - 0.28 - sr-1 Peak wavelength IF = 100 mA λp 265 278 285 nm Angle of half intensity IF = 100 mA ϕ - ± 60 - ° Thermal resistance junction to solder pin RthJS - 15 - K/W Soldered on 20 x 20 x 1.7 (in mm) Thermal resistance junction to ambient R Al MCPCB thJA - 30 - K/W
Note
• Tolerances: ± 11 % for φe, ± 0.1 V for VF, ± 3 nm for λp
RADIANT POWER CLASSIFICATION
(IF = 100 mA)
GROUP MIN. MAX. UNIT
X3 8 10 X4 10 12 X5 12 14 mW X6 14 16 X7 16 18
PEAK WAVELENGTH CLASSIFICATION
(IF = 100 mA)
GROUP MIN. MAX. UNIT
W1 265 285 nm
FORWARD VOLTAGE CLASSIFICATION
(IF = 100 mA)
GROUP MIN. MAX. UNIT
VX 4 5 VY 5 6 V V0 6 7
Note
• In order to ensure availability, single groups for radiant intensity, wavelength, and forward voltage will not be orderable. Only one group for radiant intensity, wavelength, and forward voltage will be shipped in any one reel Rev. 1.0, 29-Nov-2018
