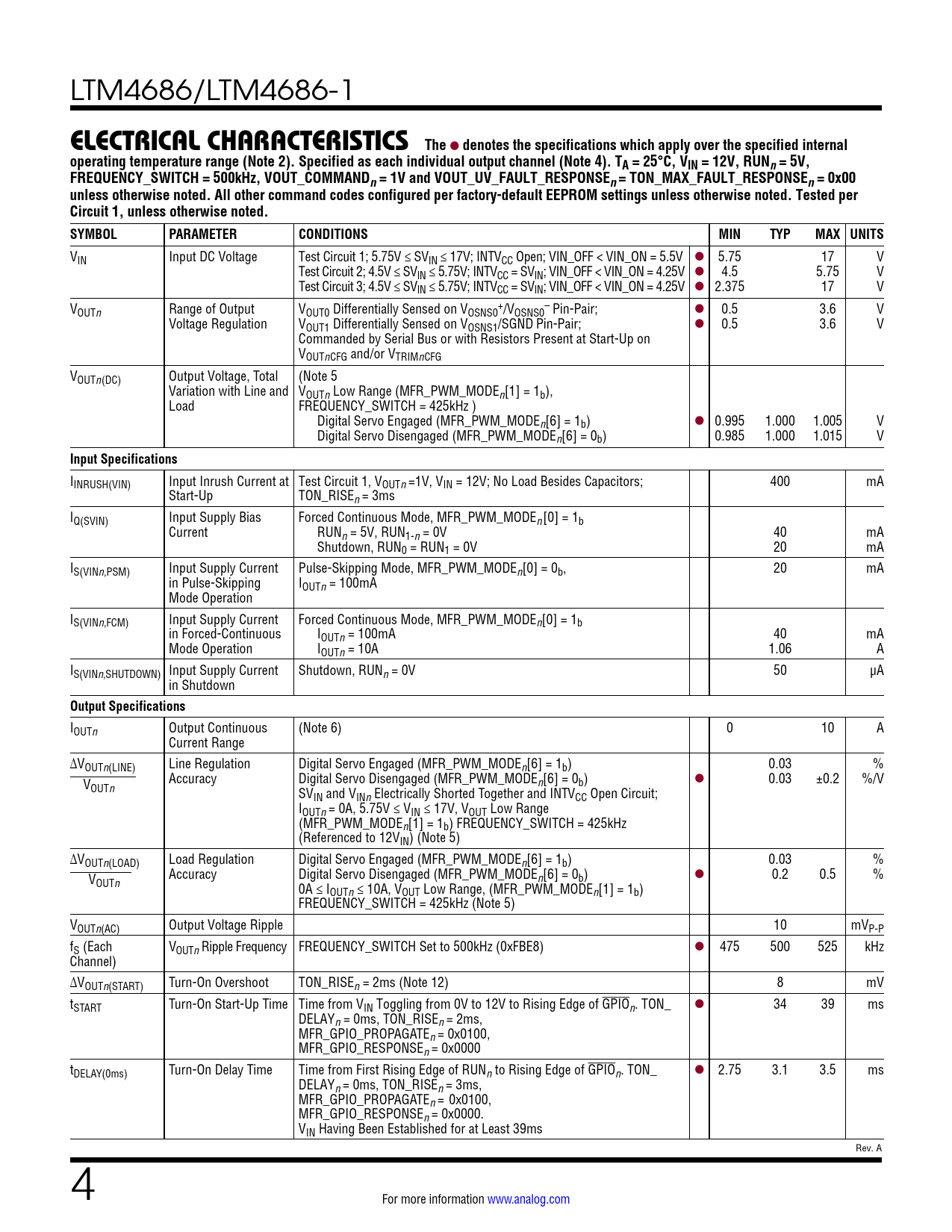

LTM4686/LTM4686-1
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the specified internal operating temperature range (Note 2). Specified as each individual output channel (Note 4). TA = 25°C, VIN = 12V, RUNn = 5V, FREQUENCY_SWITCH = 500kHz, VOUT_COMMANDn = 1V and VOUT_UV_FAULT_RESPONSEn = TON_MAX_FAULT_RESPONSEn = 0x00 unless otherwise noted. All other command codes configured per factory-default EEPROM settings unless otherwise noted. Tested per Circuit 1, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN Input DC Voltage Test Circuit 1; 5.75V ≤ SVIN ≤ 17V; INTVCC Open; VIN_OFF < VIN_ON = 5.5V l 5.75 17 V Test Circuit 2; 4.5V ≤ SVIN ≤ 5.75V; INTVCC = SVIN; VIN_OFF < VIN_ON = 4.25V l 4.5 5.75 V Test Circuit 3; 4.5V ≤ SVIN ≤ 5.75V; INTVCC = SVIN; VIN_OFF < VIN_ON = 4.25V l 2.375 17 V V + – OUTn Range of Output VOUT0 Differentially Sensed on VOSNS0 /VOSNS0 Pin-Pair; l 0.5 3.6 V Voltage Regulation VOUT1 Differentially Sensed on VOSNS1/SGND Pin-Pair; l 0.5 3.6 V Commanded by Serial Bus or with Resistors Present at Start-Up on VOUTnCFG and/or VTRIMnCFG VOUTn(DC) Output Voltage, Total (Note 5 Variation with Line and VOUTn Low Range (MFR_PWM_MODEn[1] = 1b), Load FREQUENCY_SWITCH = 425kHz ) Digital Servo Engaged (MFR_PWM_MODEn[6] = 1b) l 0.995 1.000 1.005 V Digital Servo Disengaged (MFR_PWM_MODEn[6] = 0b) 0.985 1.000 1.015 V
