Datasheet LTM2886 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | SPI/Digital or I2C μModule Isolator with Fixed ±5V and Adjustable 5V Regulated Power |
| 页数 / 页 | 38 / 3 — PRODUCT SELECTION GUIDE. LTM2886 C. #PBF. LEAD FREE DESIGNATOR. LOGIC … |
| 文件格式/大小 | PDF / 1.0 Mb |
| 文件语言 | 英语 |

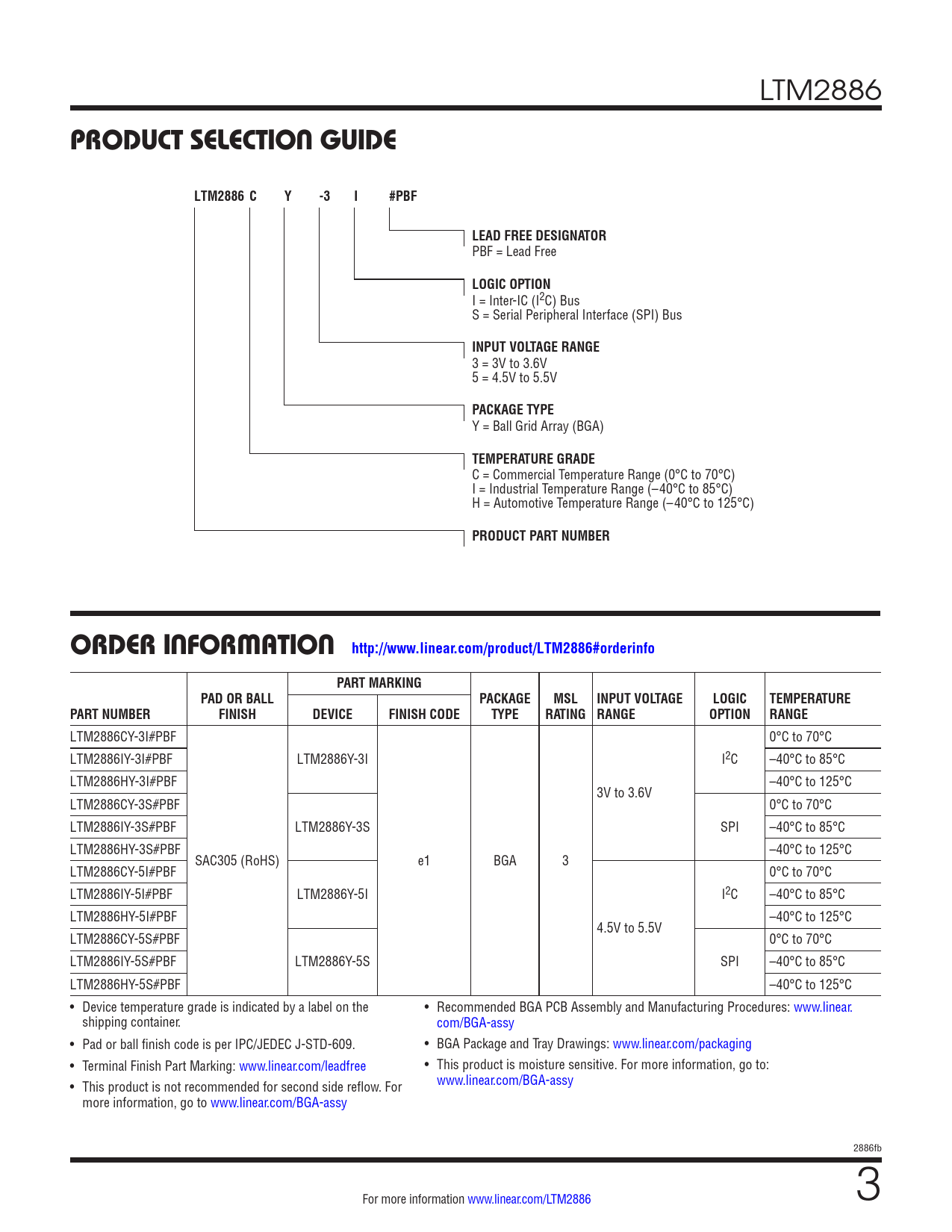

PRODUCT SELECTION GUIDE. LTM2886 C. #PBF. LEAD FREE DESIGNATOR. LOGIC OPTION. INPUT VOLTAGE RANGE. PACKAGE TYPE. TEMPERATURE GRADE
该数据表的模型线
文件文字版本
LTM2886
PRODUCT SELECTION GUIDE LTM2886 C Y -3 I #PBF LEAD FREE DESIGNATOR
PBF = Lead Free
LOGIC OPTION
I = Inter-IC (I2C) Bus S = Serial Peripheral Interface (SPI) Bus
INPUT VOLTAGE RANGE
3 = 3V to 3.6V 5 = 4.5V to 5.5V
PACKAGE TYPE
Y = Ball Grid Array (BGA)
TEMPERATURE GRADE
C = Commercial Temperature Range (0°C to 70°C) I = Industrial Temperature Range (–40°C to 85°C) H = Automotive Temperature Range (–40°C to 125°C)
PRODUCT PART NUMBER ORDER INFORMATION http://www.linear.com/product/LTM2886#orderinfo PART MARKING PAD OR BALL PACKAGE MSL INPUT VOLTAGE LOGIC TEMPERATURE PART NUMBER FINISH DEVICE FINISH CODE TYPE RATING RANGE OPTION RANGE
LTM2886CY-3I#PBF 0°C to 70°C LTM2886IY-3I#PBF LTM2886Y-3I I2C –40°C to 85°C LTM2886HY-3I#PBF –40°C to 125°C 3V to 3.6V LTM2886CY-3S#PBF 0°C to 70°C LTM2886IY-3S#PBF LTM2886Y-3S SPI –40°C to 85°C LTM2886HY-3S#PBF –40°C to 125°C SAC305 (RoHS) e1 BGA 3 LTM2886CY-5I#PBF 0°C to 70°C LTM2886IY-5I#PBF LTM2886Y-5I I2C –40°C to 85°C LTM2886HY-5I#PBF –40°C to 125°C 4.5V to 5.5V LTM2886CY-5S#PBF 0°C to 70°C LTM2886IY-5S#PBF LTM2886Y-5S SPI –40°C to 85°C LTM2886HY-5S#PBF –40°C to 125°C • Device temperature grade is indicated by a label on the • Recommended BGA PCB Assembly and Manufacturing Procedures: www.linear. shipping container. com/BGA-assy • Pad or ball finish code is per IPC/JEDEC J-STD-609. • BGA Package and Tray Drawings: www.linear.com/packaging • Terminal Finish Part Marking: www.linear.com/leadfree • This product is moisture sensitive. For more information, go to: • This product is not recommended for second side reflow. For www.linear.com/BGA-assy more information, go to www.linear.com/BGA-assy 2886fb For more information www.linear.com/LTM2886 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Product Selection Guide Order Information Electrical Characteristics Switching Characteristics Isolation Characteristics Typical Performance Characteristics Pin Functions Block Diagrams Test Circuits Applications Information Typical Applications Package Description Typical Application Related Parts
