LT1028/LT1128

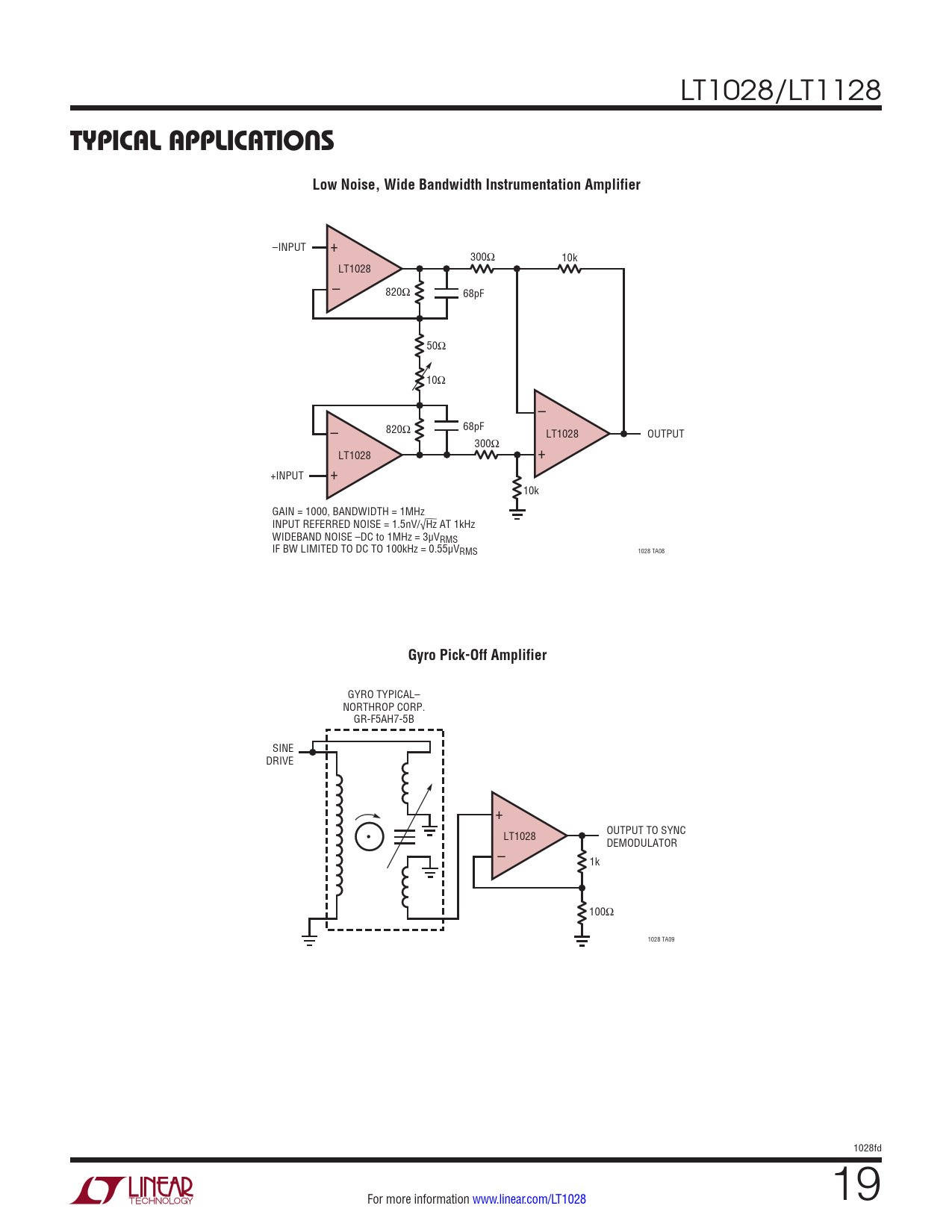

TYPICAL APPLICATIONS Low Noise, Wide Bandwidth Instrumentation Amplifier
–INPUT + 300Ω 10k LT1028 – 820Ω 68pF 50Ω 10Ω – – 820Ω 68pF LT1028 OUTPUT 300Ω LT1028 + +INPUT + 10k GAIN = 1000, BANDWIDTH = 1MHz INPUT REFERRED NOISE = 1.5nV/√Hz AT 1kHz WIDEBAND NOISE –DC to 1MHz = 3µVRMS IF BW LIMITED TO DC TO 100kHz = 0.55µVRMS 1028 TA08
Gyro Pick-Off Amplifier
GYRO TYPICAL– NORTHROP CORP. GR-F5AH7-5B SINE DRIVE + OUTPUT TO SYNC • LT1028 DEMODULATOR – 1k 100Ω 1028 TA09 1028fd For more information www.linear.com/LT1028 19 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information - Noise Applications Information Typical Applications Schematic Diagram Package Description Revision History Typical Application Related Parts
