Datasheet LT1468-2 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | 200MHz, 30V/μs 16-Bit Accurate AV ≥ 2 Op Amp |
| 页数 / 页 | 14 / 2 — absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion … |
| 文件格式/大小 | PDF / 262 Kb |
| 文件语言 | 英语 |

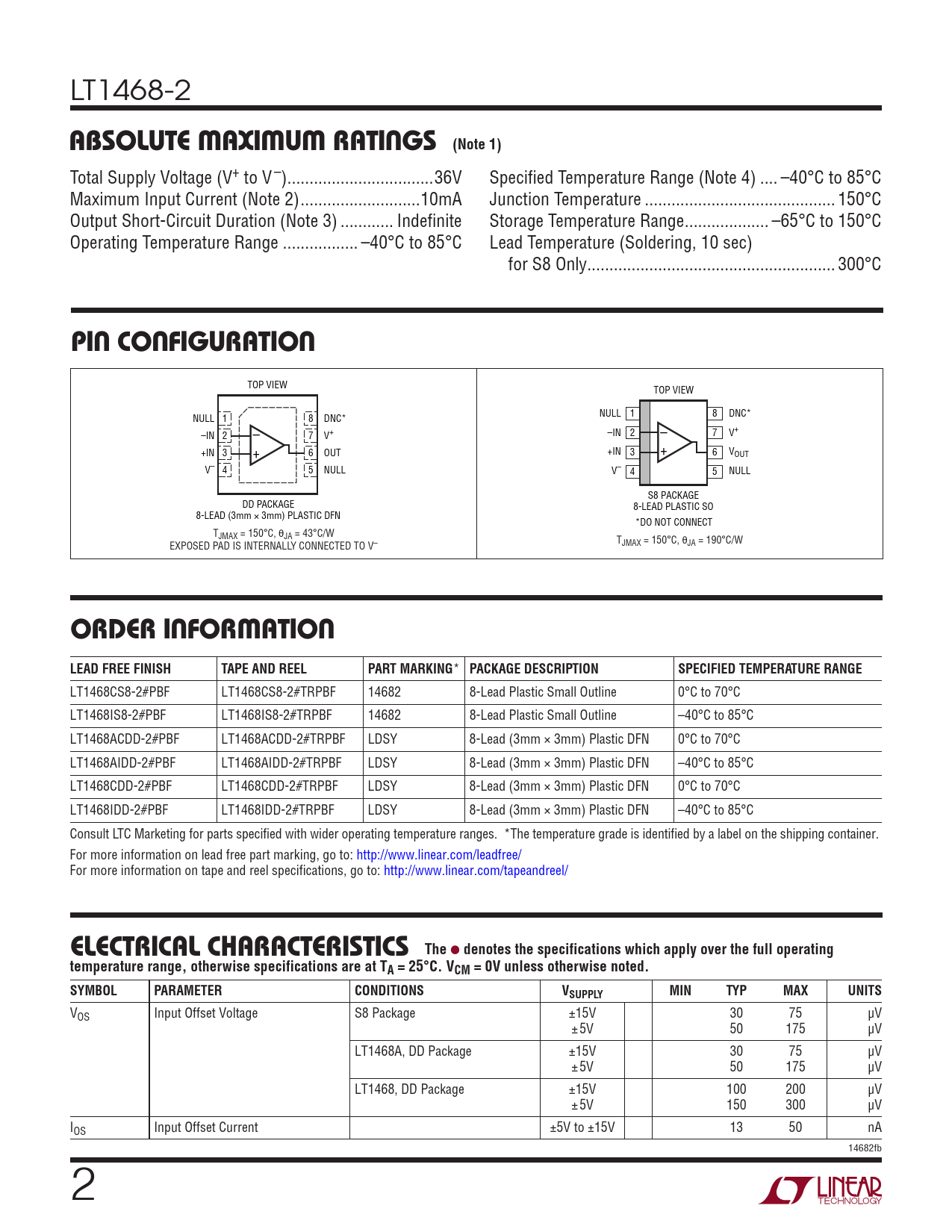

absoluTe MaxiMuM raTings (Note 1). pin conFiguraTion. orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING
该数据表的模型线
文件文字版本
LT1468-2
absoluTe MaxiMuM raTings (Note 1)
Total Supply Voltage (V+ to V–) ...36V Specified Temperature Range (Note 4) .. –40°C to 85°C Maximum Input Current (Note 2) ...10mA Junction Temperature ... 150°C Output Short-Circuit Duration (Note 3) .. Indefinite Storage Temperature Range ... –65°C to 150°C Operating Temperature Range ... –40°C to 85°C Lead Temperature (Soldering, 10 sec) for S8 Only .. 300°C
pin conFiguraTion
TOP VIEW TOP VIEW NULL 1 8 DNC* NULL 1 8 DNC* – – –IN 2 7 V+ –IN 2 7 V+ + + +IN 3 6 OUT +IN 3 6 VOUT V– 4 5 NULL V– 4 5 NULL S8 PACKAGE DD PACKAGE 8-LEAD PLASTIC SO 8-LEAD (3mm × 3mm) PLASTIC DFN *DO NOT CONNECT T JMAX = 150°C, θJA = 43°C/W EXPOSED PAD IS INTERNALLY CONNECTED TO V– TJMAX = 150°C, θJA = 190°C/W
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING
*
PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1468CS8-2#PBF LT1468CS8-2#TRPBF 14682 8-Lead Plastic Small Outline 0°C to 70°C LT1468IS8-2#PBF LT1468IS8-2#TRPBF 14682 8-Lead Plastic Small Outline –40°C to 85°C LT1468ACDD-2#PBF LT1468ACDD-2#TRPBF LDSY 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LT1468AIDD-2#PBF LT1468AIDD-2#TRPBF LDSY 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LT1468CDD-2#PBF LT1468CDD-2#TRPBF LDSY 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LT1468IDD-2#PBF LT1468IDD-2#TRPBF LDSY 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
elec Trical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage S8 Package ±15V 30 75 µV ±5V 50 175 µV LT1468A, DD Package ±15V 30 75 µV ±5V 50 175 µV LT1468, DD Package ±15V 100 200 µV ±5V 150 300 µV IOS Input Offset Current ±5V to ±15V 13 50 nA 14682fb 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Application Related Parts
