Datasheet LT6203X (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | High Temperature 175°C Dual 100MHz, Rail-to-Rail Input and Output, Ultralow 1.9nV/√Hz Noise, Low Power Op Amp |
| 页数 / 页 | 16 / 2 — absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion. … |
| 文件格式/大小 | PDF / 1.8 Mb |
| 文件语言 | 英语 |
absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion. (http://www.linear.com/product/LT6203X#orderinfo)
该数据表的模型线
文件文字版本

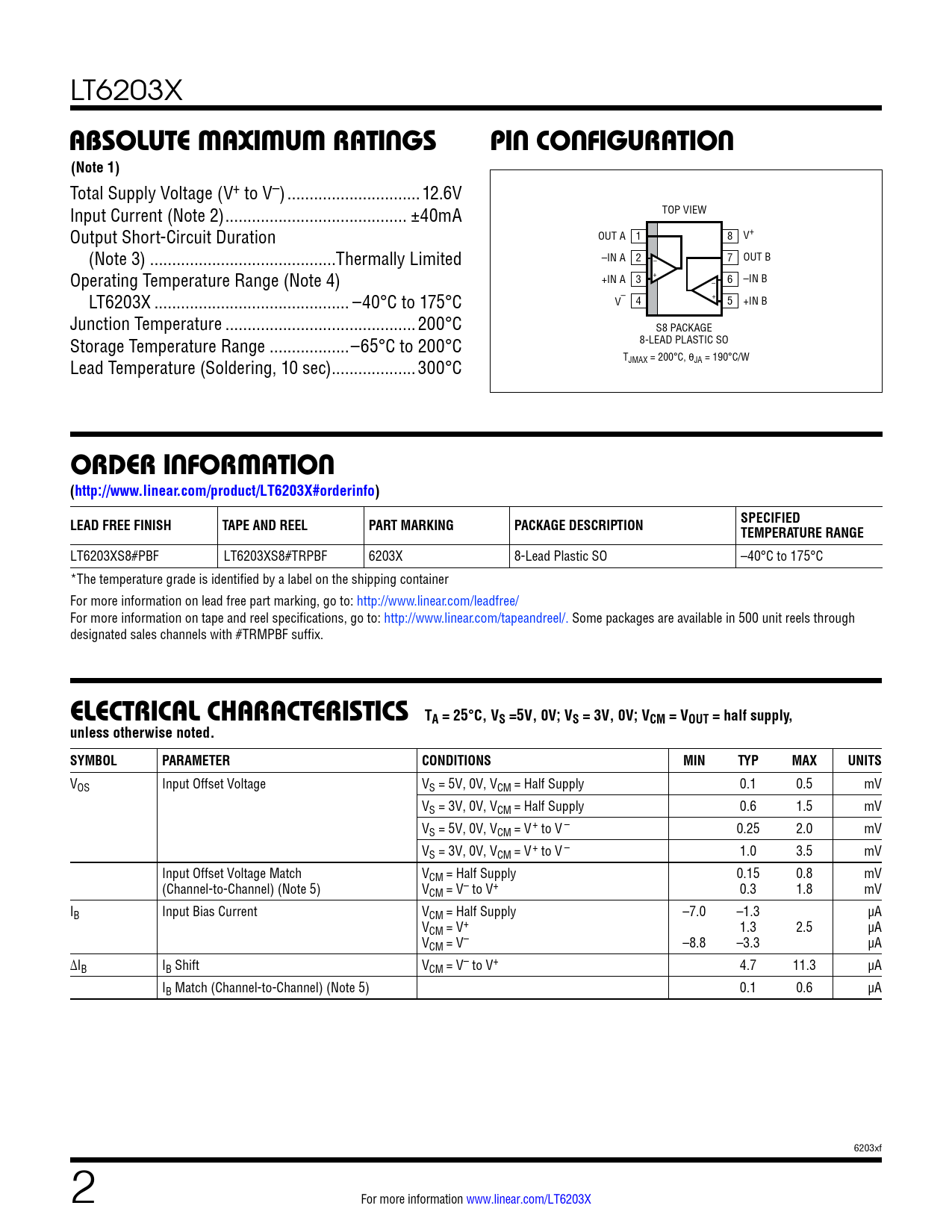

LT6203X
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Total Supply Voltage (V+ to V–) ..12.6V Input Current (Note 2) ... ±40mA TOP VIEW Output Short-Circuit Duration OUT A 1 8 V+ (Note 3) ..Thermally Limited –IN A 2 – 7 OUT B Operating Temperature Range (Note 4) +IN A 3 + – 6 –IN B LT6203X .. –40°C to 175°C + V– 4 5 +IN B Junction Temperature ...200°C S8 PACKAGE Storage Temperature Range ..–65°C to 200°C 8-LEAD PLASTIC SO Lead Temperature (Soldering, 10 sec) ...300°C TJMAX = 200°C, θJA = 190°C/W
orDer inForMaTion (http://www.linear.com/product/LT6203X#orderinfo) LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6203XS8#PBF LT6203XS8#TRPBF 6203X 8-Lead Plastic SO –40°C to 175°C *The temperature grade is identified by a label on the shipping container For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
elecTrical characTerisTics TA = 25°C, VS =5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V, 0V, VCM = Half Supply 0.1 0.5 mV VS = 3V, 0V, VCM = Half Supply 0.6 1.5 mV VS = 5V, 0V, VCM = V+ to V – 0.25 2.0 mV VS = 3V, 0V, VCM = V+ to V – 1.0 3.5 mV Input Offset Voltage Match VCM = Half Supply 0.15 0.8 mV (Channel-to-Channel) (Note 5) VCM = V– to V+ 0.3 1.8 mV IB Input Bias Current VCM = Half Supply –7.0 –1.3 µA VCM = V+ 1.3 2.5 µA VCM = V– –8.8 –3.3 µA ∆IB IB Shift VCM = V– to V+ 4.7 11.3 µA IB Match (Channel-to-Channel) (Note 5) 0.1 0.6 µA 6203xf 2 For more information www.linear.com/LT6203X Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Electrical Characteristics Typical Performance Characteristics Applications Information Typical Application Related Parts Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Applications Information Package Description Typical Application Related Parts
