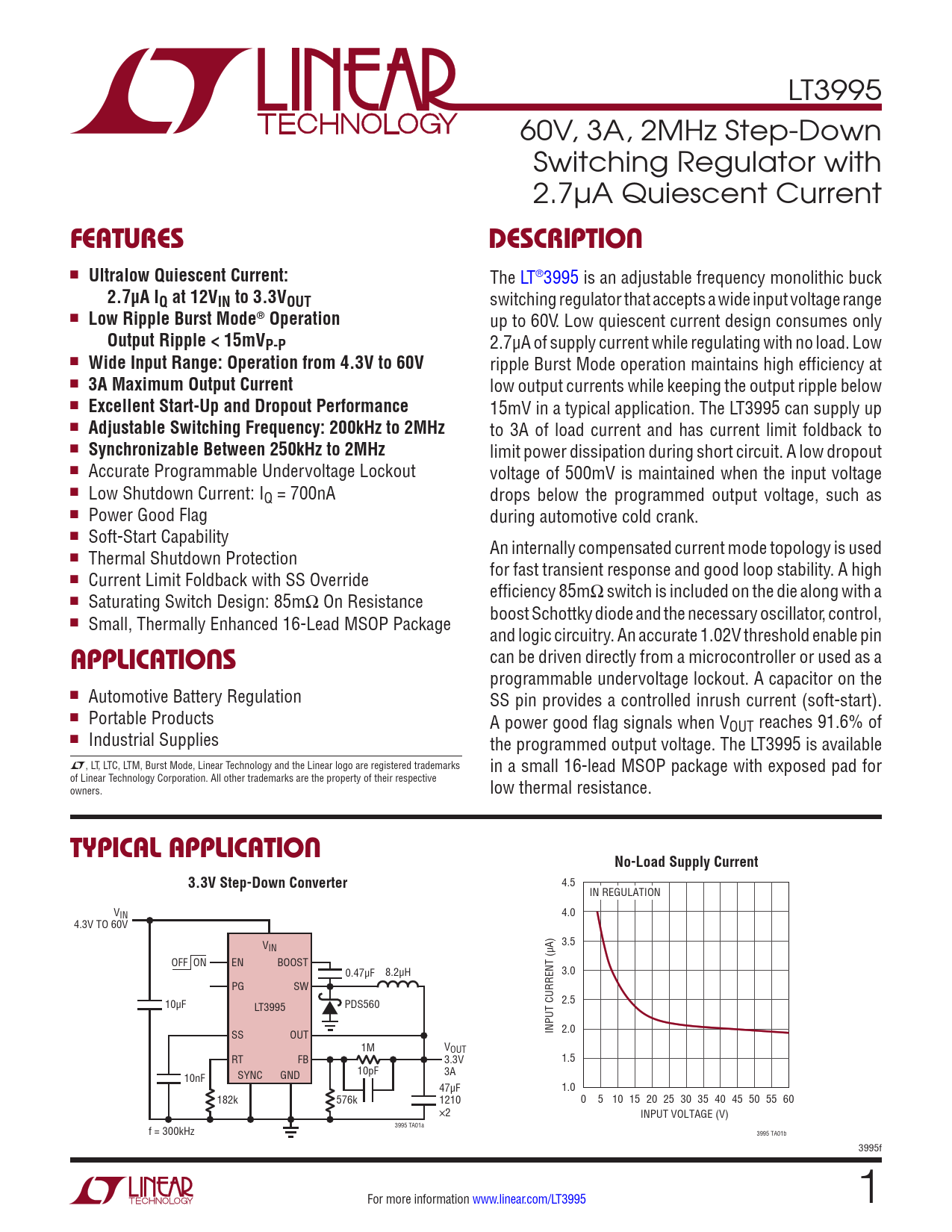

LT3995 60V, 3A, 2MHz Step-Down Switching Regulator with 2.7µA Quiescent Current
FEATURES DESCRIPTION
n
Ultralow Quiescent Current:
The LT®3995 is an adjustable frequency monolithic buck
2.7µA IQ at 12VIN to 3.3VOUT
switching regulator that accepts a wide input voltage range n
Low Ripple Burst Mode® Operation
up to 60V. Low quiescent current design consumes only
Output Ripple < 15mVP-P
2.7µA of supply current while regulating with no load. Low n
Wide Input Range: Operation from 4.3V to 60V
ripple Burst Mode operation maintains high efficiency at n
3A Maximum Output Current
low output currents while keeping the output ripple below n
Excellent Start-Up and Dropout Performance
15mV in a typical application. The LT3995 can supply up n
Adjustable Switching Frequency: 200kHz to 2MHz
to 3A of load current and has current limit foldback to n
Synchronizable Between 250kHz to 2MHz
limit power dissipation during short circuit. A low dropout n Accurate Programmable Undervoltage Lockout voltage of 500mV is maintained when the input voltage n Low Shutdown Current: IQ = 700nA drops below the programmed output voltage, such as n Power Good Flag during automotive cold crank. n Soft-Start Capability An internally compensated current mode topology is used n Thermal Shutdown Protection for fast transient response and good loop stability. A high n Current Limit Foldback with SS Override efficiency 85mΩ switch is included on the die along with a n Saturating Switch Design: 85mΩ On Resistance boost Schottky diode and the necessary oscillator, control, n Small, Thermally Enhanced 16-Lead MSOP Package and logic circuitry. An accurate 1.02V threshold enable pin can be driven directly from a microcontroller or used as a
APPLICATIONS
programmable undervoltage lockout. A capacitor on the n Automotive Battery Regulation SS pin provides a controlled inrush current (soft-start). n Portable Products A power good flag signals when VOUT reaches 91.6% of n Industrial Supplies the programmed output voltage. The LT3995 is available L, LT, LTC, LTM, Burst Mode, Linear Technology and the Linear logo are registered trademarks in a small 16-lead MSOP package with exposed pad for of Linear Technology Corporation. All other trademarks are the property of their respective owners. low thermal resistance.
TYPICAL APPLICATION No-Load Supply Current 3.3V Step-Down Converter
4.5 IN REGULATION VIN 4.0 4.3V TO 60V V 3.5 IN OFF ON EN BOOST 0.47µF 8.2µH 3.0 PG SW 10µF 2.5 LT3995 PDS560 SS OUT INPUT CURRENT (µA) 2.0 1M VOUT RT FB 3.3V 1.5 10pF 10nF 3A SYNC GND 47µF 1.0 182k 576k 1210 0 5 10 15 20 25 30 35 40 45 50 55 60 ×2 INPUT VOLTAGE (V) 3995 TA01a f = 300kHz 3995 TA01b 3995f For more information www.linear.com/LT3995 1 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
