| 制造商 | Analog Devices |
| 描述 | ±15V Zero-Drift Operational Amplifier with Internal Capacitors |
| 页数 / 页 | 16 / 16 — TYPICAL APPLICATIO. DC Stabilized, Low Noise Amplifier |
| 文件格式/大小 | PDF / 245 Kb |
| 文件语言 | 英语 |
TYPICAL APPLICATIO. DC Stabilized, Low Noise Amplifier
该数据表的模型线
文件文字版本
LTC1150

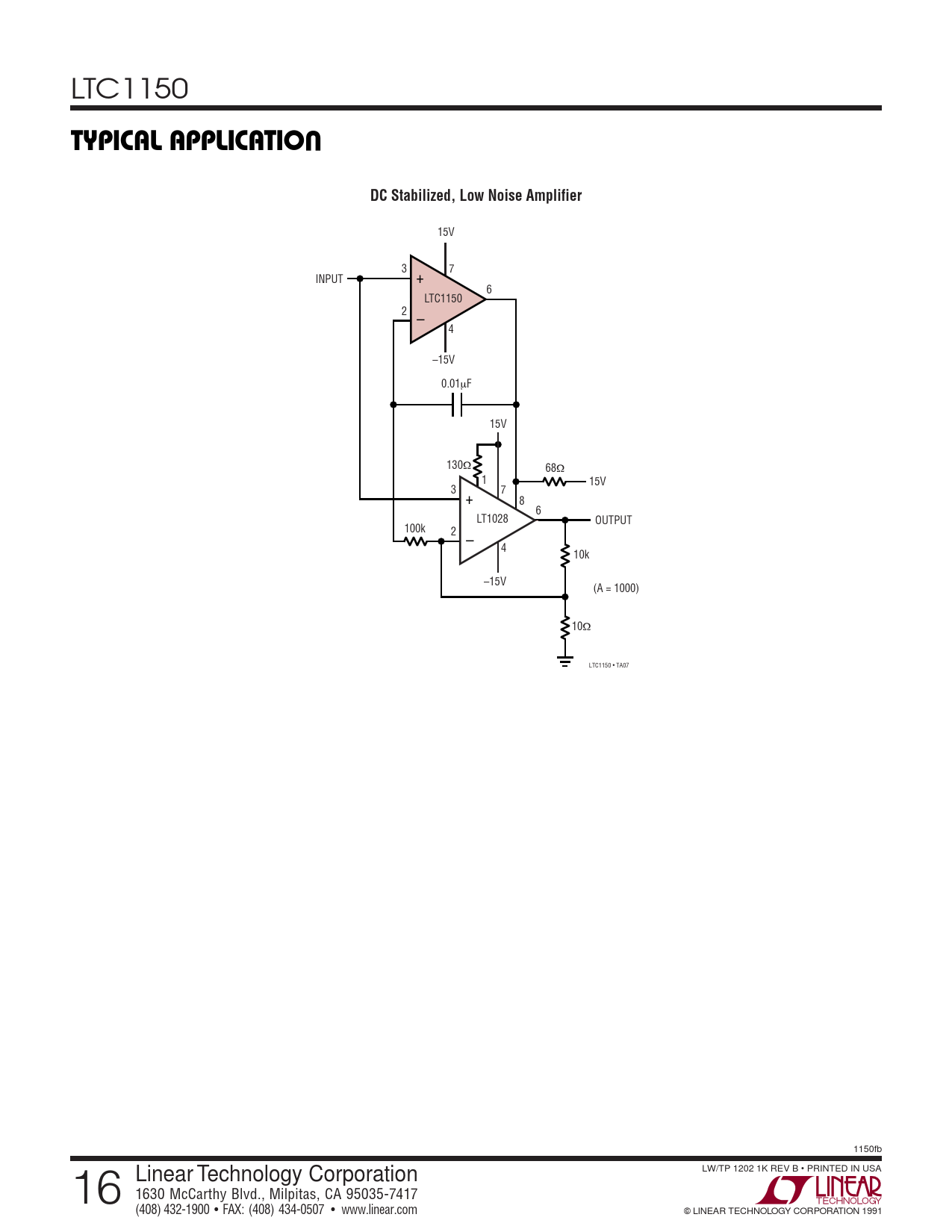

U TYPICAL APPLICATIO DC Stabilized, Low Noise Amplifier
15V 3 7 INPUT + 6 LTC1150 2 – 4 –15V 0.01µF 15V 130Ω 68Ω 1 15V 3 7 + 8 6 LT1028 OUTPUT 100k 2 – 4 10k –15V (A = 1000) 10Ω LTC1150 • TA07 1150fb LW/TP 1202 1K REV B • PRINTED IN USA 16 Linear Technology Corporation 1630 McCarthy Blvd., Milpitas, CA 95035-7417 (408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com LINEAR TECHNOLOGY CORPORATION 1991
