Datasheet LTC6090, LTC6090-5 (Analog Devices) - 21
| 制造商 | Analog Devices |
| 描述 | 140V CMOS Rail-to-Rail Output, Picoamp Input Current Op Amp |
| 页数 / 页 | 26 / 21 — TYPICAL APPLICATIONS. Simple 100W Audio Amplifier. Total Harmonic … |
| 文件格式/大小 | PDF / 1.5 Mb |
| 文件语言 | 英语 |
TYPICAL APPLICATIONS. Simple 100W Audio Amplifier. Total Harmonic Distortion Plus. Noise vs Frequency
该数据表的模型线
- LTC6090CFE#PBF LTC6090CFE#TRPBF LTC6090CFE-5#PBF LTC6090CFE-5#TRPBF LTC6090CS8E#PBF LTC6090CS8E#TRPBF LTC6090CS8E-5#PBF LTC6090CS8E-5#TRPBF LTC6090HFE#PBF LTC6090HFE#TRPBF LTC6090HFE-5#PBF LTC6090HFE-5#TRPBF LTC6090HS8E#PBF LTC6090HS8E#TRPBF LTC6090HS8E-5#PBF LTC6090HS8E-5#TRPBF LTC6090IFE#PBF LTC6090IFE#TRPBF LTC6090IFE-5#PBF LTC6090IFE-5#TRPBF LTC6090IS8E#PBF LTC6090IS8E#TRPBF LTC6090IS8E-5#PBF LTC6090IS8E-5#TRPBF
文件文字版本
LTC6090/LTC6090-5

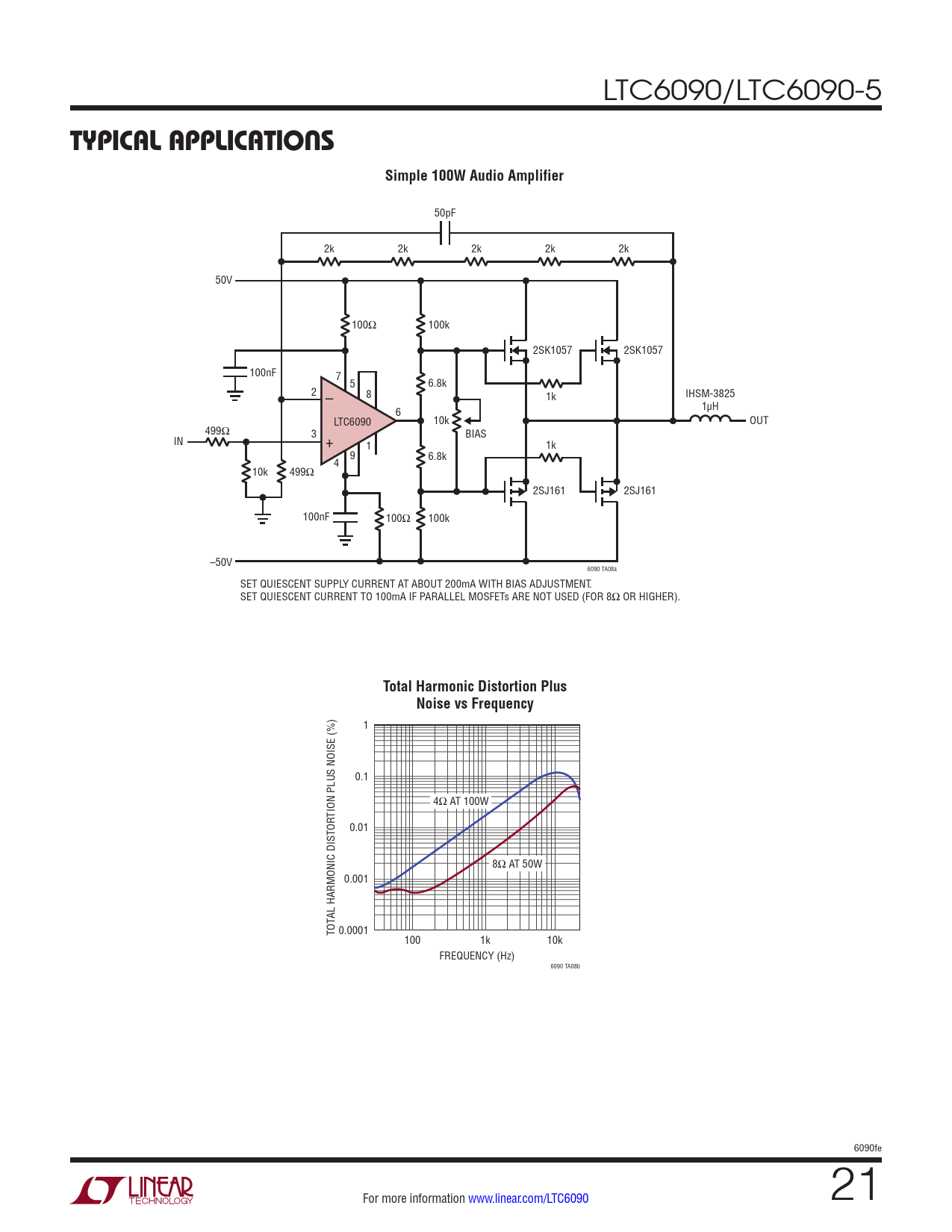

TYPICAL APPLICATIONS Simple 100W Audio Amplifier
50pF 2k 2k 2k 2k 2k 50V 100Ω 100k 2SK1057 2SK1057 100nF 7 5 6.8k 2 – 8 IHSM-3825 1k 6 1µH LTC6090 10k OUT 499Ω 3 BIAS IN + 1 1k 9 6.8k 4 10k 499Ω 2SJ161 2SJ161 100nF 100Ω 100k –50V 6090 TA08a SET QUIESCENT SUPPLY CURRENT AT ABOUT 200mA WITH BIAS ADJUSTMENT. SET QUIESCENT CURRENT TO 100mA IF PARALLEL MOSFETs ARE NOT USED (FOR 8Ω OR HIGHER).
Total Harmonic Distortion Plus Noise vs Frequency
1 0.1 4Ω AT 100W TION PLUS NOISE (%) 0.01 8Ω AT 50W 0.001 AL HARMONIC DISTOR TOT 0.0001 100 1k 10k FREQUENCY (Hz) 6090 TA08b 6090fe For more information www.linear.com/LTC6090 21 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
