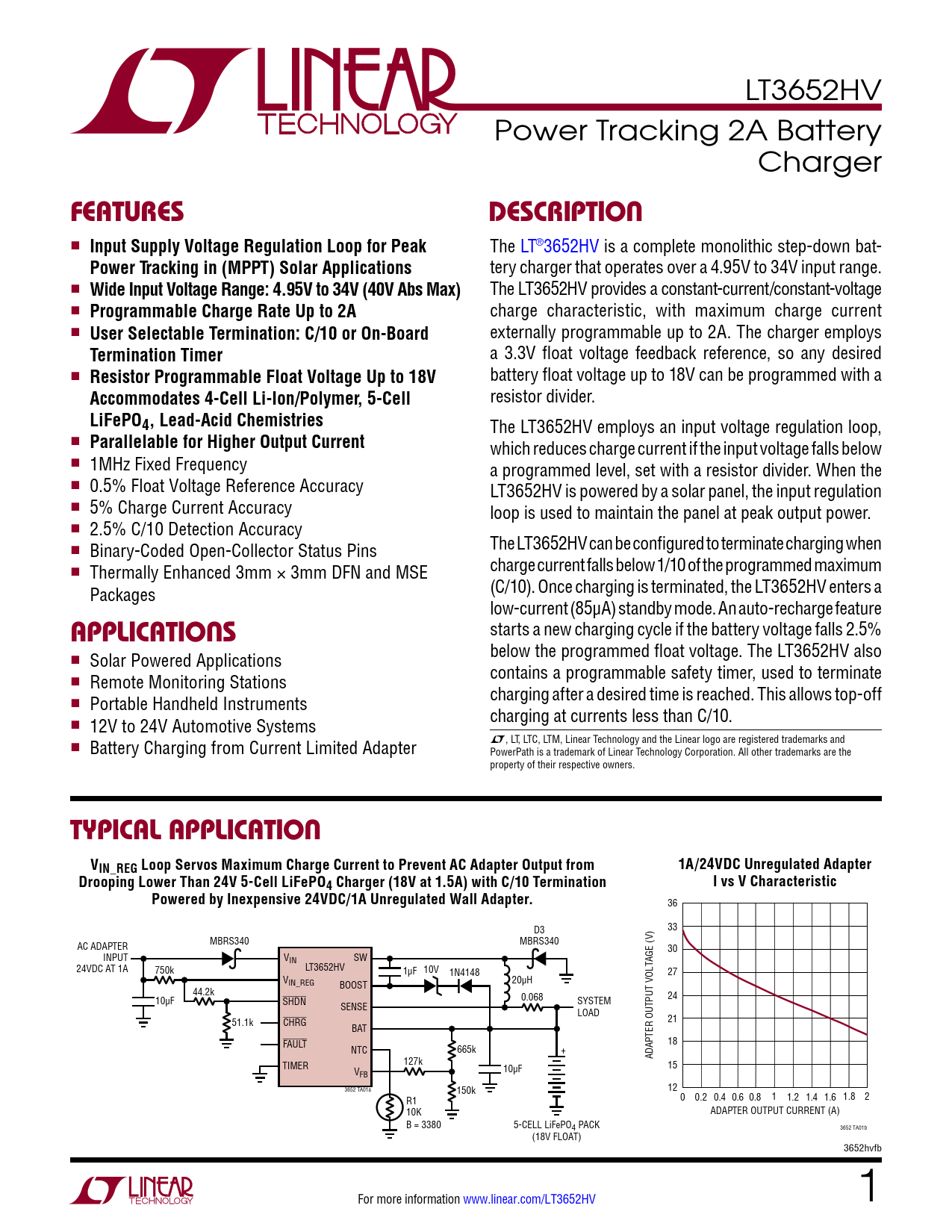

LT3652HV Power Tracking 2A Battery Charger
FEATURES DESCRIPTION
n
Input Supply Voltage Regulation Loop for Peak
The LT®3652HV is a complete monolithic step-down bat-
Power Tracking in (MPPT) Solar Applications
tery charger that operates over a 4.95V to 34V input range. n
Wide Input Voltage Range: 4.95V to 34V (40V Abs Max)
The LT3652HV provides a constant-current/constant-voltage n
Programmable Charge Rate Up to 2A
charge characteristic, with maximum charge current n
User Selectable Termination: C/10 or On-Board
external y programmable up to 2A. The charger employs
Termination Timer
a 3.3V float voltage feedback reference, so any desired n
Resistor Programmable Float Voltage Up to 18V
battery float voltage up to 18V can be programmed with a
Accommodates 4-Cell Li-Ion/Polymer, 5-Cell
resistor divider.
LiFePO4, Lead-Acid Chemistries
The LT3652HV employs an input voltage regulation loop, n
Parallelable for Higher Output Current
which reduces charge current if the input voltage falls below n 1MHz Fixed Frequency a programmed level, set with a resistor divider. When the n 0.5% Float Voltage Reference Accuracy LT3652HV is powered by a solar panel, the input regulation n 5% Charge Current Accuracy loop is used to maintain the panel at peak output power. n 2.5% C/10 Detection Accuracy n The LT3652HV can be configured to terminate charging when Binary-Coded Open-Collector Status Pins n charge current falls below 1/10 of the programmed maximum Thermally Enhanced 3mm × 3mm DFN and MSE (C/10). Once charging is terminated, the LT3652HV enters a Packages low-current (85µA) standby mode. An auto-recharge feature starts a new charging cycle if the battery voltage falls 2.5%
APPLICATIONS
below the programmed float voltage. The LT3652HV also n Solar Powered Applications contains a programmable safety timer, used to terminate n Remote Monitoring Stations charging after a desired time is reached. This al ows top-off n Portable Handheld Instruments charging at currents less than C/10. n 12V to 24V Automotive Systems n Battery Charging from Current Limited Adapter L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and PowerPath is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
TYPICAL APPLICATION VIN_REG Loop Servos Maximum Charge Current to Prevent AC Adapter Output from 1A/24VDC Unregulated Adapter Drooping Lower Than 24V 5-Cell LiFePO4 Charger (18V at 1.5A) with C/10 Termination I vs V Characteristic Powered by Inexpensive 24VDC/1A Unregulated Wall Adapter.
