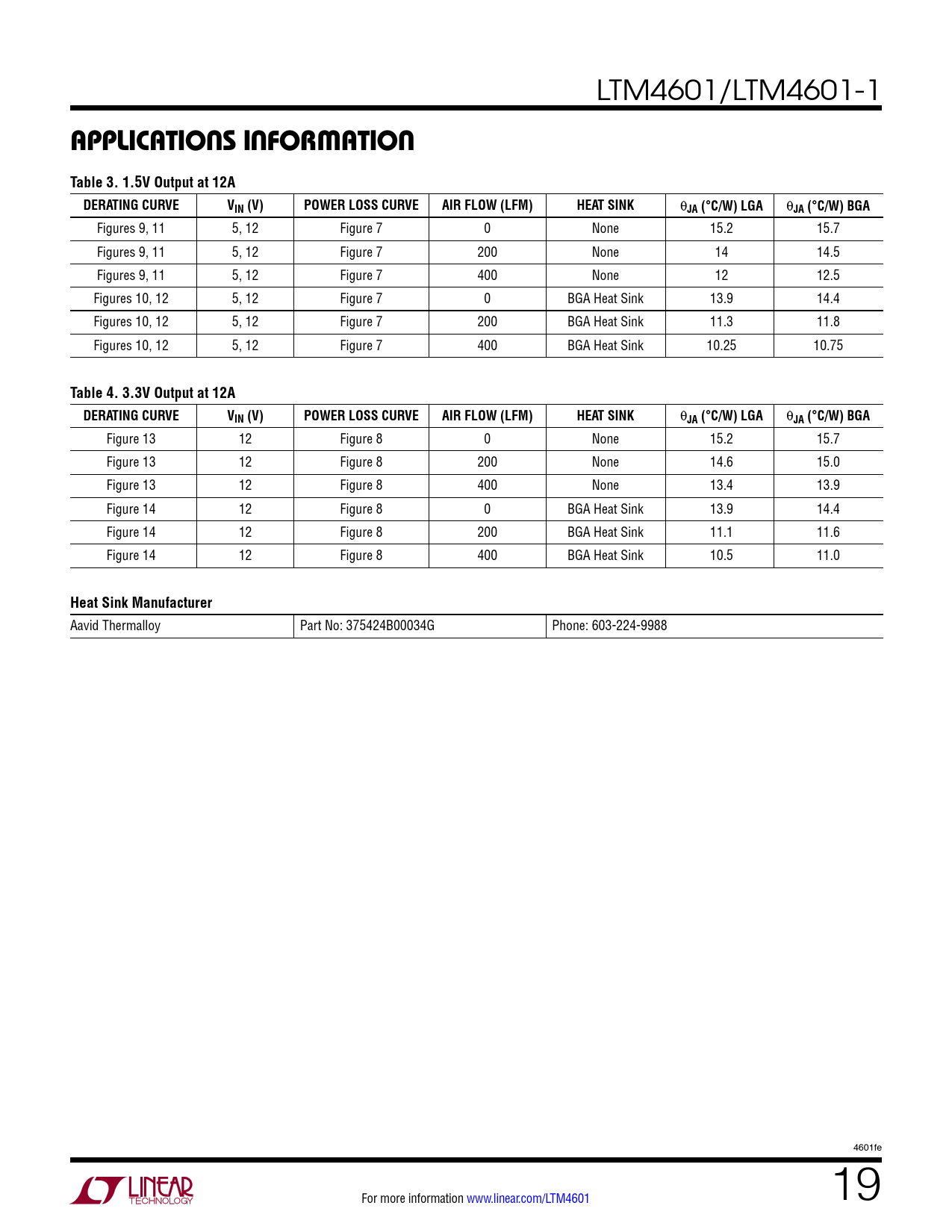

LTM4601/LTM4601-1
applicaTions inForMaTion Table 3. 1.5V Output at 12A DERATING CURVE VIN (V) POWER LOSS CURVE AIR FLOW (LFM) HEAT SINK
θ
JA (°C/W) LGA
θ
JA (°C/W) BGA
Figures 9, 11 5, 12 Figure 7 0 None 15.2 15.7 Figures 9, 11 5, 12 Figure 7 200 None 14 14.5 Figures 9, 11 5, 12 Figure 7 400 None 12 12.5 Figures 10, 12 5, 12 Figure 7 0 BGA Heat Sink 13.9 14.4 Figures 10, 12 5, 12 Figure 7 200 BGA Heat Sink 11.3 11.8 Figures 10, 12 5, 12 Figure 7 400 BGA Heat Sink 10.25 10.75
Table 4. 3.3V Output at 12A DERATING CURVE VIN (V) POWER LOSS CURVE AIR FLOW (LFM) HEAT SINK
θ
JA (°C/W) LGA
θ
JA (°C/W) BGA
Figure 13 12 Figure 8 0 None 15.2 15.7 Figure 13 12 Figure 8 200 None 14.6 15.0 Figure 13 12 Figure 8 400 None 13.4 13.9 Figure 14 12 Figure 8 0 BGA Heat Sink 13.9 14.4 Figure 14 12 Figure 8 200 BGA Heat Sink 11.1 11.6 Figure 14 12 Figure 8 400 BGA Heat Sink 10.5 11.0
Heat Sink Manufacturer
Aavid Thermalloy Part No: 375424B00034G Phone: 603-224-9988 4601fe For more information www.linear.com/LTM4601 19 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Block Diagram Decoupling Requirements Operation Applications Information Typical Applications Package Description Revision History Package Photo Related Parts
