Datasheet AD680 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Bandgap, Low Power 2.5v Reference |
| 页数 / 页 | 12 / 4 — AD680. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. OUTPUT … |
| 修订版 | H |
| 文件格式/大小 | PDF / 402 Kb |
| 文件语言 | 英语 |

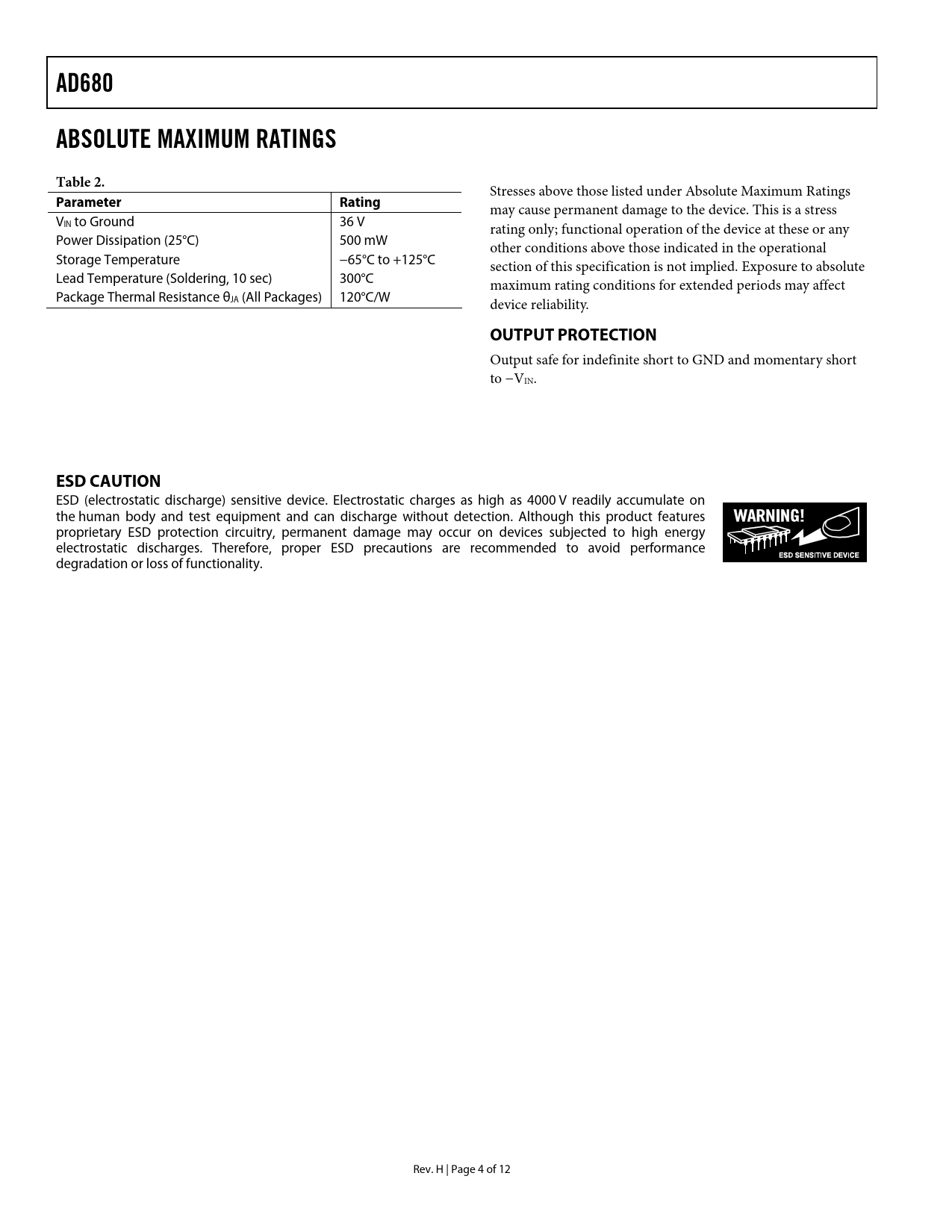

AD680. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. OUTPUT PROTECTION. ESD CAUTION
该数据表的模型线
文件文字版本
AD680 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress VIN to Ground 36 V rating only; functional operation of the device at these or any Power Dissipation (25°C) 500 mW other conditions above those indicated in the operational Storage Temperature −65°C to +125°C section of this specification is not implied. Exposure to absolute Lead Temperature (Soldering, 10 sec) 300°C maximum rating conditions for extended periods may affect Package Thermal Resistance θJA (All Packages) 120°C/W device reliability.
OUTPUT PROTECTION
Output safe for indefinite short to GND and momentary short to −VIN.
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. H | Page 4 of 12 Document Outline FEATURES GENERAL DESCRIPTION CONNECTION DIAGRAMS PRODUCT HIGHLIGHTS SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS OUTPUT PROTECTION ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS THEORY OF OPERATION APPLYING THE AD680 NOISE PERFORMANCE TURN-ON TIME DYNAMIC PERFORMANCE LOAD REGULATION TEMPERATURE PERFORMANCE TEMPERATURE OUTPUT PIN DIFFERENTIAL TEMPERATURE TRANSDUCER LOW POWER, LOW VOLTAGE REFERENCE FOR DATA CONVERTERS 4.5 V REFERENCE FROM A 5 V SUPPLY VOLTAGE REGULATOR FOR PORTABLE EQUIPMENT OUTLINE DIMENSIONS ORDERING GUIDE
