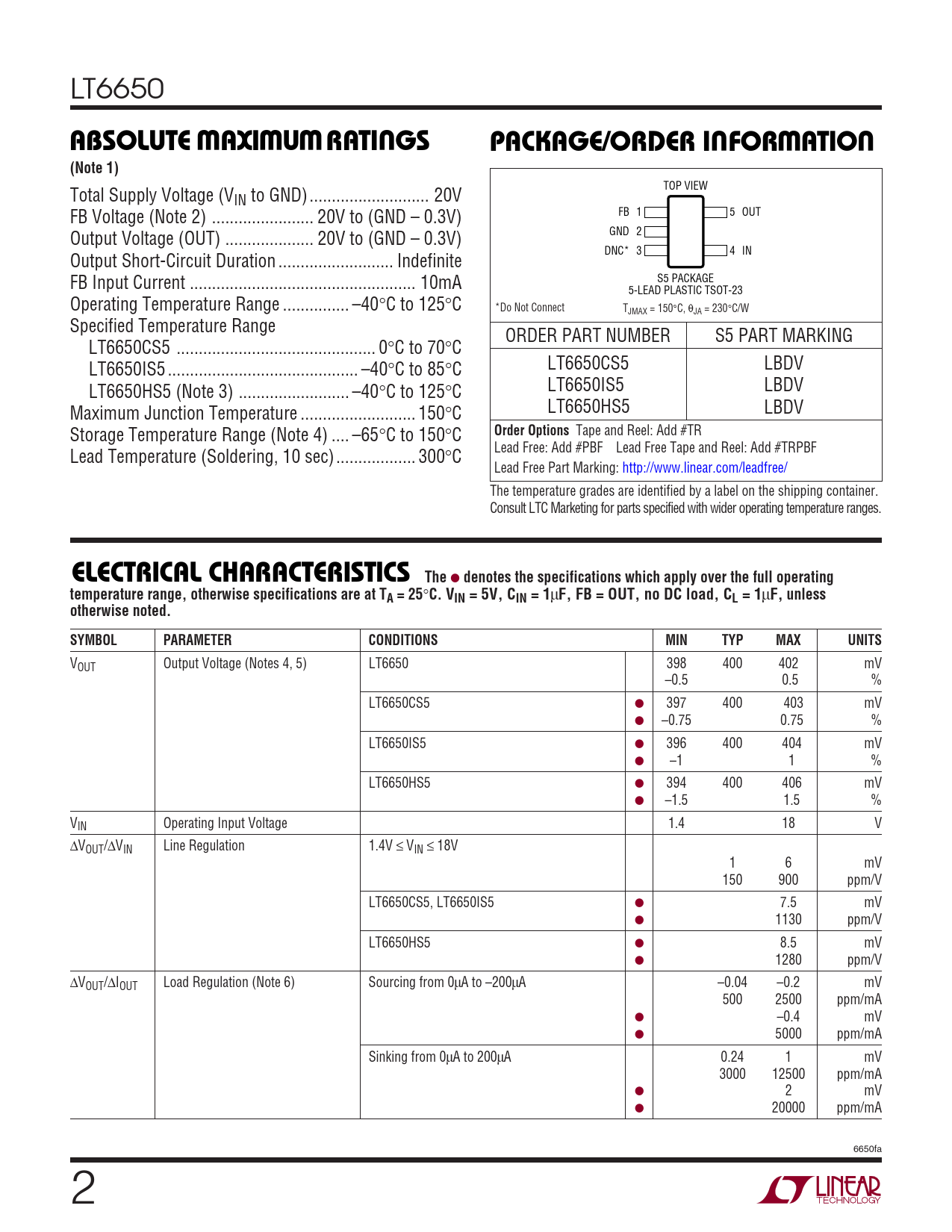

LT6650
W W W U U W U ABSOLUTE AXI U RATI GS PACKAGE/ORDER I FOR ATIO (Note 1)
TOP VIEW Total Supply Voltage (VIN to GND)... 20V FB Voltage (Note 2) ... 20V to (GND – 0.3V) FB 1 5 OUT Output Voltage (OUT) .. 20V to (GND – 0.3V) GND 2 DNC* 3 4 IN Output Short-Circuit Duration .. Indefinite FB Input Current ... 10mA S5 PACKAGE 5-LEAD PLASTIC TSOT-23 Operating Temperature Range ... –40°C to 125°C *Do Not Connect TJMAX = 150°C, θJA = 230°C/W Specified Temperature Range ORDER PART NUMBER S5 PART MARKING LT6650CS5 ... 0°C to 70°C LT6650IS5 ... –40°C to 85°C LT6650CS5 LBDV LT6650HS5 (Note 3) ... –40°C to 125°C LT6650IS5 LBDV Maximum Junction Temperature .. 150°C LT6650HS5 LBDV Storage Temperature Range (Note 4) .. –65°C to 150°C
Order Options
Tape and Reel: Add #TR Lead Free: Add #PBF Lead Free Tape and Reel: Add #TRPBF Lead Temperature (Soldering, 10 sec).. 300°C Lead Free Part Marking: http://www.linear.com/leadfree/ The temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VIN = 5V, CIN = 1
µ
F, FB = OUT, no DC load, CL = 1
µ
F, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOUT Output Voltage (Notes 4, 5) LT6650 398 400 402 mV –0.5 0.5 % LT6650CS5 ● 397 400 403 mV ● –0.75 0.75 % LT6650IS5 ● 396 400 404 mV ● –1 1 % LT6650HS5 ● 394 400 406 mV ● –1.5 1.5 % VIN Operating Input Voltage 1.4 18 V ∆VOUT/∆VIN Line Regulation 1.4V ≤ VIN ≤ 18V 1 6 mV 150 900 ppm/V LT6650CS5, LT6650IS5 ● 7.5 mV ● 1130 ppm/V LT6650HS5 ● 8.5 mV ● 1280 ppm/V ∆VOUT/∆IOUT Load Regulation (Note 6) Sourcing from 0µA to –200µA –0.04 –0.2 mV 500 2500 ppm/mA ● –0.4 mV ● 5000 ppm/mA Sinking from 0µA to 200µA 0.24 1 mV 3000 12500 ppm/mA ● 2 mV ● 20000 ppm/mA 6650fa 2
