Datasheet ATtiny22, ATtiny22L - Preliminary (Atmel) - 4

制造商Atmel
描述8-bit AVR Microcontroller with 2K Bytes of In-System Programmable Flash
页数 / 页59 / 4 — Figure 2. Architectural Overview. Figure 3. ATtiny22/22L
文件格式/大小PDF / 1.1 Mb
文件语言英语

Figure 2. Architectural Overview. Figure 3. ATtiny22/22L

Figure 2 Architectural Overview Figure 3 ATtiny22/22L

该数据表的模型线

文件文字版本

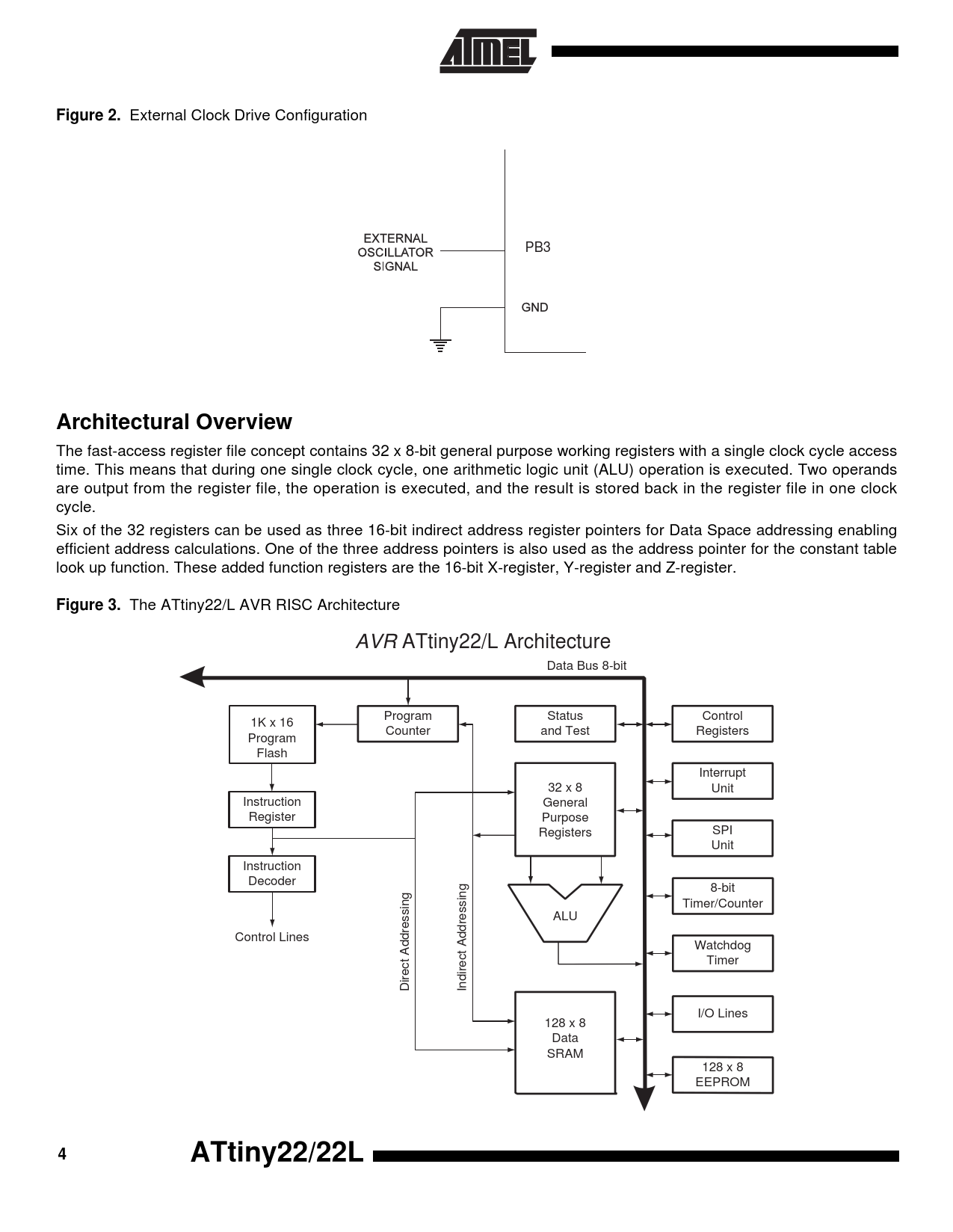

Figure 2.
External Clock Drive Configuration PB3
Architectural Overview
The fast-access register file concept contains 32 x 8-bit general purpose working registers with a single clock cycle access time. This means that during one single clock cycle, one arithmetic logic unit (ALU) operation is executed. Two operands are output from the register file, the operation is executed, and the result is stored back in the register file in one clock cycle. Six of the 32 registers can be used as three 16-bit indirect address register pointers for Data Space addressing enabling efficient address calculations. One of the three address pointers is also used as the address pointer for the constant table look up function. These added function registers are the 16-bit X-register, Y-register and Z-register.
Figure 3.
The ATtiny22/L AVR RISC Architecture AVR ATtiny22/L Architecture Data Bus 8-bit Program Status Control 1K x 16 Counter and Test Registers Program Flash Interrupt 32 x 8 Unit Instruction General Register Purpose Registers SPI Unit Instruction Decoder 8-bit Timer/Counter ALU Control Lines Watchdog Timer Direct Addressing Indirect Addressing I/O Lines 128 x 8 Data SRAM 128 x 8 EEPROM
