Datasheet MBRF2035 - MBRF20100 (Taiwan Semiconductor) - 2
| 制造商 | Taiwan Semiconductor |
| 描述 | 20A, 35V - 100V Isolated Schottky Barrier Rectifiers |
| 页数 / 页 | 4 / 2 — MBRF2035 - MBRF20100. ORDERING INFORMATION. PART NO. PACKING CODE. … |
| 文件格式/大小 | PDF / 200 Kb |
| 文件语言 | 英语 |
MBRF2035 - MBRF20100. ORDERING INFORMATION. PART NO. PACKING CODE. PACKAGE. PACKING. SUFFIX. SUFFIX (*). EXAMPLE. EXAMPLE P/N. DESCRIPTION
该数据表的模型线
文件文字版本

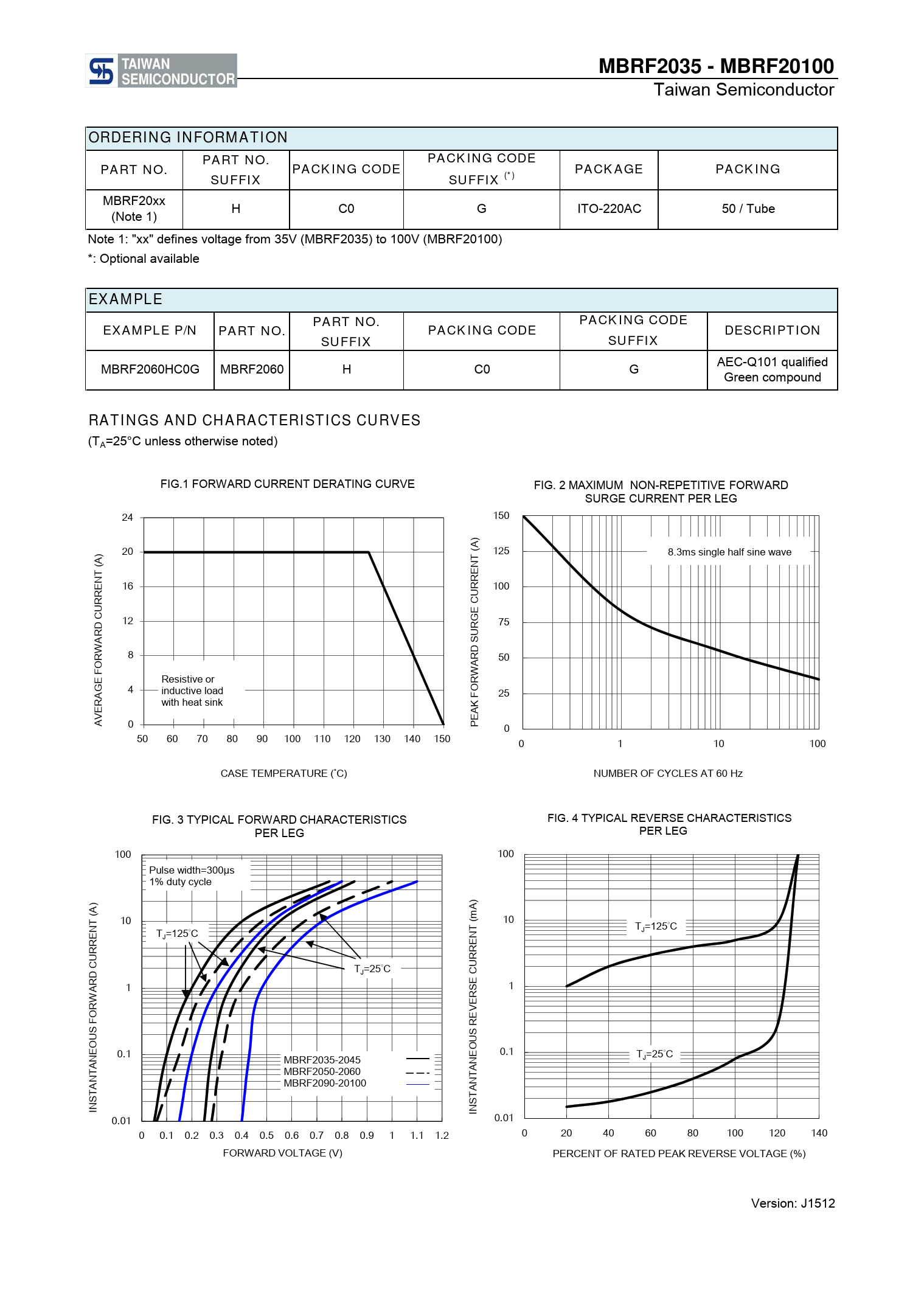

MBRF2035 - MBRF20100
Taiwan Semiconductor CREAT BY ART
ORDERING INFORMATION PART NO. PACKING CODE PART NO. PACKING CODE PACKAGE PACKING SUFFIX SUFFIX (*)
MBRF20xx H C0 G ITO-220AC 50 / Tube (Note 1) Note 1: "xx" defines voltage from 35V (MBRF2035) to 100V (MBRF20100) *: Optional available
EXAMPLE PACKING CODE EXAMPLE P/N PART NO. PART NO. PACKING CODE DESCRIPTION SUFFIX SUFFIX
AEC-Q101 qualified MBRF2060HC0G MBRF2060 H C0 G Green compound
RATINGS AND CHARACTERISTICS CURVES
(TA=25°C unless otherwise noted) FIG.1 FORWARD CURRENT DERATING CURVE FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT PER LEG 24 150 ) (A ) 20 125 T 8.3ms single half sine wave (A T EN R EN 16 R 100 R U R C U E C 12 G D 75 R AR SU W D R 8 R 50 A W E FO Resistive or R 4 AG inductive load 25 with heat sink AVER 0 PEAK FO 0 50 60 70 80 90 100 110 120 130 140 150 0 1 10 100 CASE TEMPERATURE (°C) NUMBER OF CYCLES AT 60 Hz FIG. 3 TYPICAL FORWARD CHARACTERISTICS FIG. 4 TYPICAL REVERSE CHARACTERISTICS PER LEG PER LEG 100 100 Pulse width=300μs 1% duty cycle ) A (A 10 (m 10 T NT TJ=125°C NT J=125°C URRE C TJ=25°C CURRE E ARD 1 1 RS E RW V O F RE OUS OUS 0.1 0.1 T NE MBRF2035-2045 NE J=25°C A A T MBRF2050-2060 T N N A MBRF2090-20100 A T T S S IN IN 0.01 0.01 0 20 40 60 80 100 120 140 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 FORWARD VOLTAGE (V) PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Version: J1512
