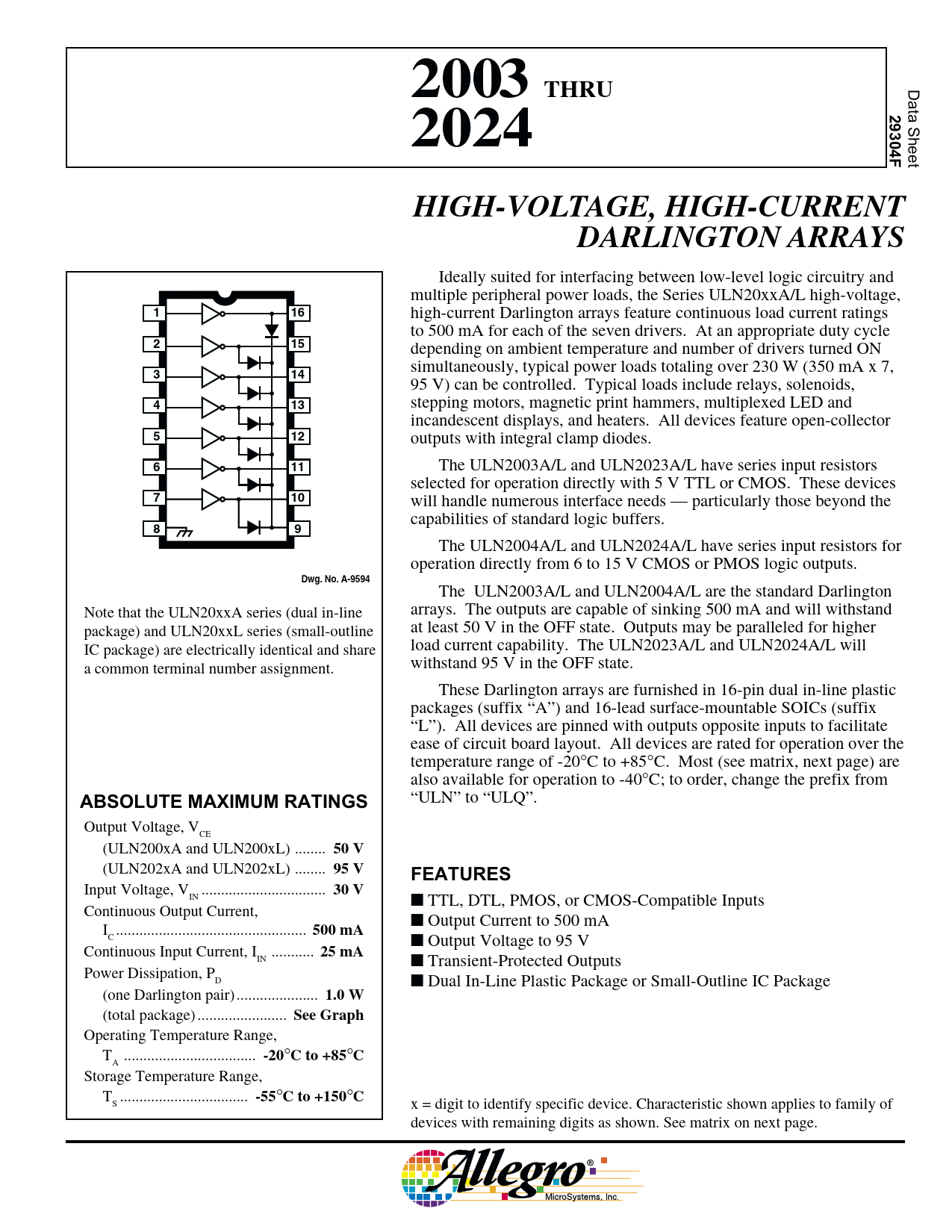

2003 THRU
Data Sheet
2024 29304F HIGH-VOLTAGE, HIGH-CURRENT DARLINGTON ARRAYS
Ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads, the Series ULN20xxA/L high-voltage,
1 16
high-current Darlington arrays feature continuous load current ratings to 500 mA for each of the seven drivers. At an appropriate duty cycle
2 15
depending on ambient temperature and number of drivers turned ON simultaneously, typical power loads totaling over 230 W (350 mA x 7,
3 14
95 V) can be controlled. Typical loads include relays, solenoids,
4 13
stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters. All devices feature open-collector
5 12
outputs with integral clamp diodes.
6 11
The ULN2003A/L and ULN2023A/L have series input resistors selected for operation directly with 5 V TTL or CMOS. These devices
7 10
will handle numerous interface needs — particularly those beyond the capabilities of standard logic buffers.
8 9
The ULN2004A/L and ULN2024A/L have series input resistors for operation directly from 6 to 15 V CMOS or PMOS logic outputs.
Dwg. No. A-9594
The ULN2003A/L and ULN2004A/L are the standard Darlington Note that the ULN20xxA series (dual in-line arrays. The outputs are capable of sinking 500 mA and will withstand at least 50 V in the OFF state. Outputs may be paralleled for higher package) and ULN20xxL series (small-outline load current capability. The ULN2023A/L and ULN2024A/L will IC package) are electrically identical and share withstand 95 V in the OFF state. a common terminal number assignment. These Darlington arrays are furnished in 16-pin dual in-line plastic packages (suffix “A”) and 16-lead surface-mountable SOICs (suffix “L”). All devices are pinned with outputs opposite inputs to facilitate ease of circuit board layout. All devices are rated for operation over the temperature range of -20°C to +85°C. Most (see matrix, next page) are also available for operation to -40°C; to order, change the prefix from “ULN” to “ULQ”.
ABSOLUTE MAXIMUM RATINGS
Output Voltage, VCE (ULN200xA and ULN200xL) ..
50 V
(ULN202xA and ULN202xL) ..
95 V FEATURES
Input Voltage, V ..
30 V
IN ■ TTL, DTL, PMOS, or CMOS-Compatible Inputs Continuous Output Current, ■ Output Current to 500 mA I ...
500 mA
C ■ Output Voltage to 95 V Continuous Input Current, I ...
25 mA
IN ■ Transient-Protected Outputs Power Dissipation, PD ■ Dual In-Line Plastic Package or Small-Outline IC Package (one Darlington pair) ...
1.0 W
(total package) ...
See Graph
Operating Temperature Range, T ..
-20
°
C to +85
°
C
A Storage Temperature Range, T ...
-55
°
C to +150
°
C
S x = digit to identify specific device. Characteristic shown applies to family of devices with remaining digits as shown. See matrix on next page.
