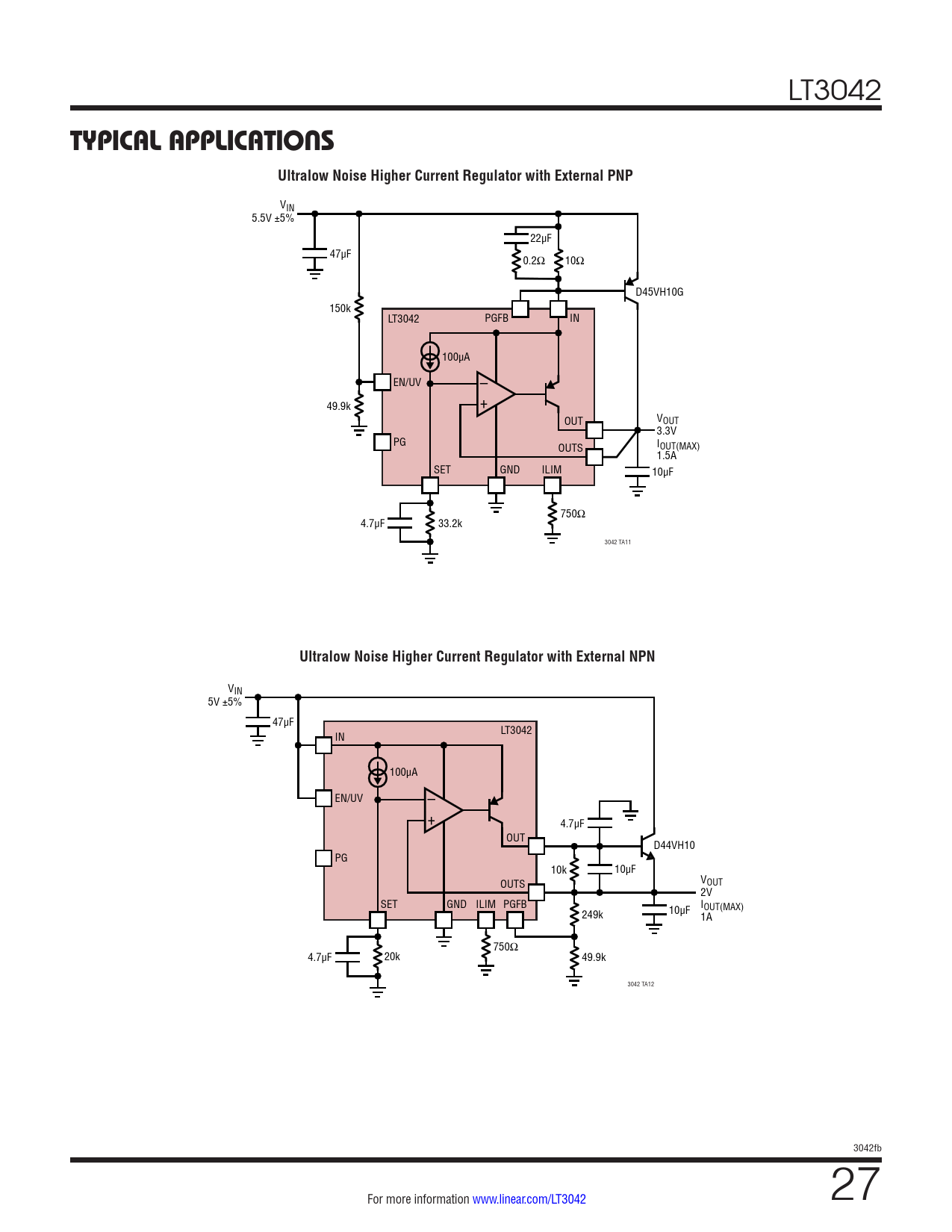

TYPICAL APPLICATIONS. Ultralow Noise Higher Current Regulator with External PNP
该数据表的模型线
- LT3042EDD#PBF LT3042EDD#PBF LT3042EDD#TRPBF LT3042EDD#TRPBF LT3042EMSE#PBF LT3042EMSE#PBF LT3042EMSE#TRPBF LT3042EMSE#TRPBF LT3042HDD#PBF LT3042HDD#PBF LT3042HDD#TRPBF LT3042HDD#TRPBF LT3042HMSE#PBF LT3042HMSE#PBF LT3042HMSE#TRPBF LT3042HMSE#TRPBF LT3042IDD#PBF LT3042IDD#PBF LT3042IDD#TRPBF LT3042IDD#TRPBF LT3042IMSE#PBF LT3042IMSE#PBF LT3042IMSE#TRPBF LT3042IMSE#TRPBF LT3042MPDD#PBF LT3042MPDD#PBF LT3042MPDD#TRPBF LT3042MPDD#TRPBF LT3042MPMSE#PBF LT3042MPMSE#PBF LT3042MPMSE#TRPBF LT3042MPMSE#TRPBF
文件文字版本
LT3042
TYPICAL APPLICATIONS Ultralow Noise Higher Current Regulator with External PNP
VIN 5.5V ±5% 22µF 47µF 0.2Ω 10Ω D45VH10G 150k LT3042 PGFB IN 100µA – EN/UV + 49.9k OUT VOUT 3.3V PG I OUTS OUT(MAX) 1.5A SET GND ILIM 10µF 750Ω 4.7µF 33.2k 3042 TA11
Ultralow Noise Higher Current Regulator with External NPN
VIN 5V ±5% 47µF LT3042 IN 100µA – EN/UV + 4.7µF OUT D44VH10 PG 10k 10µF V OUTS OUT 2V SET GND ILIM PGFB 10µF IOUT(MAX) 249k 1A 750Ω 4.7µF 20k 49.9k 3042 TA12 3042fb For more information www.linear.com/LT3042 27 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
